Cone cable gland, PG thread, cutting ring, nickel-plated

Item no. 2082632 | EAN 4012195800835

Product description

Product description

Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430.

Pressure rings made of electrogalvanised and transparently passivated steel.

NR/SBR sealing ring.

Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.

With cutting ring.

* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread Pg

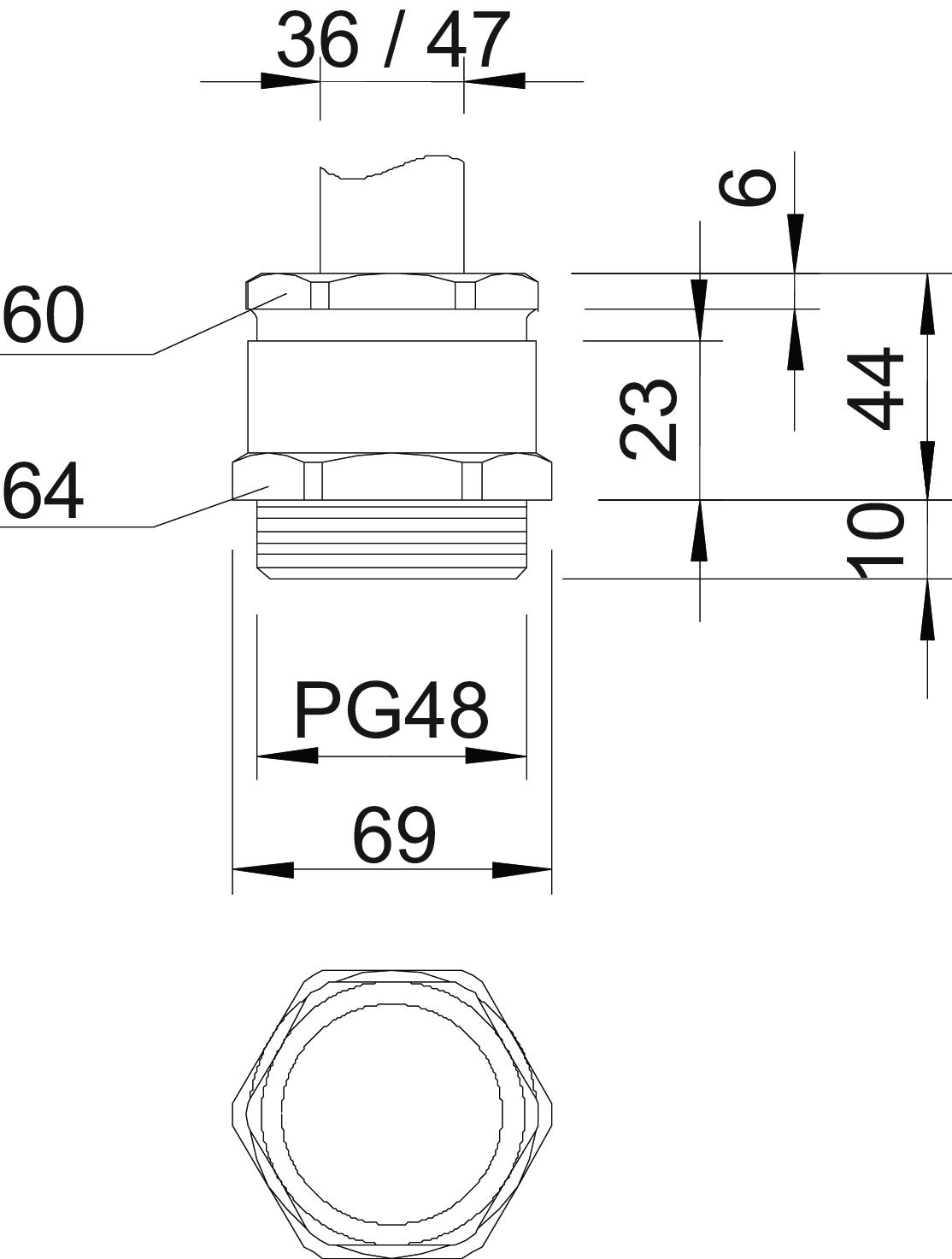

Technical data

Technical data

Bend protection no
Dimension PG48
Dimension E 69 mm
Dimension L 44 mm
Dimension L max. 44 mm
Dimension L1 10 mm
Dimension L2 23 mm
Dimension L3 6 mm
explosion-proof no
Fibre-glass reinforced no
Flat cable gland no
For Ex zone Without
Halogen-free no
Impact-resistant no
Material Brass
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Protection rating IP54
Sealing area D, max. 47 mm
Sealing area D, min. 36 mm
Sealing insert, multiple no
Strain relief option no
Surface Nickel-plated
Thread Pg 48
Thread length 10 mm
Thread type PG
Type of seal Cuttable sealing ring
WAF 1 64 mm
WAF 2 60 mm
With locknut no
All types

All types

Types Thread Item no. Quantity SSU
162 MS PG11 Pg 11 2082500
50 piece
162 MS PG 9 Pg 9 2082519
50 piece
162 MS PG13.5 Pg 13,5 2082527
50 piece
162 MS PG16 Pg 16 2082543
25 piece
162 MS PG21 Pg 21 2082578
25 piece
162 MS PG29 Pg 29 2082594
10 piece
162 MS PG36 Pg 36 2082616
10 piece
162 MS PG 7 Pg 7 2082620
50 piece
162 MS PG42 Pg 42 2082624
5 piece
162 MS PG48 Pg 48 2082632
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Locknut, PG thread Locknut, PG thread 169 MS PG48 2091488
25 piece
