Cone cable gland, PG thread, cutting ring, nickel-plated Pg 7

Cone cable gland, PG thread, cutting ring, nickel-plated

Item no. 2082620 | EAN 4012196600809

Item no. / Types

Thread

Product description

Product description

Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel. NR/SBR sealing ring.

Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.

With cutting ring.

* Prices according to DEL notation.

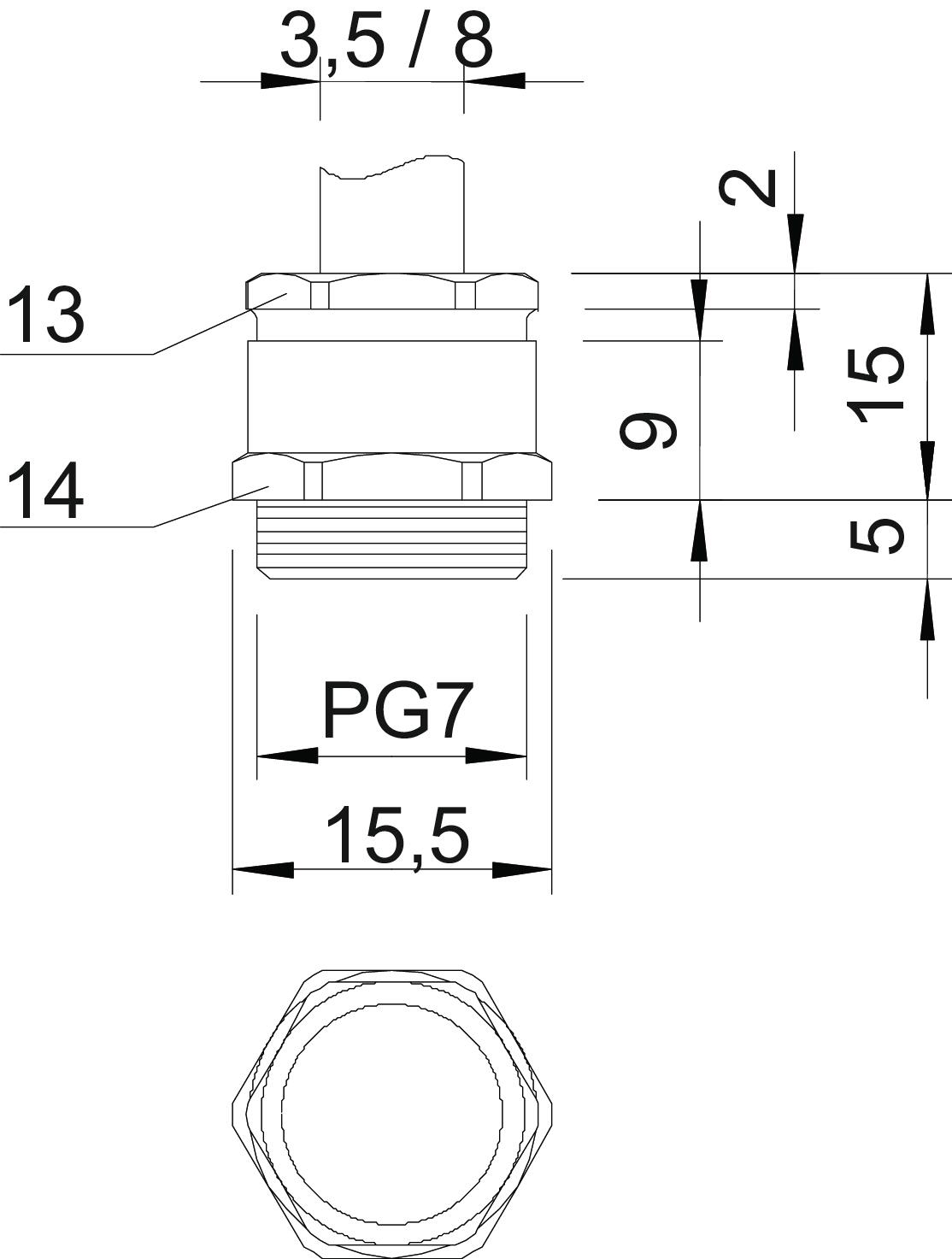

Technical data

Technical data

Bend protection	no
Dimension	PG7
Dimension E	15,5 mm
Dimension L	15 mm
Dimension L max.	15 mm
Dimension L1	5 mm
Dimension L2	9 mm
Dimension L3	2 mm
explosion-proof	no
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
Halogen-free	no
Impact-resistant	no

Material	Brass
Protection rating	IP54
Sealing area D, max.	8 mm
Sealing area D, min.	3,5 mm
Sealing insert, multiple	no
Strain relief option	no
Surface	Nickel-plated
Thread	Pg 7
Thread length	5 mm
Thread type	PG
Type of seal	Cuttable sealing ring
WAF 1	14 mm
WAF 2	13 mm
With locknut	no

All types

All types

Types	Thread	Item no.	Quantity	SSU
162 MS PG11	Pg 11	2082500	piece	50 piece
162 MS PG 9	Pg 9	2082519	piece	50 piece
162 MS PG13.5	Pg 13,5	2082527	piece	50 piece
162 MS PG16	Pg 16	2082543	piece	25 piece
162 MS PG21	Pg 21	2082578	piece	25 piece
162 MS PG29	Pg 29	2082594	piece	10 piece
162 MS PG36	Pg 36	2082616	piece	10 piece
162 MS PG 7	Pg 7	2082620	piece	50 piece
162 MS PG42	Pg 42	2082624	piece	5 piece
162 MS PG48	Pg 48	2082632	piece	5 piece
