Product description
Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430.
Pressure rings made of electrogalvanised and transparently passivated steel.
NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
With cutting ring.
* Prices according to DEL notation.
- Technical data
-
Technical data

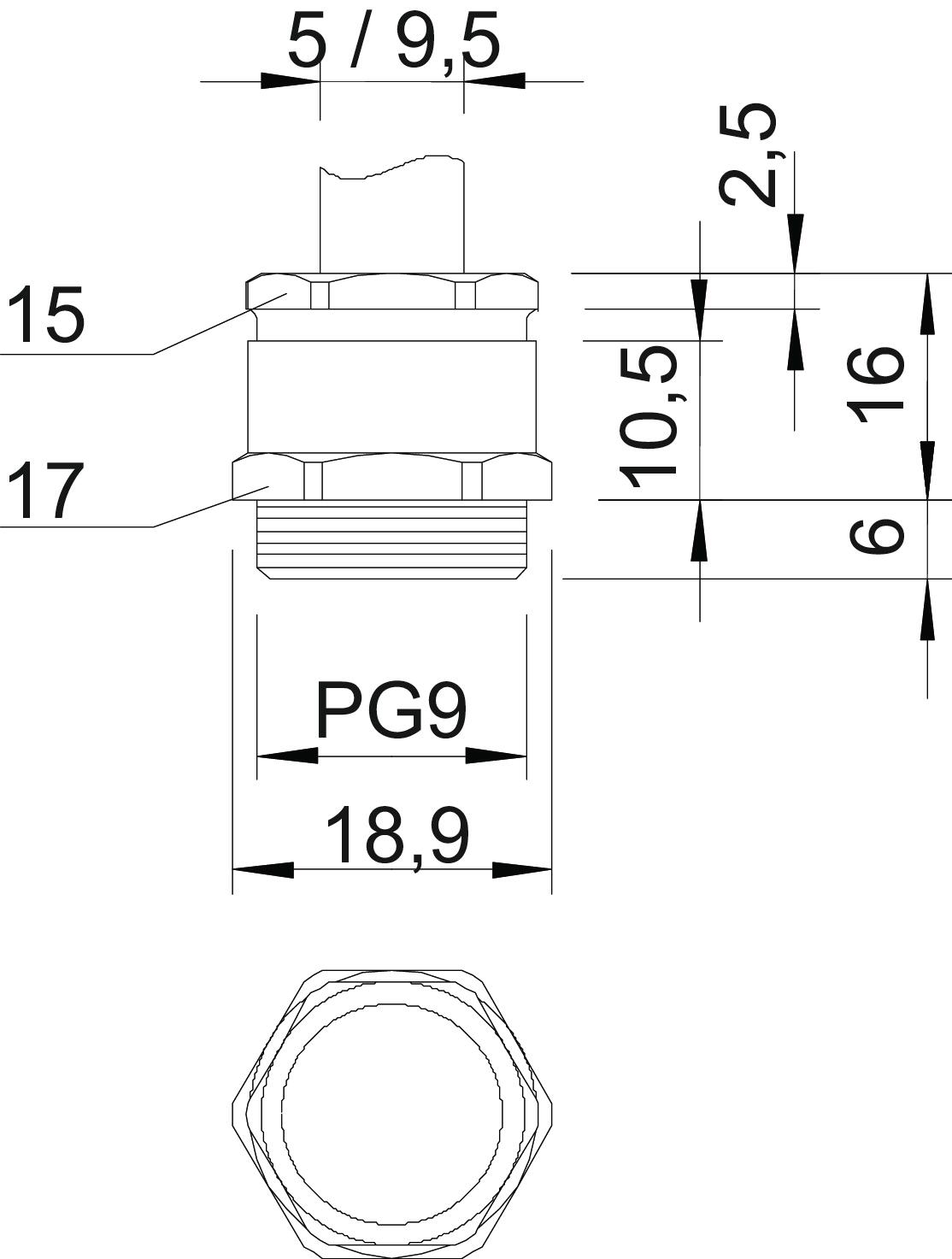

Bend protection no Dimension PG9 Dimension E 18,9 mm Dimension L 16 mm Dimension L max. 16 mm Dimension L1 6 mm Dimension L2 10,5 mm Dimension L3 2,5 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Protection rating IP54 Sealing area D, max. 9,5 mm Sealing area D, min. 5 mm Sealing insert, multiple no Strain relief option no Surface Nickel-plated Thread Pg 9 Thread length 6 mm Thread type PG Type of seal Cuttable sealing ring WAF 1 17 mm WAF 2 15 mm With locknut no - All types
- Downloads
-
Data sheet 162 MS PG 9 / 2082519 , 0.21MB , pdfDeclaration of conformity 162 MS PG 9 / 2082519 , 0.05MB , pdfREACH Declaration of conformity 162 MS PG 9 / 2082519 , 0.12MB , pdfRoHS Declaration of conformity 162 MS PG 9 / 2082519 , 0.12MB , pdf
