- Product description
-

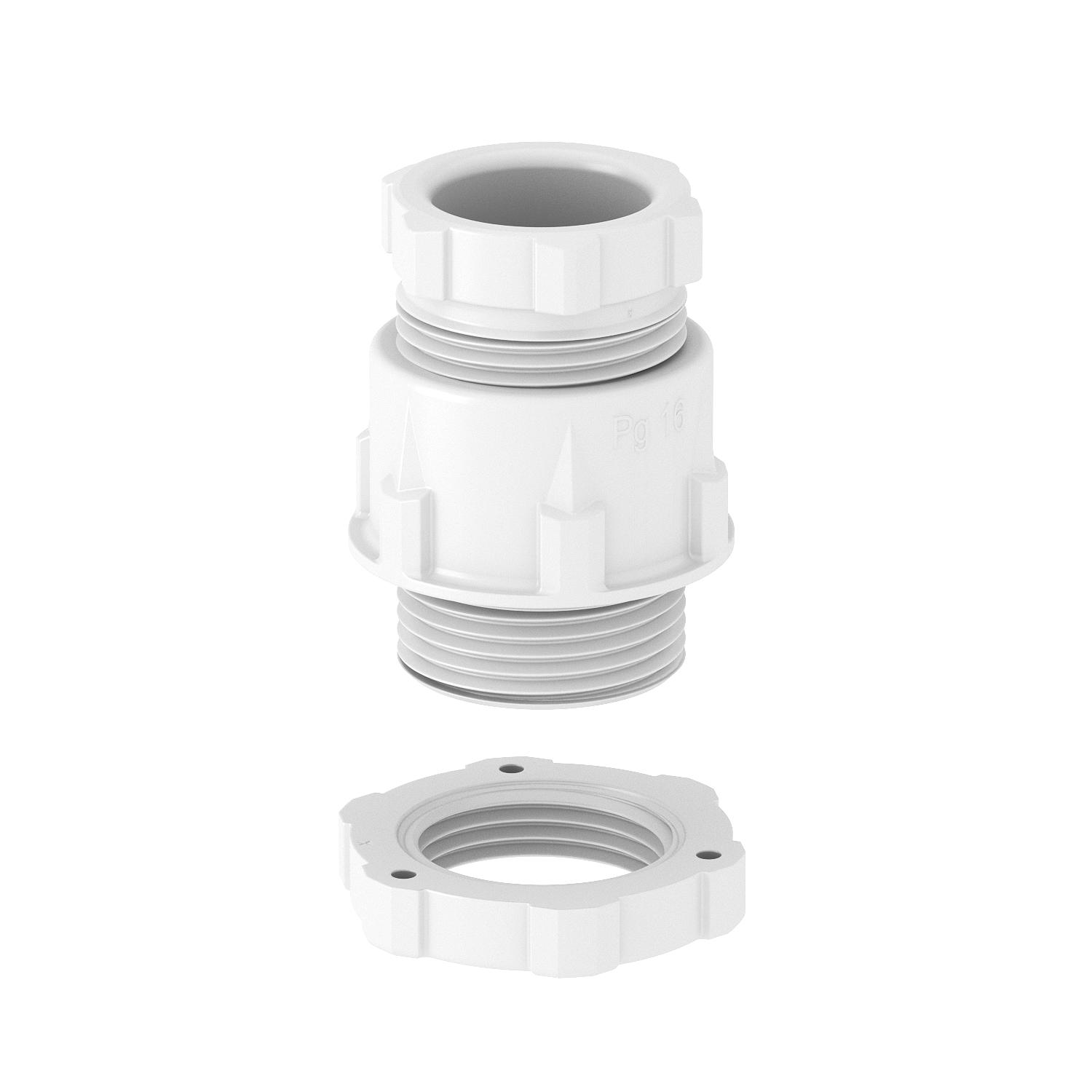

Product descriptionStandard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring
Pg connection thread to DIN 40430
Protection rating: With connection thread sealing ring IP65, without connection thread sealing ring IP54.
Impact-resistant
- Technical data
-
Technical data

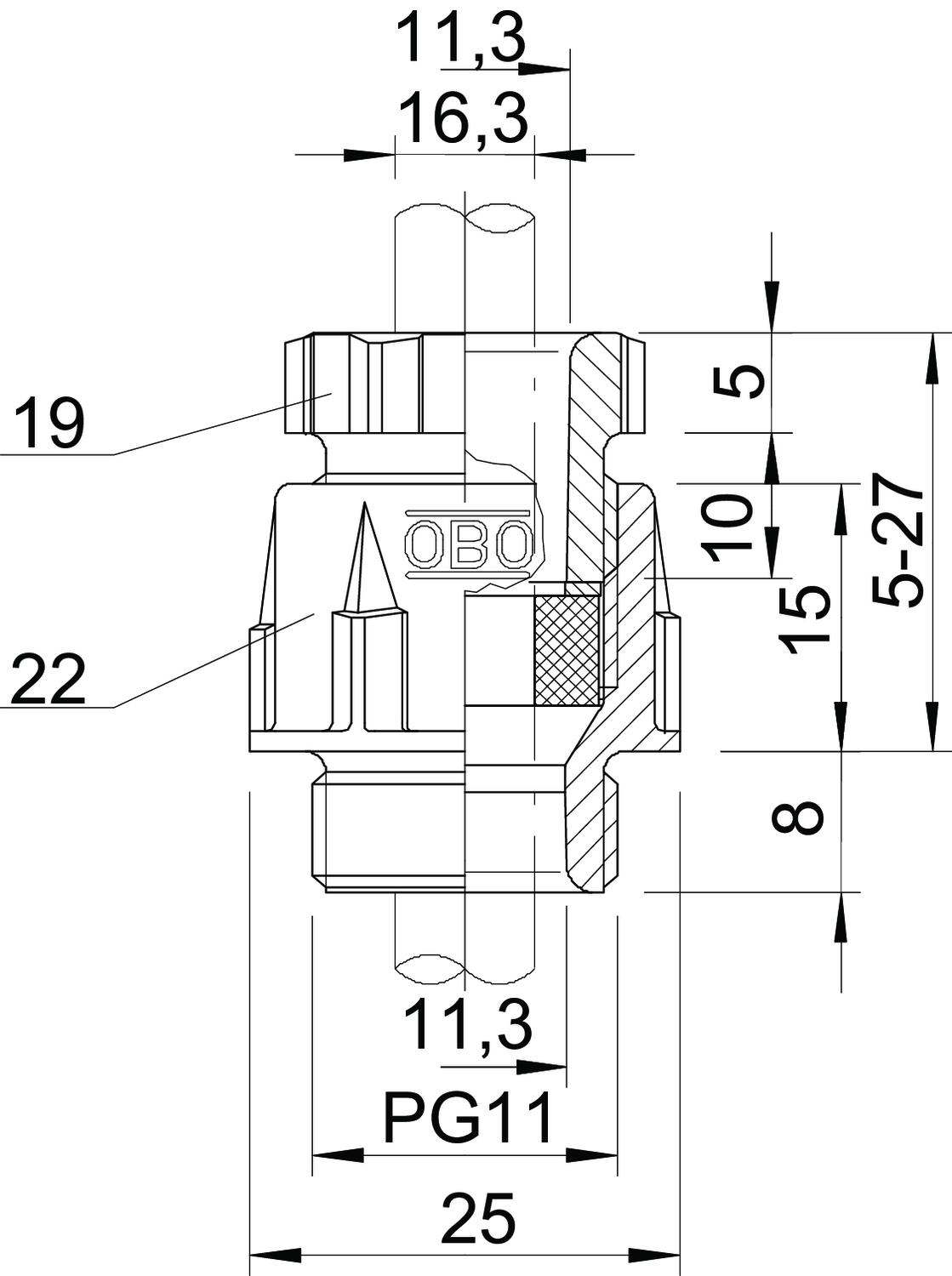

Bend protection no Colour Light grey; RAL 7035 Dimension PG11 Dimension D2 25 mm Dimension D3 11,3 mm Dimension D4 11,3 mm Dimension E1 (mm) 25 mm Dimension E2 11,3 mm Dimension E3 26 mm Dimension L max. 27 mm Dimension L min. 5 mm Dimension L1 8 mm Dimension L2 15 mm Dimension L3 5 mm Dimension L4 10 mm explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Material Polystyrene Nominal thread size 11 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP65 Sealing area D, max. 10 mm Sealing area D, min. 5,5 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread Pg 11 Thread type PG Type of seal Sealing ring Version for Straight WAF 1 22 mm WAF 2 19 mm WAF 3 24 mm With locknut no - All types
- Downloads
-
Data sheet 106+PG11 MG LGR / 2038432 , 0.24MB , pdfEU declaration of conformity 106+PG11 MG LGR / 2038432 , 0.13MB , pdf
