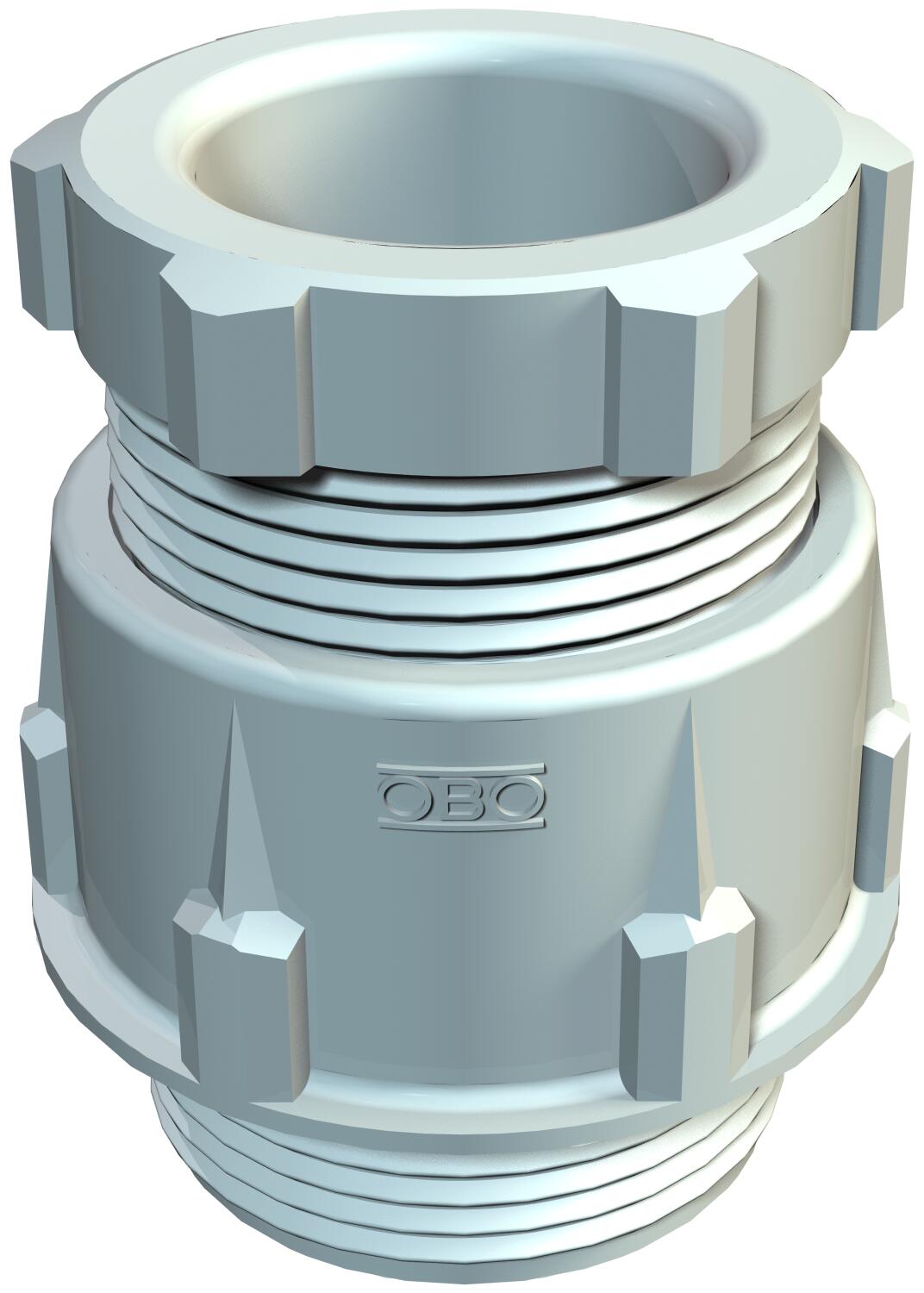

Cone cable gland, PG thread, light grey
Item no. 2036134 | EAN 4012195172390
- Product description
-
Product descriptionStandard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.
PG connection thread in accordance with DIN 40430.
Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension PG13,5 Dimension D1 13 mm Dimension D2 27 mm Dimension D3 13,4 mm Dimension D4 13,5 mm Dimension G Pg13,5 mm Dimension L max. 28 mm Dimension L1 9 mm Dimension L2 16 mm Dimension L3 5 mm Dimension L4 10,8 mm explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 37 mm Impact-resistant no Length 27 mm Material Polystyrene Nominal thread size 13,5 Protection rating IP65 Sealing area D, max. 13 mm Sealing area D, min. 9 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread Pg 13,5 Thread length 9 mm Thread type PG Type of seal Sealing ring Version for Straight WAF 1 24 mm WAF 2 21 mm Width 27 mm With locknut no - All types
