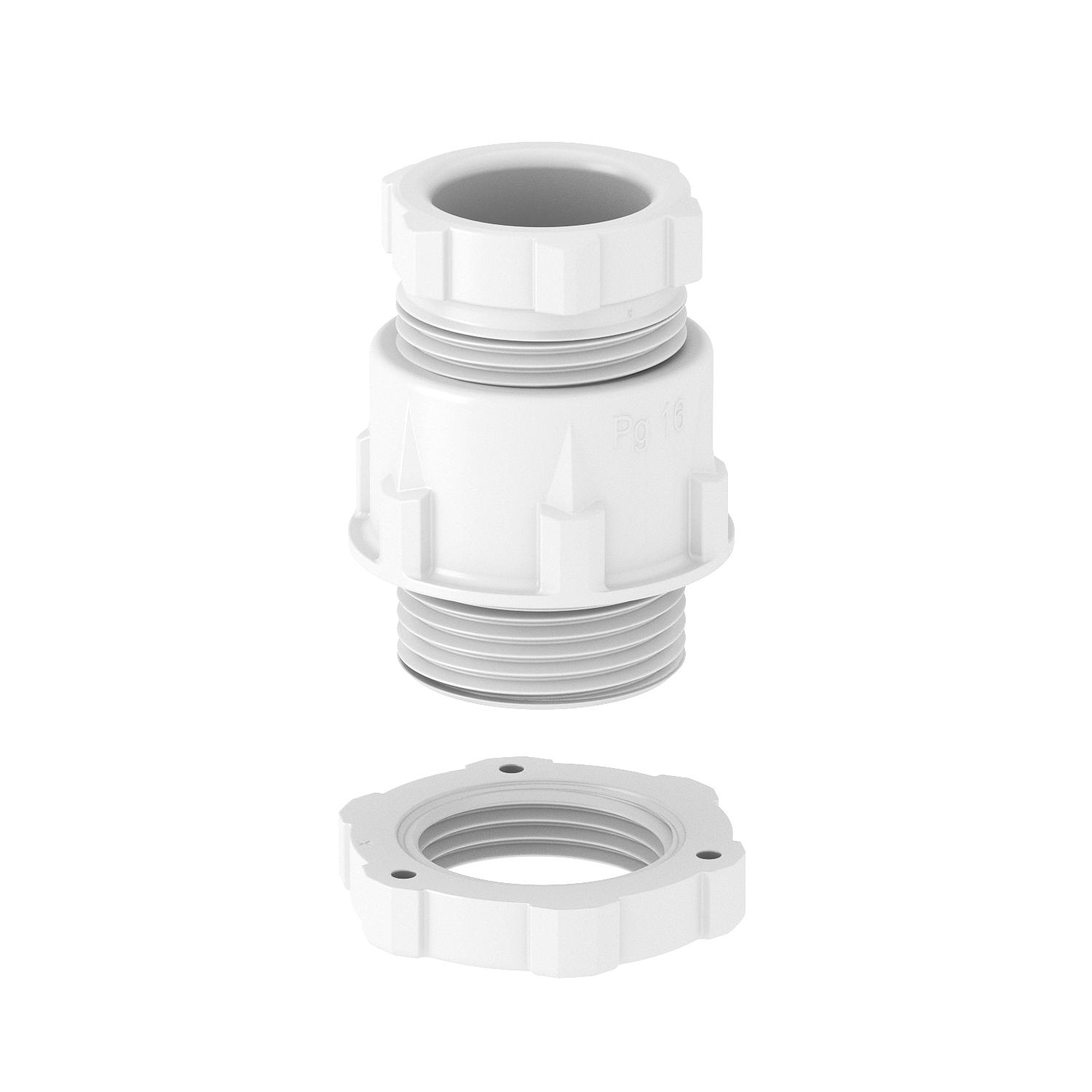

Cone cable gland, PG thread, light grey Pg 13,5

Cone cable gland, PG thread, light grey

Item no. 2038434 | EAN 4012196688746

Item no. / Types

Thread

Product description

Product description

Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring
Pg connection thread to DIN 40430

Protection rating: With connection thread sealing ring IP65, without connection thread sealing ring IP54.
Impact-resistant

Technical data

Technical data

Bend protection	no
Colour	Light grey; RAL 7035
Dimension	PG13
Dimension E1 (mm)	27 mm
Dimension E2	13,4 mm
explosion-proof	no
Fibre-glass reinforced	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Impact-resistant	no
Material	Polystyrene
Nominal thread size	13,5
Permitted temperature range, max.	65 °C

Permitted temperature range, min.	-20 °C
Protection rating	IP65
Sealing area D, max.	13 mm
Sealing area D, min.	9 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	no
Thread	Pg 13,5
Thread type	PG
Type of seal	Sealing ring
Version for	Straight
WAF 1	24 mm
WAF 2	21 mm
WAF 3	27 mm
With locknut	no

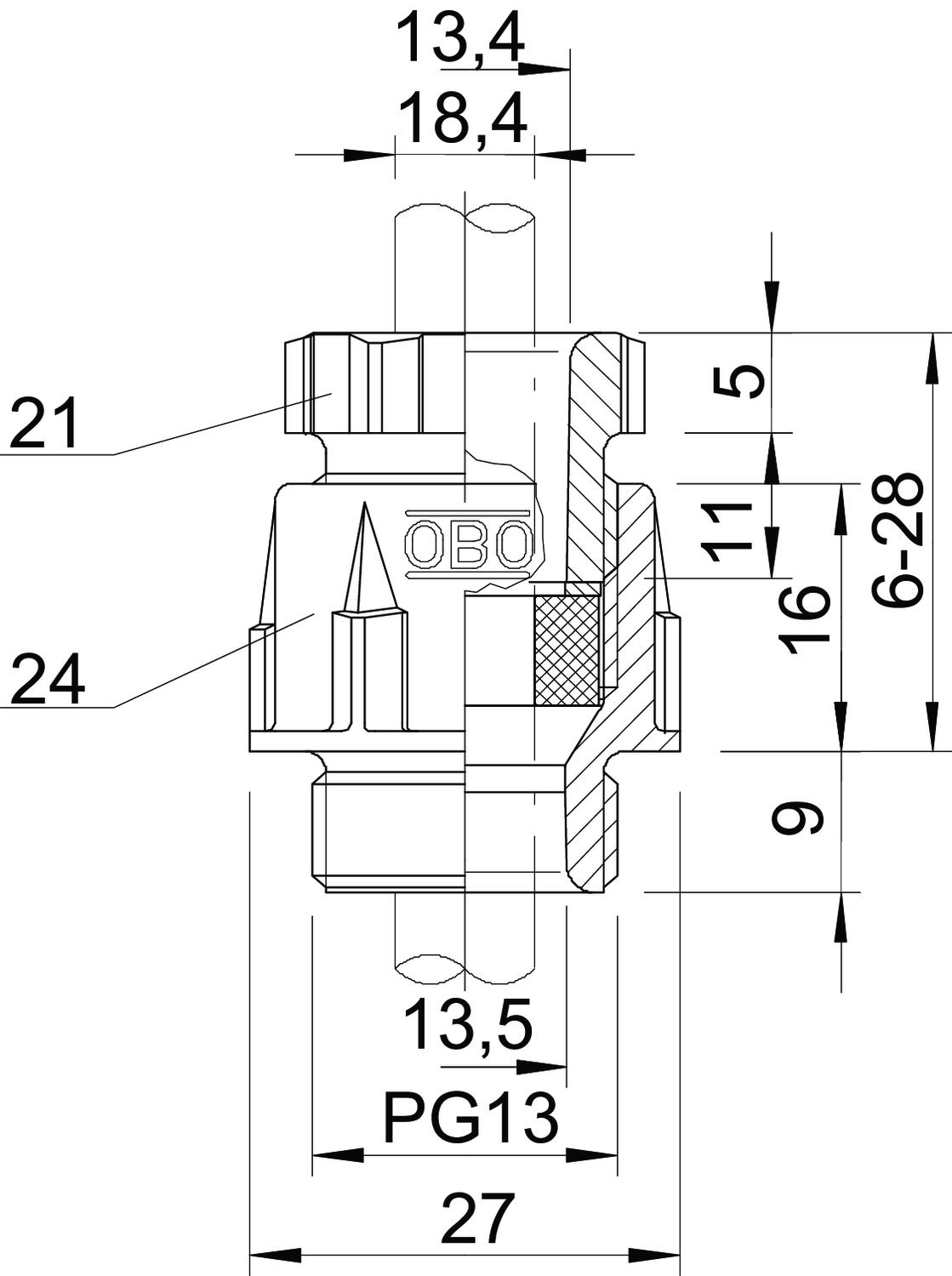

Dimensions

Dimension D2	27 mm
Dimension D3	13,4 mm
Dimension D4	13,5 mm
Dimension E3	29 mm
Dimension L max.	28 mm

Dimension L min.	6 mm
Dimension L1	9 mm
Dimension L2	16 mm
Dimension L3	5 mm
Dimension L4	10,8 mm

All types

All types

Types	Thread	Item no.	Quantity	SSU
106+PG09 MG LGR	Pg 9	2038430	piece	50 piece
106+PG11 MG LGR	Pg 11	2038432	piece	50 piece
106+PG13 MG LGR	Pg 13,5	2038434	piece	50 piece
106+PG16 MG LGR	Pg 16	2038436	piece	50 piece
106+PG21 MG LGR	Pg 21	2038438	piece	50 piece
106+PG29 MG LGR	Pg 29	2038440	piece	10 piece
106+PG36 MG LGR	Pg 36	2038442	piece	10 piece
106+PG42 MG LGR	Pg42	2038444	piece	5 piece
106+PG48 MG LGR	Pg 48	2038446	piece	5 piece
