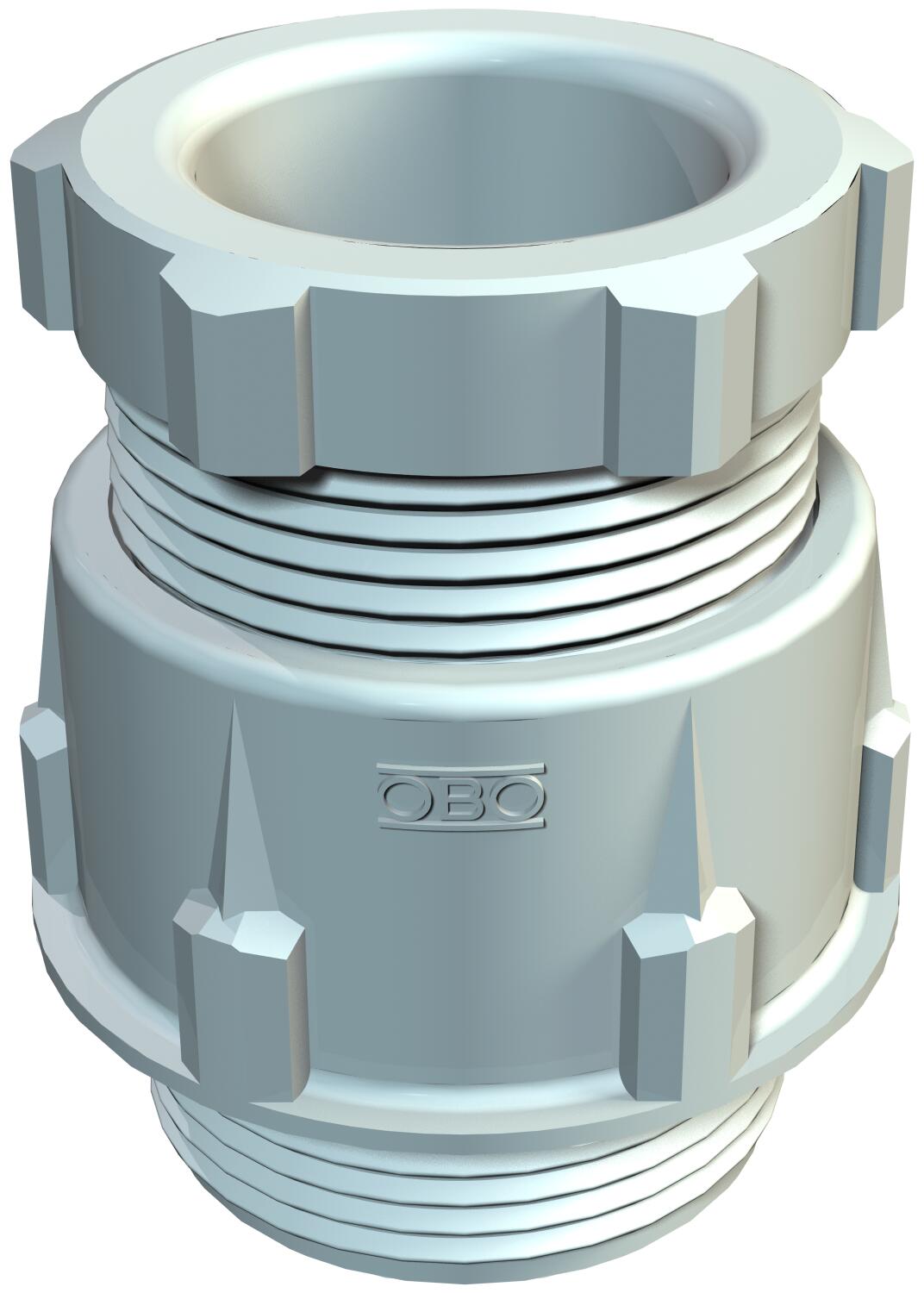

Cone cable gland, PG thread, light grey

Item no. 2035995 | EAN 4012195893295

2035995 / 106 G PG16 PS
Pg 16
Product description
Product description
With metric connecting thread to IEC 423 robust cap-nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. Sealing ring made of polychloroprene/acrylonitrile butadiene rubber. Moulded shaped sealing lip on intermediate support, thus no connection thread sealing ring required, VDE-tested to DIN EN 50262, . Temperature range –20 °C to +65 °C.
Impact-resistant
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread Pg
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension PG16
explosion-proof no
Halogen-free no
Impact-resistant yes
Material Polystyrene
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Protection rating IP54
Sealing area D, max. 12,5 mm
Sealing area D, min. 9 mm
Thread Pg 16
All types

All types

Types Thread Item no. Quantity SSU
106 G PG16 PS Pg 16 2035995
50 piece
Downloads

Download

Download

EU declaration of conformity 106 G PG16 PS / 2035995 , 0.13MB , pdf
Download

106 G PG16 PS / 2035995
Download
