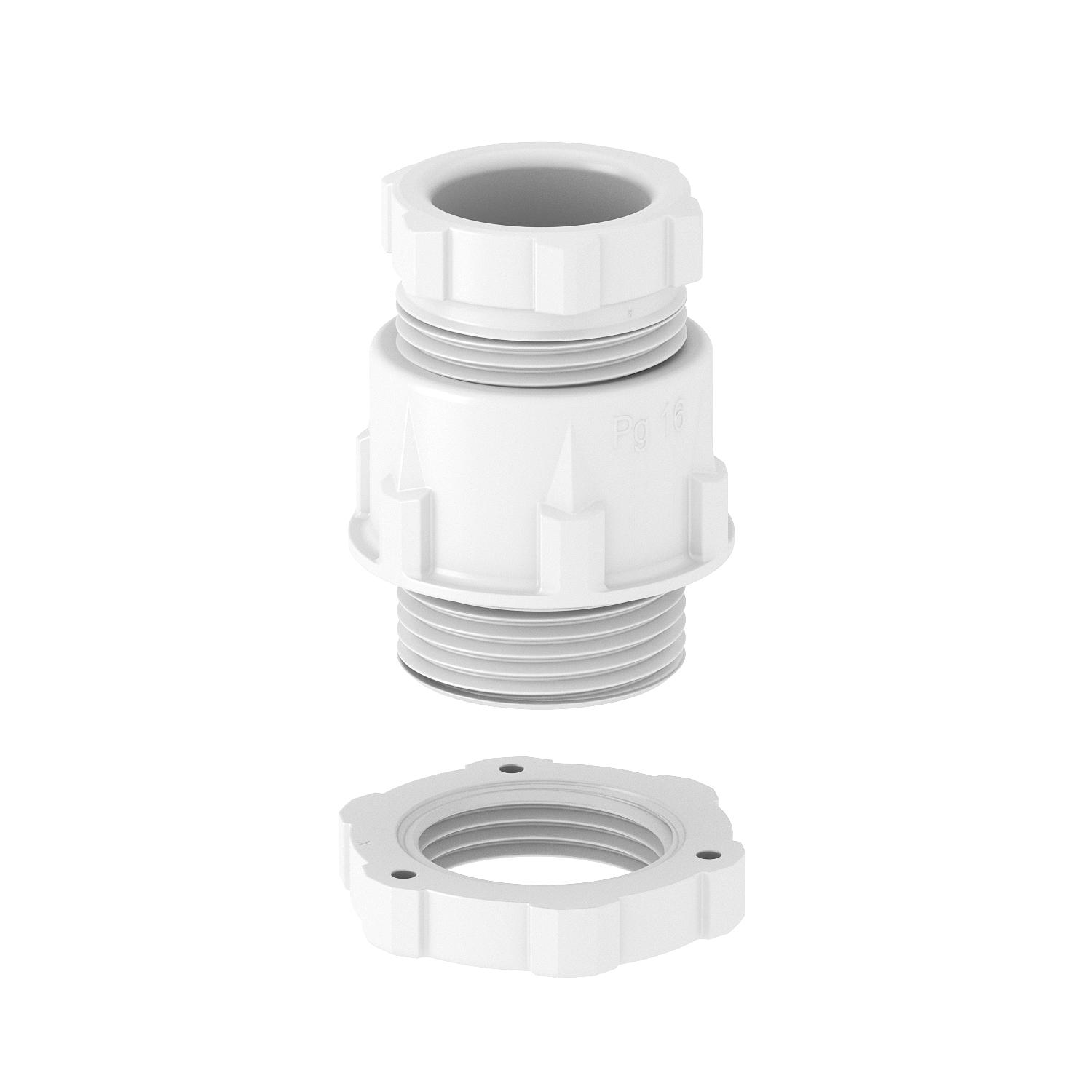

Cone cable gland, PG thread, light grey

Item no. 2038438 | EAN 4012196688845

Product description
Product description
Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring
Pg connection thread to DIN 40430

Protection rating: With connection thread sealing ring IP65, without connection thread sealing ring IP54.
Impact-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread Pg
Technical data

Technical data

Bend protection no
Colour Light grey; RAL 7035

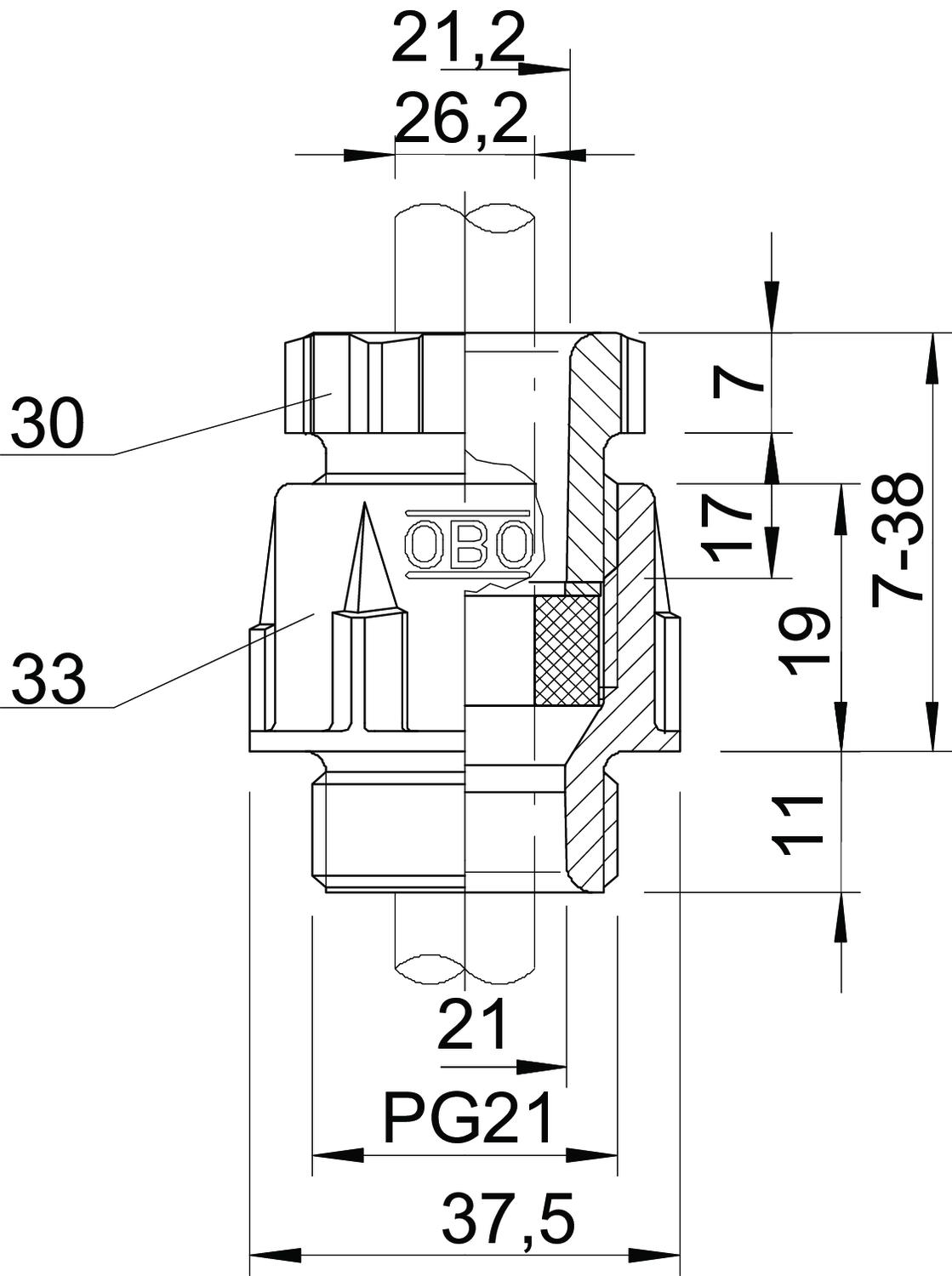

Dimension PG21
Dimension D2 37,5 mm
Dimension D3 21,2 mm
Dimension D4 21 mm
Dimension E1 (mm) 37,5 mm
Dimension E2 21,2 mm
Dimension E3 39 mm
Dimension L max. 38 mm
Dimension L min. 7 mm
Dimension L1 11 mm
Dimension L2 19 mm
Dimension L3 7 mm
Dimension L4 17 mm
explosion-proof no
Fibre-glass reinforced no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Impact-resistant no
Material Polystyrene
Nominal thread size 21
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Protection rating IP65
Sealing area D, max. 18 mm
Sealing area D, min. 14 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option no
Thread Pg 21
Thread type PG
Type of seal Sealing ring
Version for Straight
WAF 1 33 mm
WAF 2 30 mm
WAF 3 36 mm
With locknut no
All types

All types

Types Thread Item no. Quantity SSU
106+PG09 MG LGR Pg 9 2038430
50 piece
106+PG11 MG LGR Pg 11 2038432
50 piece
106+PG13 MG LGR Pg 13,5 2038434
50 piece
106+PG16 MG LGR Pg 16 2038436
50 piece
106+PG21 MG LGR Pg 21 2038438
50 piece
106+PG29 MG LGR Pg 29 2038440
10 piece
106+PG36 MG LGR Pg 36 2038442
10 piece
106+PG42 MG LGR Pg42 2038444
5 piece
106+PG48 MG LGR Pg 48 2038446
50 piece
