- Product description
-

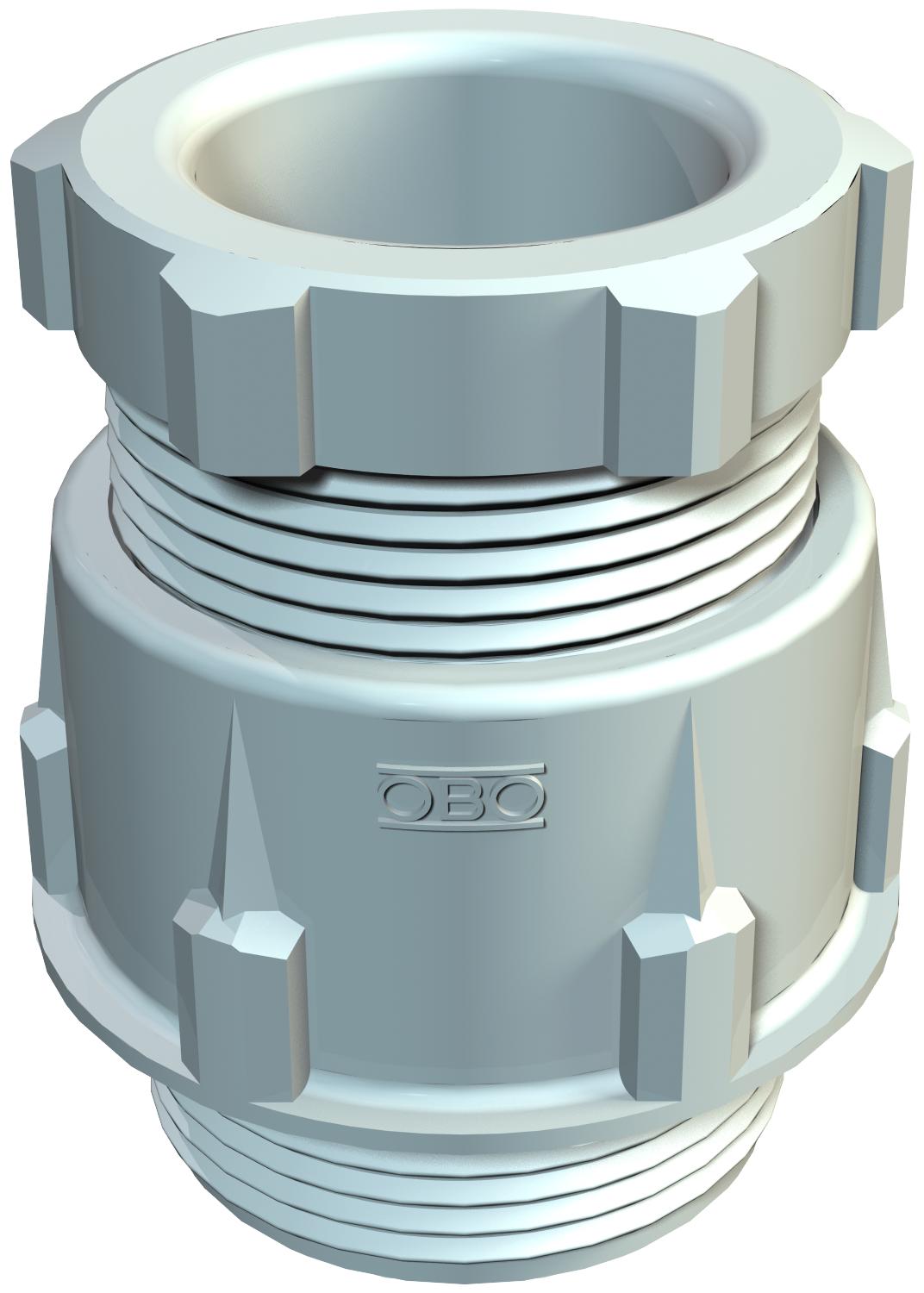

Product descriptionStandard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.
PG connection thread in accordance with DIN 40430.
Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension PG29 Dimension D1 25 mm Dimension D2 47,5 mm Dimension D3 30 mm Dimension D4 27,5 mm Dimension G Pg29 mm Dimension L max. 42 mm Dimension L1 11 mm Dimension L2 20,5 mm Dimension L3 8 mm Dimension L4 18 mm explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 50 mm Impact-resistant no Length 47,5 mm Material Polystyrene Nominal thread size 29 Protection rating IP65 Sealing area D, max. 25 mm Sealing area D, min. 18 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread Pg 29 Thread length 11 mm Thread type PG Type of seal Sealing ring Version for Straight WAF 1 42 mm WAF 2 40 mm Width 47,5 mm With locknut no - All types
- Downloads
-
Data sheet 106 PG29 / 2036290 , 0.22MB , pdfEU declaration of conformity 106 PG29 / 2036290 , 0.13MB , pdfREACH Declaration of conformity 106 PG29 / 2036290 , 0.12MB , pdfRoHS Declaration of conformity 106 PG29 / 2036290 , 0.12MB , pdf
