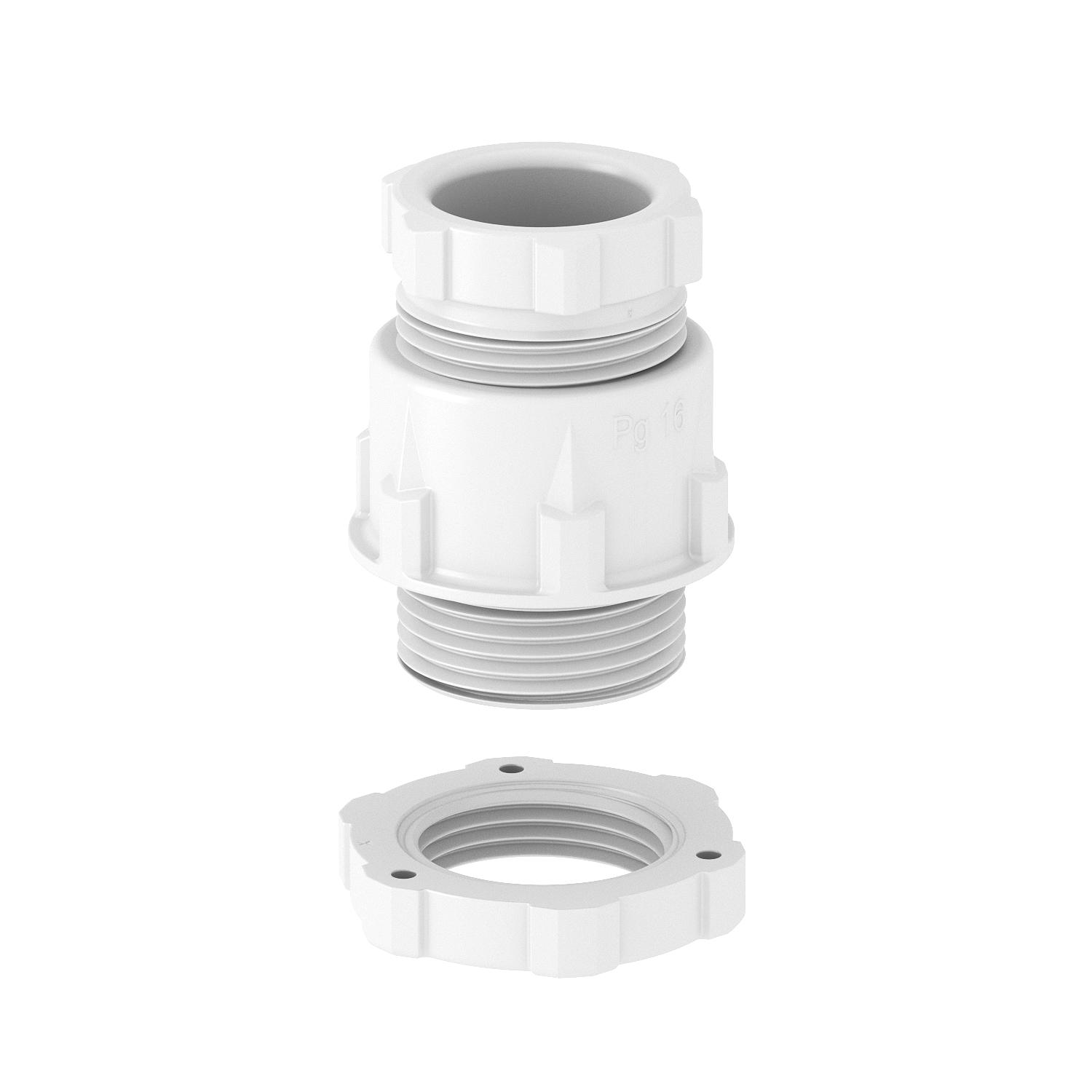

Cone cable gland, PG thread, light grey Pg 29

Cone cable gland, PG thread, light grey

Item no. 2038440 | EAN 4012196688852

Item no. / Types

Thread

Product description

Product description

Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring
Pg connection thread to DIN 40430

Protection rating: With connection thread sealing ring IP65, without connection thread sealing ring IP54.
Impact-resistant

Technical data

Technical data

Bend protection	no
Colour	Light grey; RAL 7035

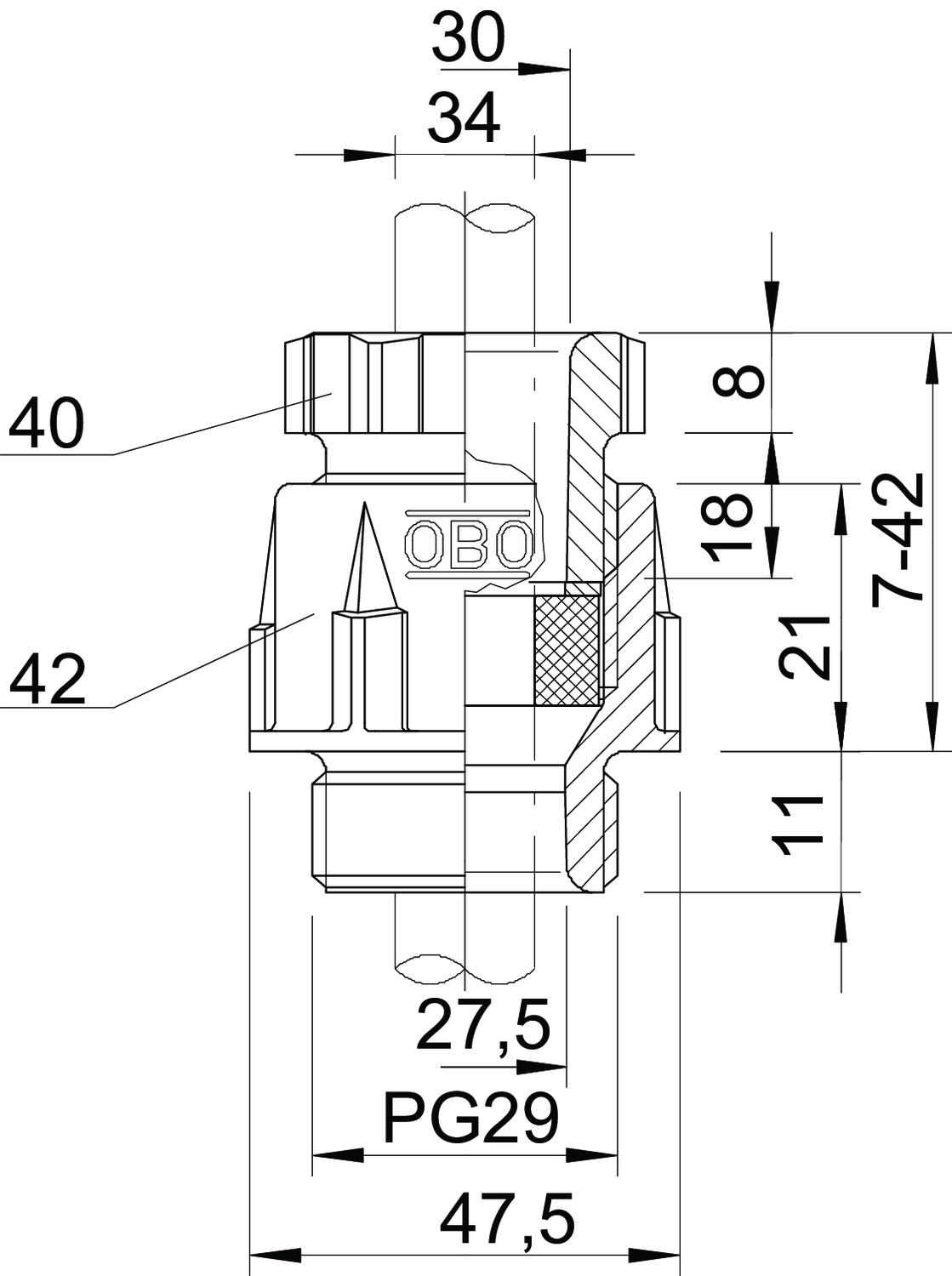

Dimension	PG29
Dimension D2	47,5 mm
Dimension D3	30 mm
Dimension D4	27,5 mm
Dimension E1 (mm)	47,5 mm
Dimension E2	30,1 mm
Dimension E3	50 mm
Dimension L max.	42 mm
Dimension L min.	7 mm
Dimension L1	11 mm
Dimension L2	20,5 mm
Dimension L3	8 mm
Dimension L4	18 mm
explosion-proof	no
Fibre-glass reinforced	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without

Halogen-free	yes
Impact-resistant	no
Material	Polystyrene
Nominal thread size	29
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP65
Sealing area D, max.	25 mm
Sealing area D, min.	18 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	no
Thread	Pg 29
Thread type	PG
Type of seal	Sealing ring
Version for	Straight
WAF 1	42 mm
WAF 2	40 mm
WAF 3	46 mm
With locknut	no

All types

All types

Types	Thread	Item no.	Quantity	SSU
106+PG09 MG LGR	Pg 9	2038430	piece	50 piece
106+PG11 MG LGR	Pg 11	2038432	piece	50 piece
106+PG13 MG LGR	Pg 13,5	2038434	piece	50 piece
106+PG16 MG LGR	Pg 16	2038436	piece	50 piece
106+PG21 MG LGR	Pg 21	2038438	piece	50 piece
106+PG29 MG LGR	Pg 29	2038440	piece	10 piece
106+PG36 MG LGR	Pg 36	2038442	piece	10 piece
106+PG42 MG LGR	Pg42	2038444	piece	5 piece
106+PG48 MG LGR	Pg 48	2038446	piece	50 piece
