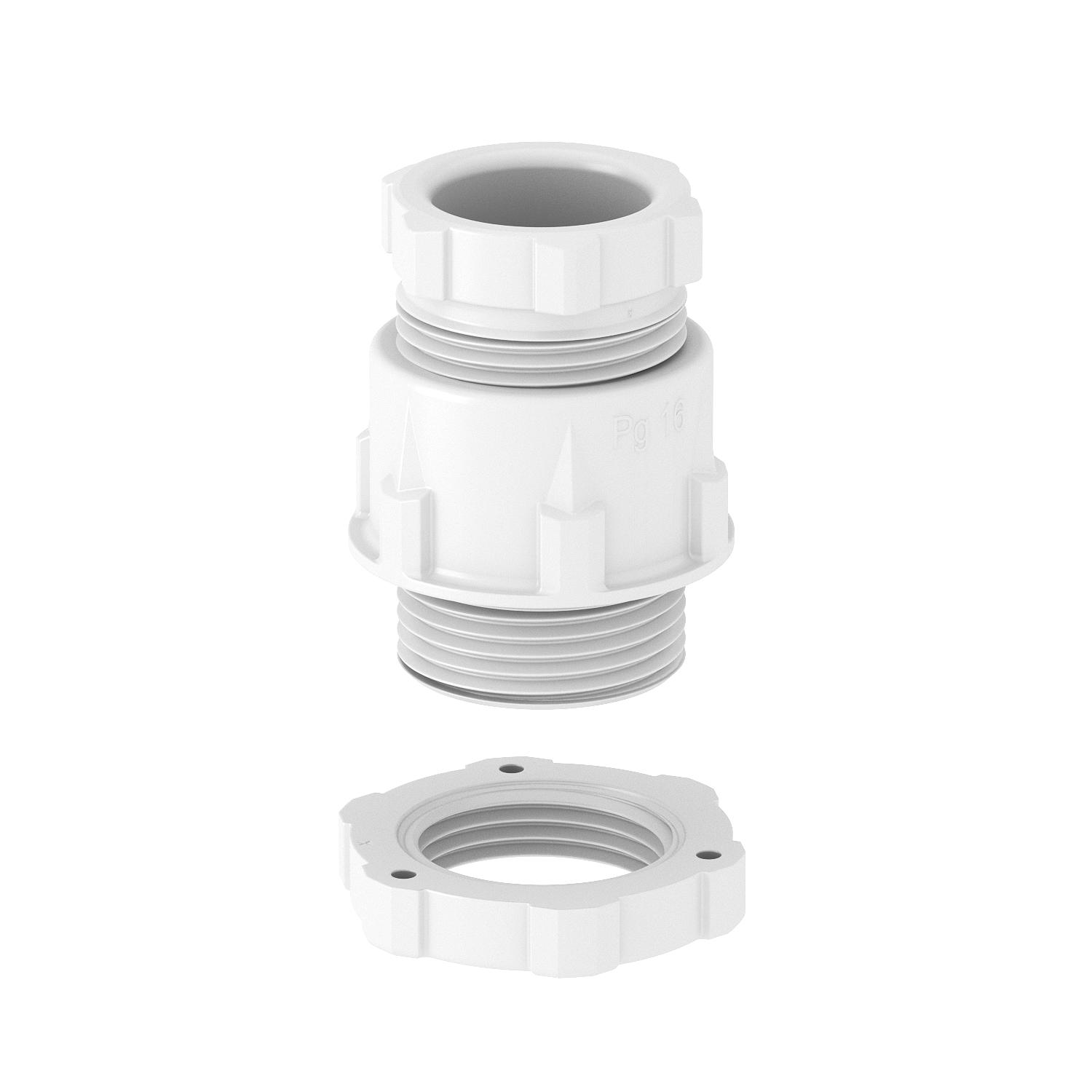

Cone cable gland, PG thread, light grey

Item no. 2038430 | EAN 4012196688722

Product description
Product description
Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring
Pg connection thread to DIN 40430

Protection rating: With connection thread sealing ring IP65, without connection thread sealing ring IP54.
Impact-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread Pg
Technical data

Technical data

Bend protection no
Colour Light grey; RAL 7035

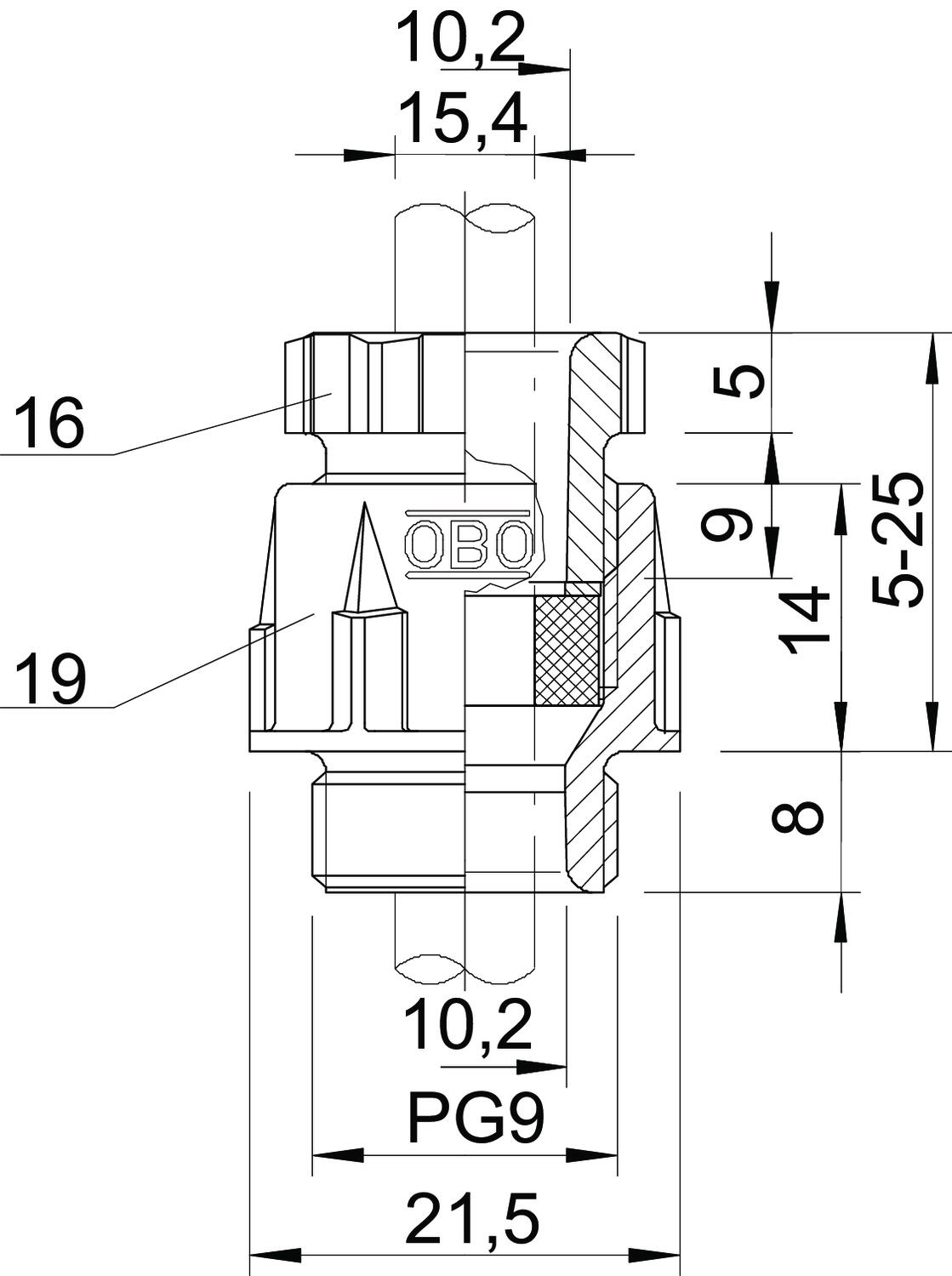

Dimension PG9
Dimension D2 21,5 mm
Dimension D3 10,2 mm
Dimension D4 10,2 mm
Dimension E1 (mm) 21,5 mm
Dimension E2 10,2 mm
Dimension E3 24 mm
Dimension L max. 25 mm
Dimension L min. 5 mm
Dimension L1 8 mm
Dimension L2 14 mm
Dimension L3 5 mm
Dimension L4 9 mm
explosion-proof no
Fibre-glass reinforced no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Impact-resistant no
Material Polystyrene
Nominal thread size 9
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Protection rating IP65
Sealing area D, max. 7 mm
Sealing area D, min. 4,5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option no
Thread Pg 9
Thread type PG
Type of seal Sealing ring
Version for Straight
WAF 1 19 mm
WAF 2 16 mm
WAF 3 22 mm
With locknut no
All types

All types

Types Thread Item no. Quantity SSU
106+PG09 MG LGR Pg 9 2038430
50 piece
106+PG11 MG LGR Pg 11 2038432
50 piece
106+PG13 MG LGR Pg 13,5 2038434
50 piece
106+PG16 MG LGR Pg 16 2038436
50 piece
106+PG21 MG LGR Pg 21 2038438
50 piece
106+PG29 MG LGR Pg 29 2038440
10 piece
106+PG36 MG LGR Pg 36 2038442
10 piece
106+PG42 MG LGR Pg42 2038444
5 piece
106+PG48 MG LGR Pg 48 2038446
50 piece
