Product description
Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430.
Pressure rings made of electrogalvanised and transparently passivated steel.
NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
With simple sealing ring, with small internal diameter.
* Prices according to DEL notation.
- Technical data
-
Technical data

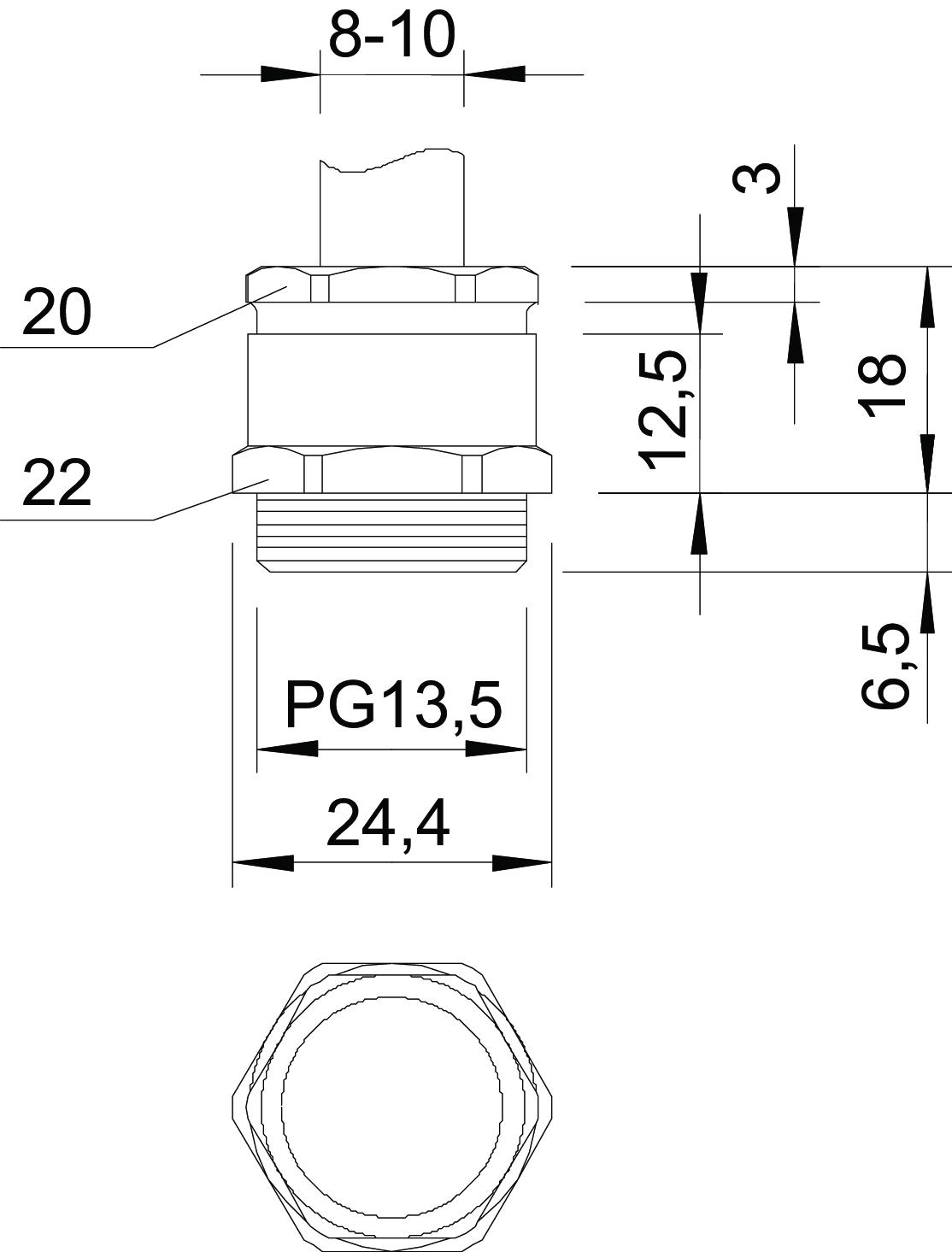

Bend protection no Dimension PG13,5 Dimension E 24,4 mm Dimension L 18 mm Dimension L max. 18 mm Dimension L1 6,5 mm Dimension L2 12,5 mm Dimension L3 3 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Protection rating IP54 Sealing area D, max. 10 mm Sealing area D, min. 8 mm Sealing insert, multiple no Strain relief option no Surface Nickel-plated Thread Pg 13,5 Thread length 6,5 mm Thread type PG Type of seal Sealing ring WAF 1 22 mm WAF 2 20 mm With locknut no - All types
- Downloads
-
Data sheet 163 MS PG13.5 / 2082136 , 0.21MB , pdfREACH Declaration of conformity 163 MS PG13.5 / 2082136 , 0.12MB , pdfRoHS Declaration of conformity 163 MS PG13.5 / 2082136 , 0.12MB , pdf
