Cone cable gland, PG thread, small cutting ring, nickel-plated

Item no. 2082071 | EAN 4012195186977

Product description

Product description

Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430.

Pressure rings made of electrogalvanised and transparently passivated steel.

NR/SBR sealing ring.

Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.

With simple sealing ring, with small internal diameter.

* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread Pg

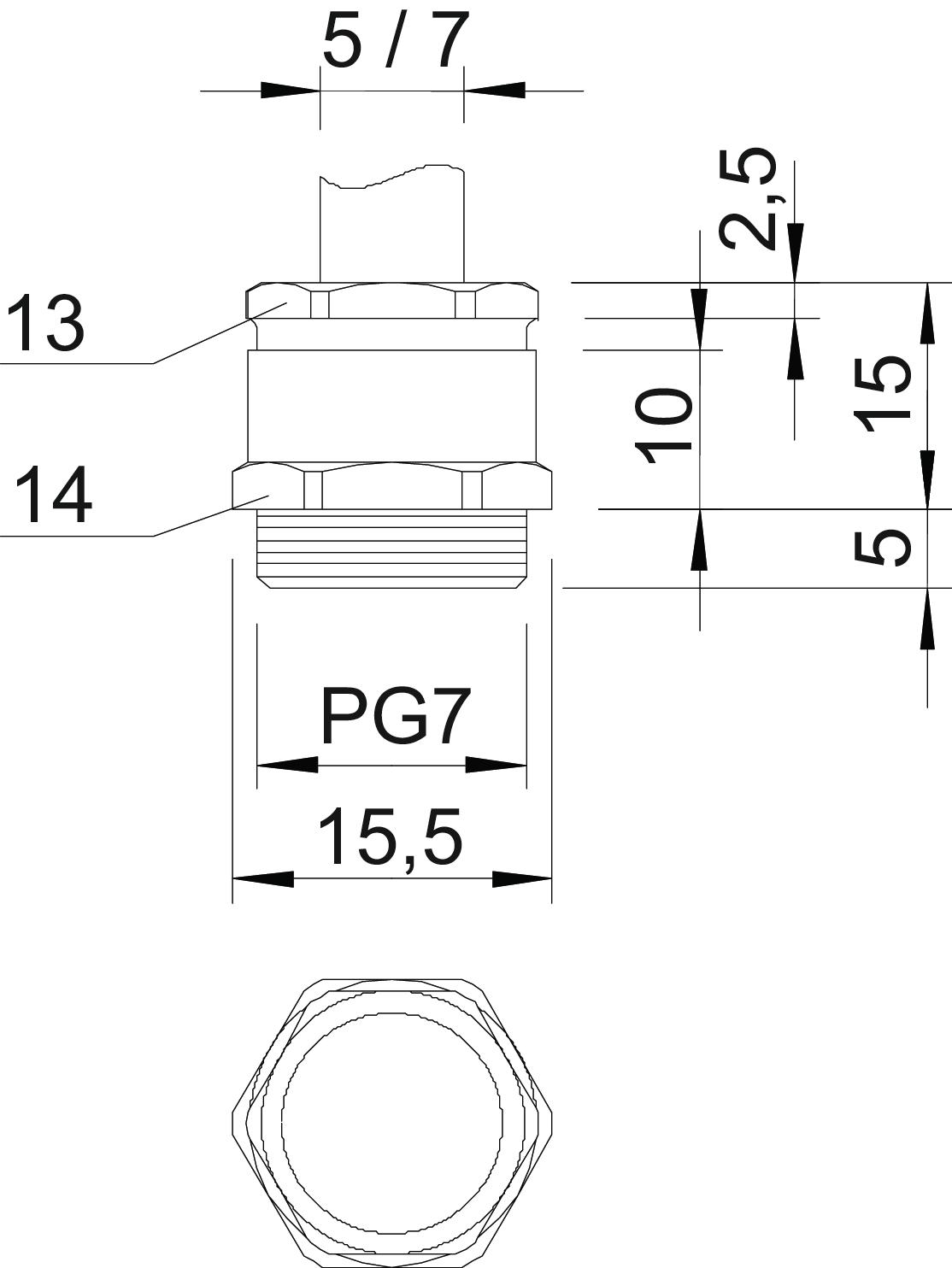

Technical data

Technical data

Bend protection no
Dimension PG7
Dimension E 15,5 mm
Dimension L 15 mm
Dimension L max. 15 mm
Dimension L1 5 mm
Dimension L2 10 mm
Dimension L3 2,5 mm
explosion-proof no
Fibre-glass reinforced no
Flat cable gland no
For Ex zone Without
Halogen-free no
Impact-resistant no
Material Brass
Protection rating IP54
Sealing area D, max. 7 mm
Sealing area D, min. 5 mm
Sealing insert, multiple no
Strain relief option no
Surface Nickel-plated
Thread Pg 7
Thread length 5 mm
Thread type PG
Type of seal Sealing ring
WAF 1 14 mm
WAF 2 13 mm
With locknut no
All types

All types

Types Thread Item no. Quantity SSU
163 MS PG 7 Pg 7 2082071
50 piece
163 MS PG 9 Pg 9 2082098
50 piece
163 MS PG11 Pg 11 2082101
25 piece
163 MS PG13.5 Pg 13,5 2082136
25 piece
163 MS PG16 Pg 16 2082160
25 piece
163 MS PG21 Pg 21 2082217
25 piece
163 MS PG29 Pg 29 2082292
10 piece
163 MS PG36 Pg 36 2082365
10 piece
163 MS PG42 Pg 42 2082411
5 piece
163 MS PG48 Pg 48 2082489
5 piece
