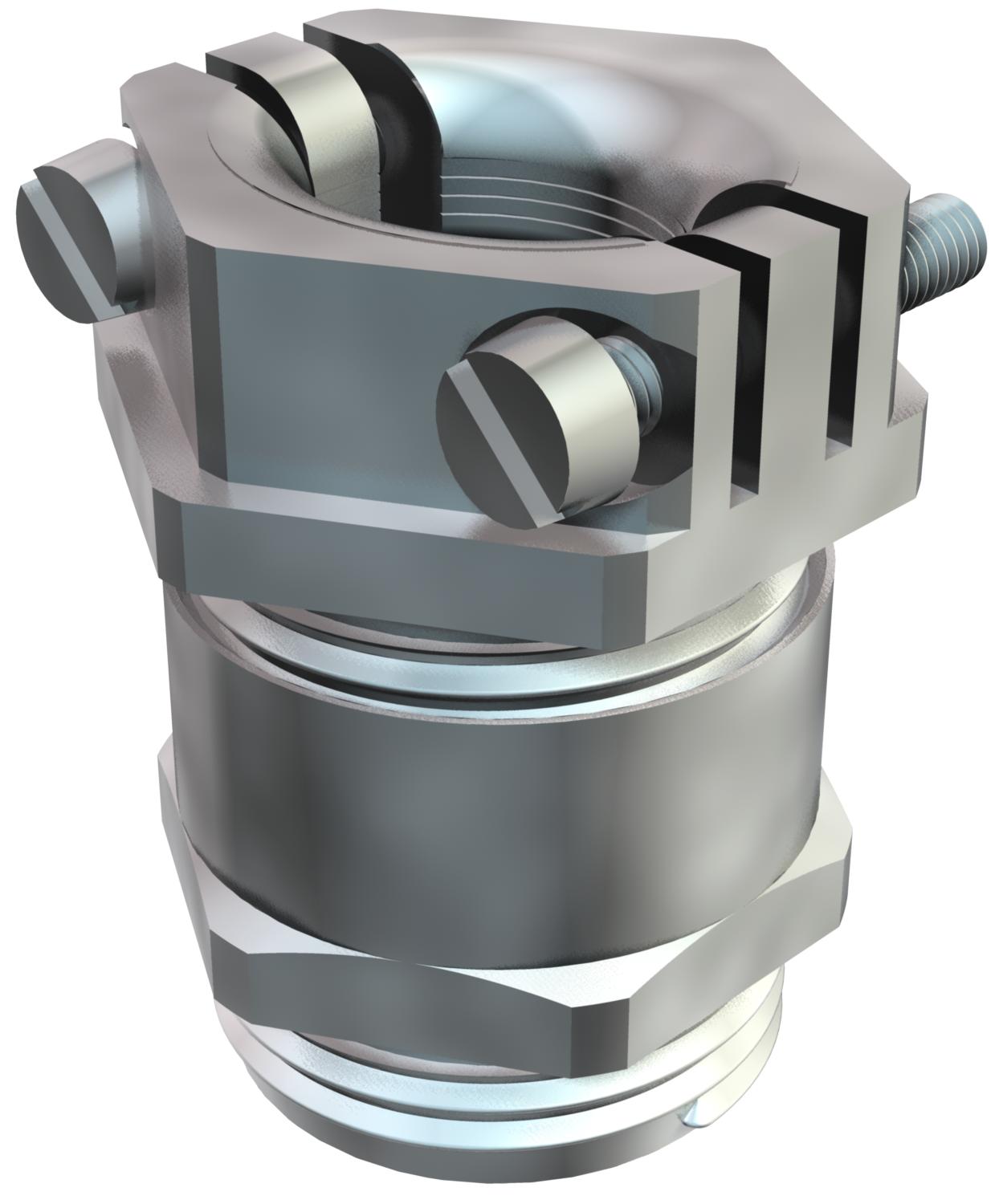

Cone cable gland, PG thread, strain relief, nickel-plated

Item no. 2046482 | EAN 4012195182351

Product description
Product description
Cable gland with centrically acting transverse clip strain relief in the pressure screw, bend protection of movable cables through strongly rounded pressure screw.
With Pg connection thread to DIN 40430.
Pressure rings made of electrogalvanised and transparently passivated steel.
NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
With hexagonal intermediate support (similar to shape C 4 to DIN 46320).
* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread Pg

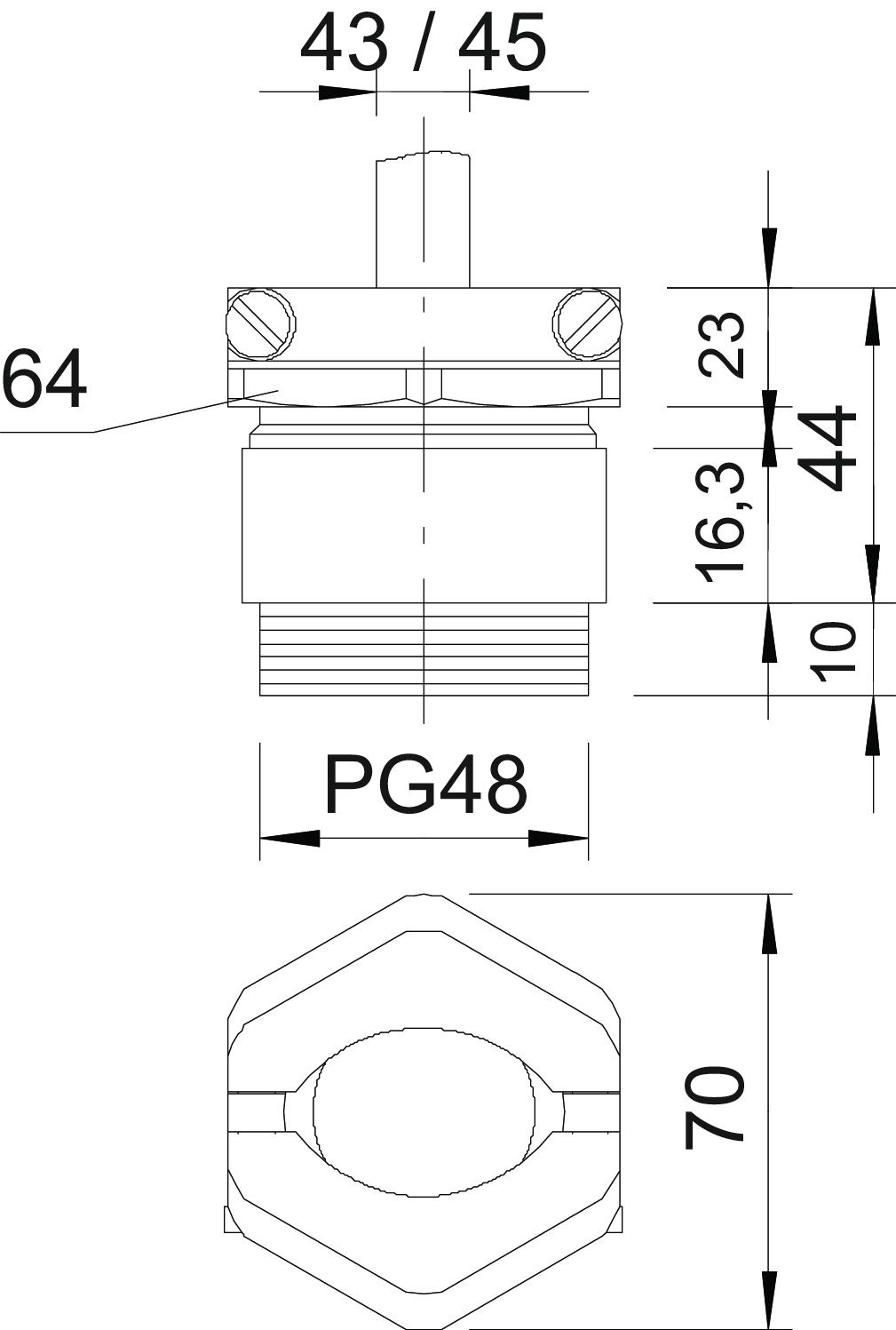

Technical data

Technical data

Bend protection no
Dimension PG48
Dimension E 70 mm
Dimension L max. 44 mm
Dimension L1 10 mm
Dimension L2 23 mm
Dimension L3 16,3 mm
explosion-proof no
Fibre-glass reinforced no
Flat cable gland no
For Ex zone Without
Halogen-free no
Impact-resistant no
Material Brass
Protection rating IP65
Sealing area D, max. 45 mm
Sealing area D, min. 43 mm
Sealing insert, multiple no
Strain relief option yes
Surface Nickel-plated
Thread Pg 48
Thread length 10 mm
Thread type PG
Type of seal Sealing ring
WAF 64
WAF 1 64 mm
WAF 2 64 mm
With locknut no
All types

All types

Types Thread Item no. Quantity SSU
159 MS PG 7 Pg 7 2046075
50 piece
159 MS PG 9 Pg 9 2046091
50 piece
159 MS PG11 Pg 11 2046113
50 piece
159 MS PG13.5 Pg 13,5 2046121
50 piece
159 MS PG16 Pg 16 2046164
25 piece
159 MS PG21 Pg 21 2046210
25 piece
159 MS PG29 Pg 29 2046296
10 piece
159 MS PG36 Pg 36 2046369
5 piece
159 MS PG42 Pg 42 2046423
5 piece
159 MS PG48 Pg 48 2046482
4 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Locknut, PG thread Locknut, PG thread 169 MS PG48 2091488
25 piece
