Connectable data cable protection, 2-pole, indirect earthing, with visual signalling, 5 V 4 | 2x2-pole | 4.2 | 6 | Terminal

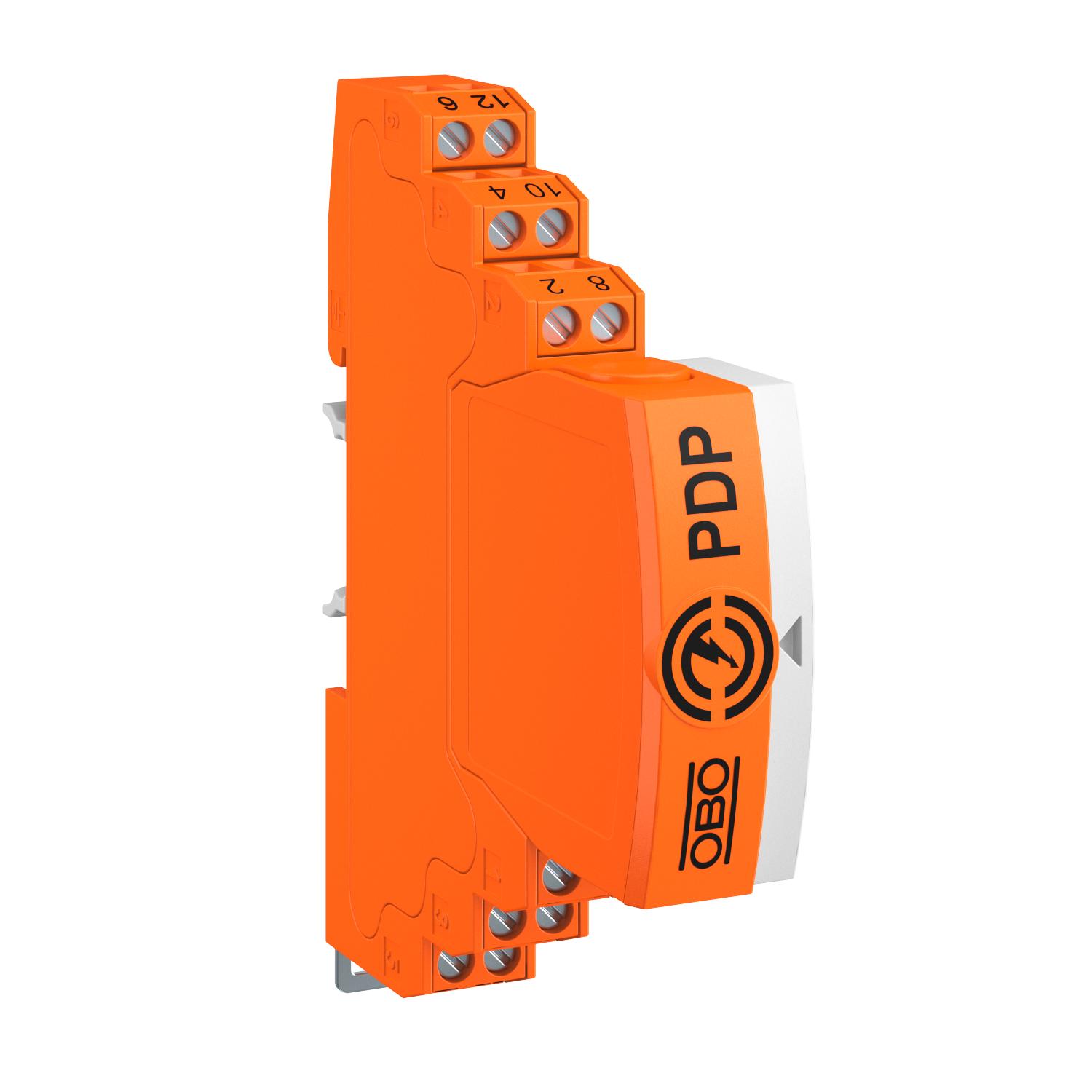

Connectable data cable protection, 2-pole, indirect earthing, with visual signalling, 5 V

Item no. 5080349 | EAN 4012196742219

Item no. / Types

Number of poles	4

Version for	2x2-pole

Maximum continuous voltage AC

Maximum continuous voltage DC

Plug-in system	Terminal

Product description

Product description

Connectable data cable protection, type 1+2/D1+C2 for use in measurement, control and regulation technology

• Protection device for multiwire systems
• Indirect shield earthing
• Frequency range up to 100 MHz
• Earthing via DIN rail or connection cable
• Installation width from 17.5 mm
• High system availability – no signal interruption without protection module
• With visual signalling and option for remote signalling via the PDP-PS power supply

Application: Universal lightning and surge protection for MCR data transmission devices.

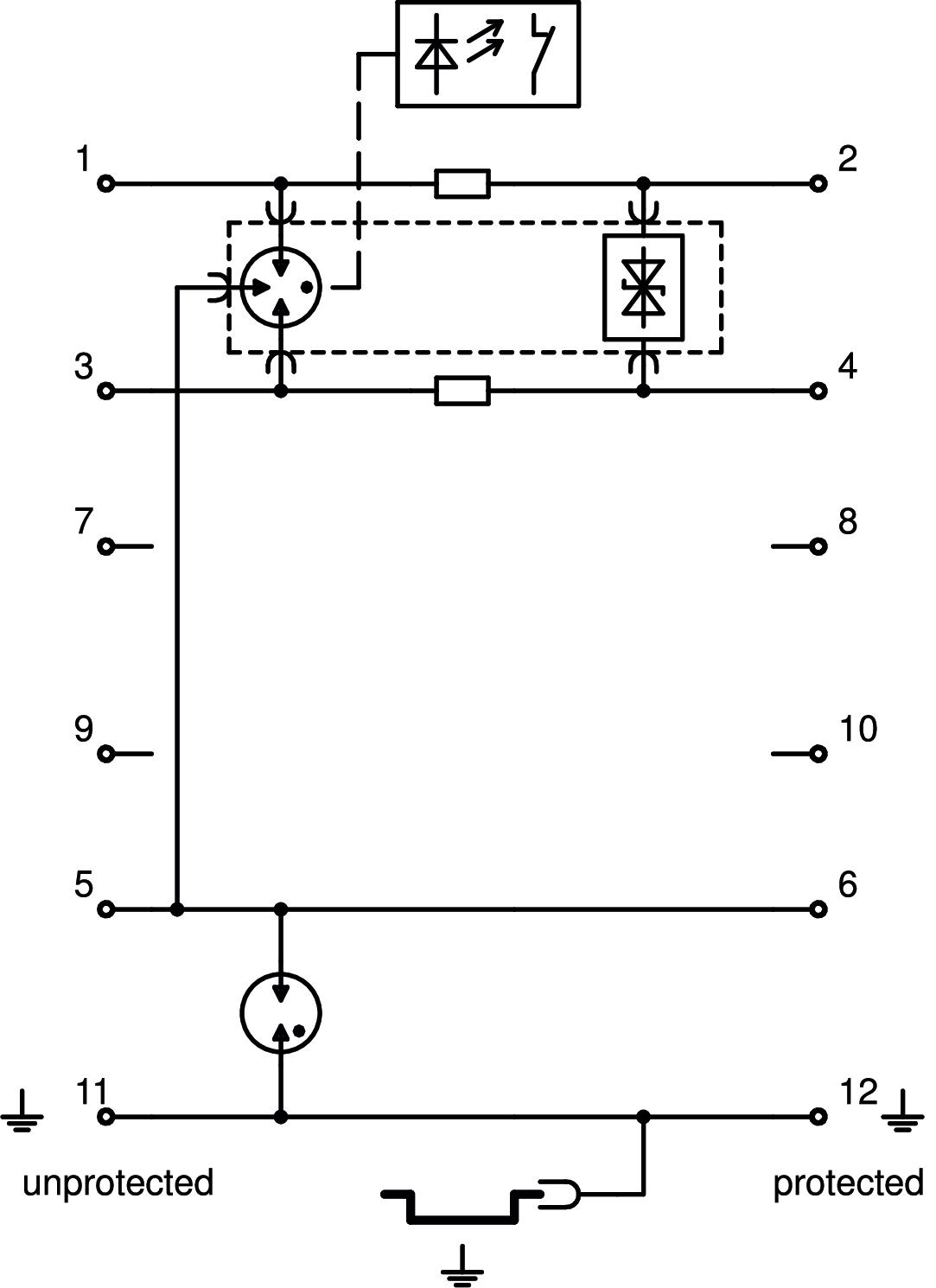

Technical data

Technical data

Capacity (wire-earth)	≤30 pF
Capacity (wire-wire)	≤30 pF
Connection cross-section, flexible, max.	1,5 mm²
Connection cross-section, flexible, min.	0,14 mm²
Connection cross-section, multi-wire, max.	2,5 mm²
Connection cross-section, multi-wire, min.	0,14 mm²
Connection cross-section, rigid, max.	2,5 mm²
Connection cross-section, rigid, min.	0,14 mm²
Cut-off frequency	100 MHz
Dimension	5V
Earthing via:	Connection cable / DIN rail

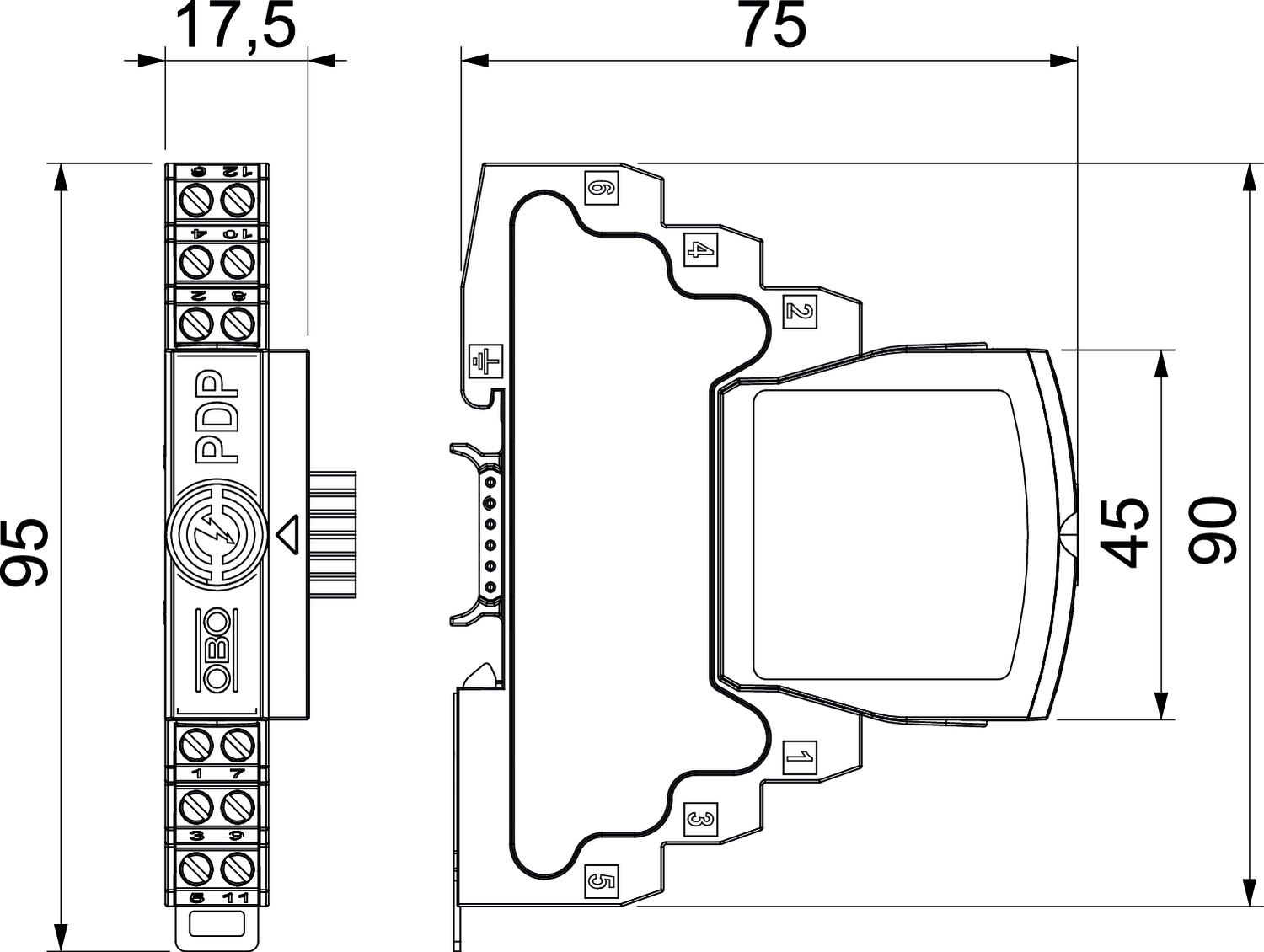

Height	95 mm
Impulse durability wire-earth	10 kV / 5 kA
Impulse durability wire-wire	10 kV / 5 kA
Insertion loss	≤3 dB
Kategorie	Type 1+2 / D1+C2
Length	75 mm
Lengthwise resistance	1.2 ± 5%
Lightning impulse current	2,5 kA
Lightning protection zone LPZ	0→2
Maximum continuous voltage AC	4,2 V
Maximum continuous voltage DC	6 V
Mounting of input / output	Screw terminals
Nominal discharge current (8/20 µs)	10 kA

Nominal load current AC	0,425 A
Nominal load current DC	0,6 A
Number of poles	4
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Plug-in system	Terminal
Protection level wire-earth	1600 V
Protection level wire-wire	100 V
Protection level, shield-earth (S-PE)	1300 V
Protection rating	IP20
Screening	Indirect
Series resistance per wire	1,2 Ω ± 5%
Shielding connection available	yes
Signalling on device	None
SPD to EN 61643-11	Type 1+2
SPD to IEC 61643-1	Class I+II
SPD to IEC 61643-21	Class I+II / D1+C2
Testing standard	IEC 61643-21
Total discharge current (10/350)	2,5 kA
Total discharge current (8/20)	20 kA
Total impulse durability into C2 (8/20)	20 kA
Version for	2x2-pole
Width	17,5 mm

All types

All types

Types	Number of poles	Version for	Maximum continuous voltage AC	Maximum continuous voltage DC	Plug-in system	Item no.	Quantity	SSU
PDP-2-5-I-OS	4	2x2-pole	4.2 V	6 V	Terminal	5080349	piece	1 piece
PDP-2-12-I-OS	4	2x2-pole	12 V	16 V	Terminal	5080351	piece	1 piece
PDP-2-24-I-OS	4	2x2-pole	21 V	30 V	Terminal	5080353	piece	1 piece
PDP-2-48-I-OS	4	2x2-pole	37 V	52 V	Terminal	5080355	piece	1 piece
