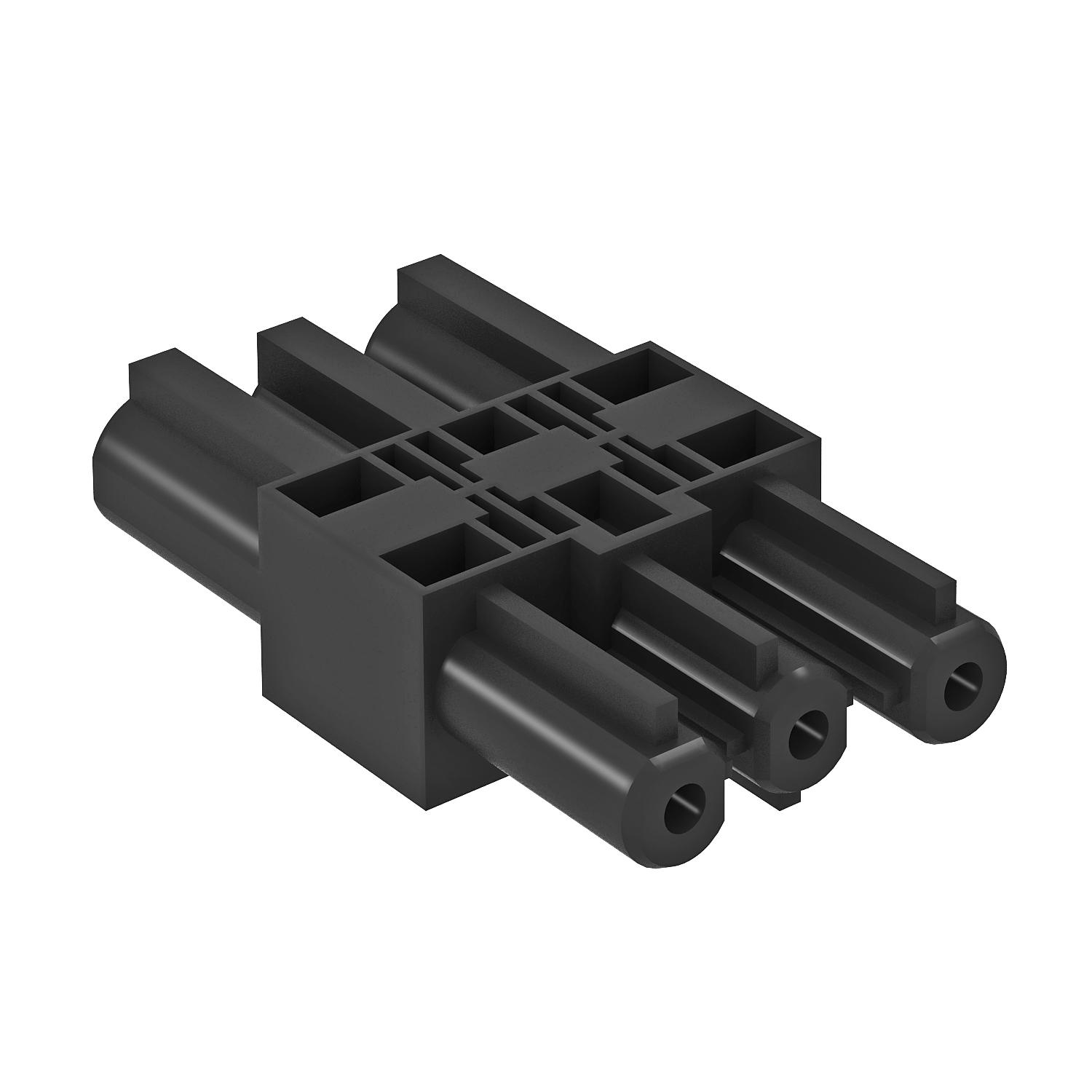

Connection adapter, GST18i, straight
Item no. 6108045 | EAN 4012195896975
- Product description
-
Product description
Connection adapter GST18i for combining STD-D0C / STD-D3C or STD-F0C / STD-F3C sockets together with straight connection adapters, pluggable connection with integrated strain relief. Suitable for device connections in the device installation trunking systems Rapid 45 and Rapid 80 and in ISS service poles.
- Technical data
-
Technical data

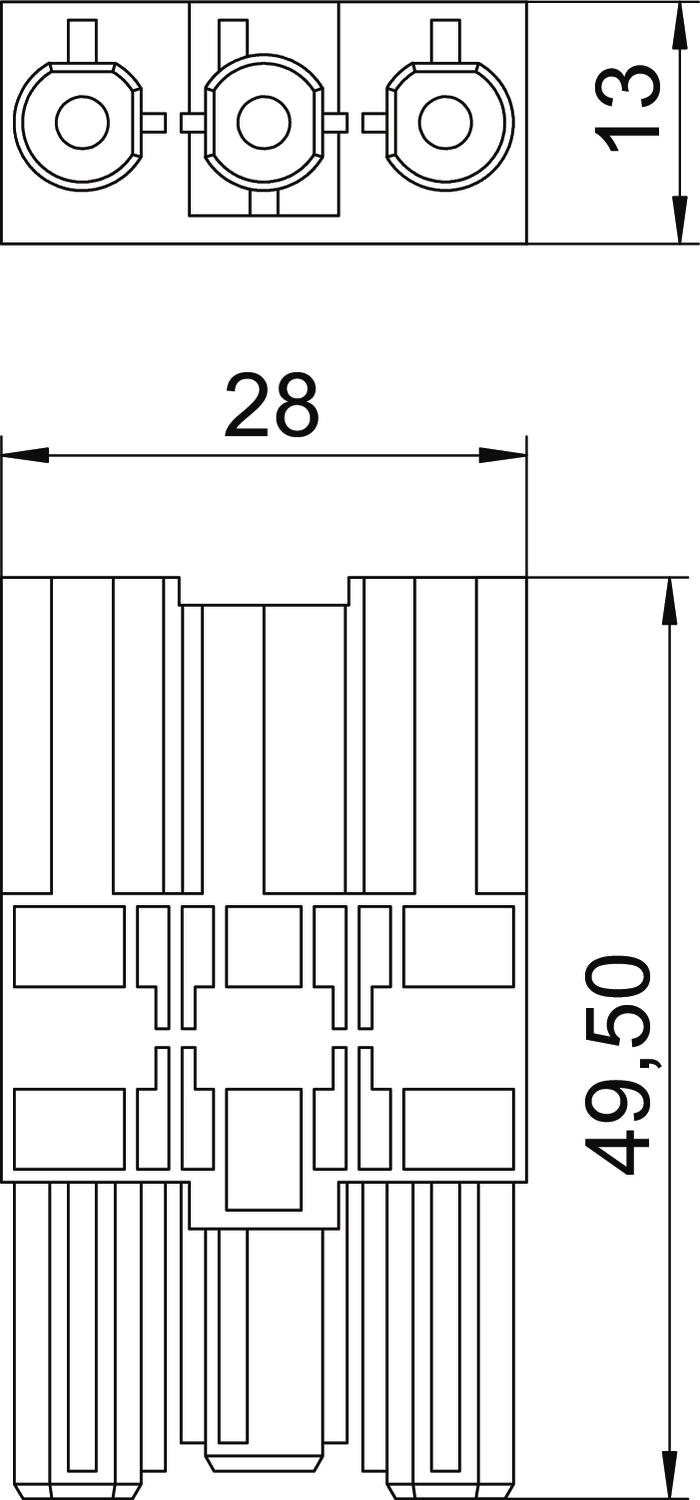

Colour Black Colour of the coding/contact insert Black Colour of the separate adapter Black Contact material CuZn Halogen-free yes Height 13 mm Length 49,5 mm Material Polyamide Mechanical encoding yes Nominal current 16 A Nominal voltage 250 V Number of inputs 1 Number of outputs 1 Pin labelling L, N, PE Pole number 3 Protection rating IP20 Surface treatment of the contacts Tin-plated Type of distributor Adapter coupling Type of locking Integrated in plug connector Width 28 mm - All types
