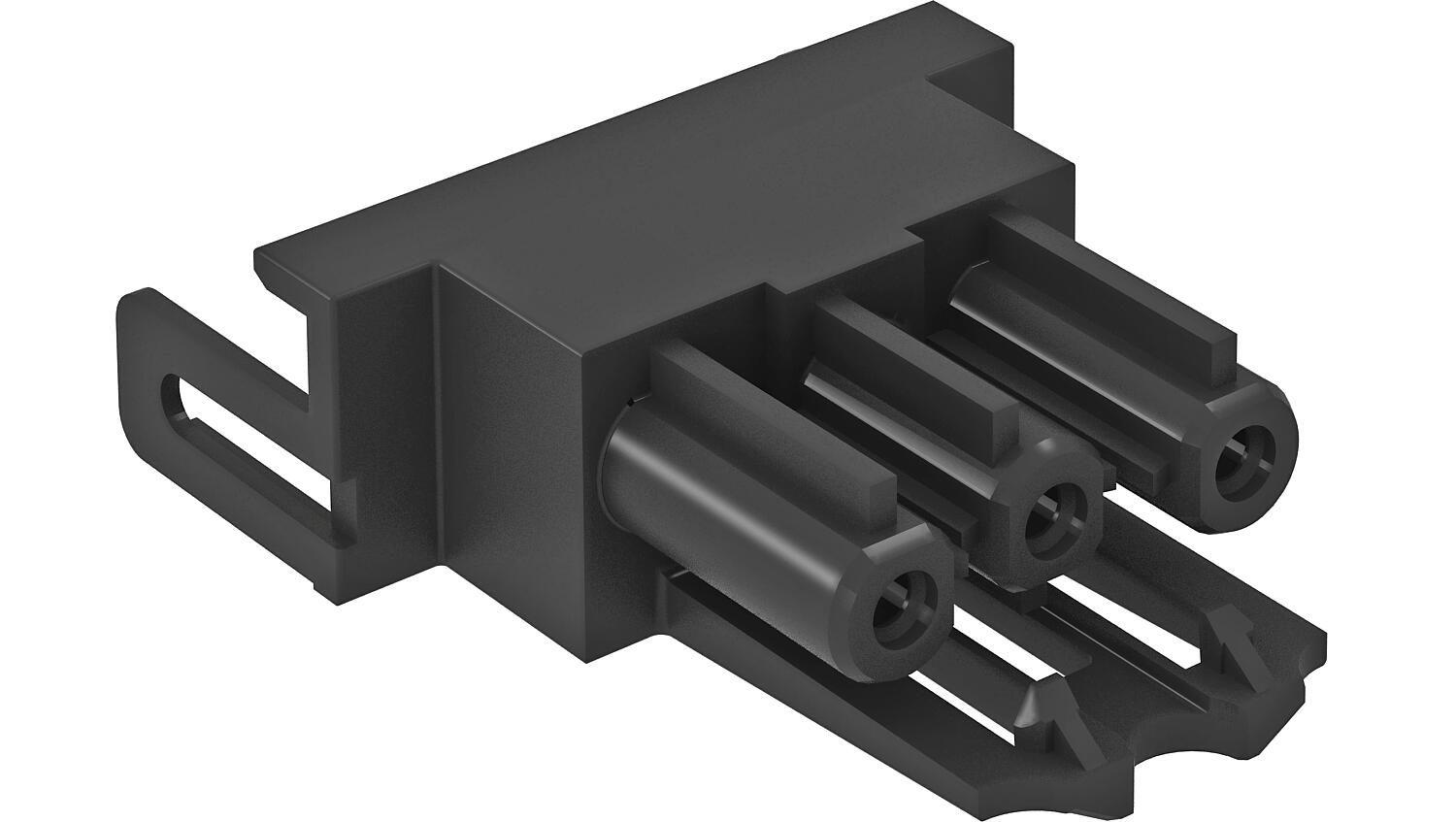

Connection adapter, straight, socket part

Item no. 6117190 | EAN 4012195438069

Product description

Product description

Connector part adapter, straight, for connection to an STD-D0C / STD-D3C or STD-F0C / STD-F3C socket from the side, for VL extension cable with Wieland connector GST 18i 3p.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
Technical data

Technical data

Built-in variants Installation part/plug connection
Colour Black
Colour of the coding/contact insert Black
Colour of the separate adapter Black
Contact material CuZn
Direction of insertion Straight
Halogen-free yes

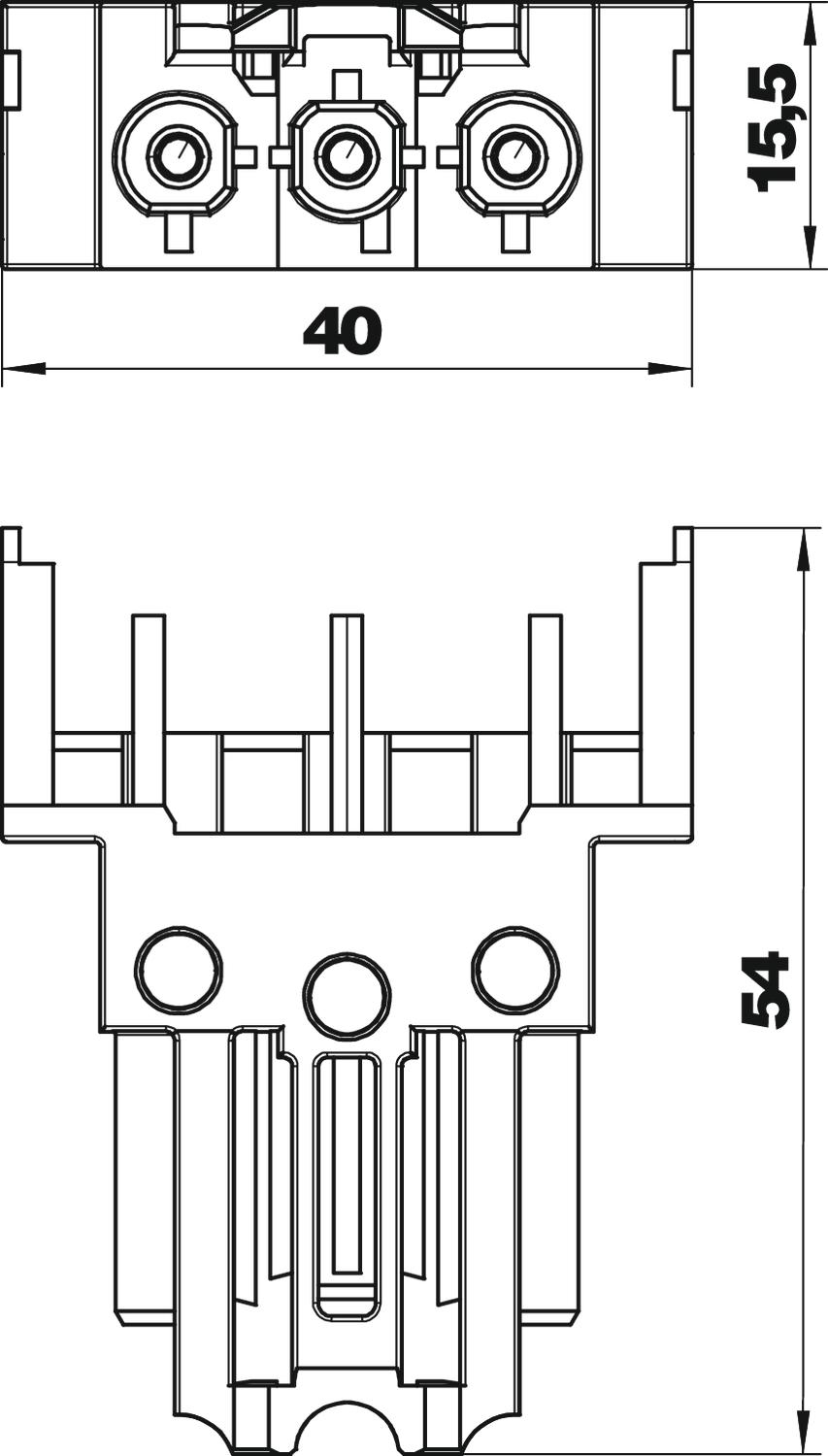

Height 15,5 mm
Length 54 mm
Material Polyamide
Mechanical encoding yes
Nominal current 16 A
Nominal voltage 250 V
Pin labelling L, N, PE
Plug-in system GST18
Pole number 3
Protection rating IP20
Surface treatment of the contacts Tin-plated
Thread connection dimension No threaded connection
Type of locking Integrated in plug connector
Version of the device connection socket
Width 40 mm
All types

All types

Types Item no. Quantity SSU
BTA-SKS S1 SW 6117190
10 piece
BTA-SKS S1 W 6117191
10 piece
