Connection and end piece

Item no. 5304997 | EAN 4012195417071

5304997 / 5011
11 mm
Product description
Product description
• For attaching to steel structures or bolting to earthing fixed points

• For attachments: Round conductor Rd 8-10 and flat conductor FL30 x 3.5

• 2x attaching holes Ø 11 mm

• 1x attaching hole Ø D mm
Technical data

Technical data

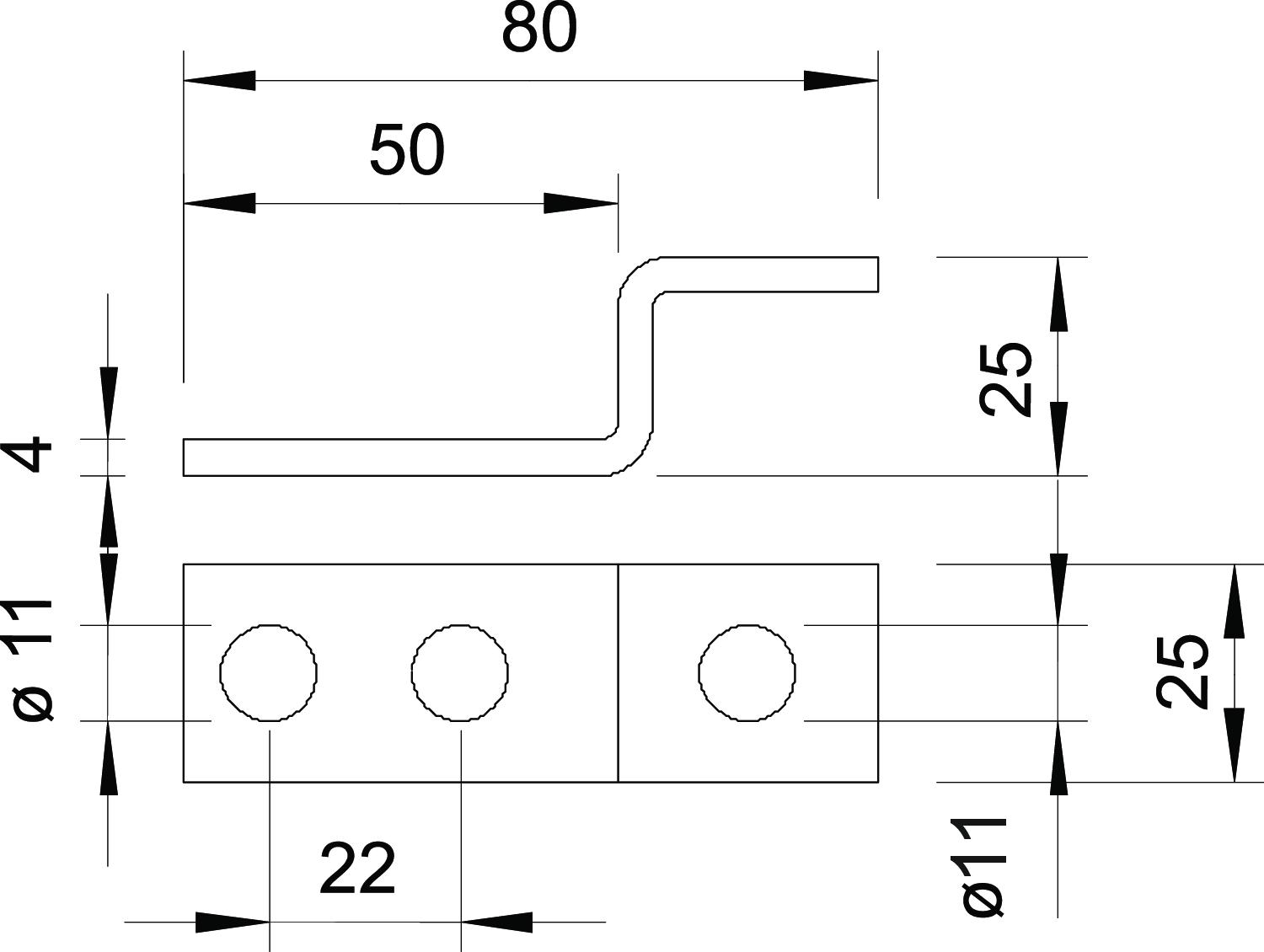

Dimension 80x25x25
Dimension d min. 11 mm
Intermediate plate no
Material Steel
Suitable for connection Round conductor Rd 8-10 / flat conductor Fl 30
Surface Hot-dip galvanised
Type of connector End piece
Type of fastening screw Miscellaneous
All types

All types

Types Dimension d min. Item no. Quantity SSU
5011 11 mm 5304997
10 piece
Downloads

Download

Download

EU declaration of conformity 5011 / 5304997 , 0.06MB , pdf

5011 / 5304997
