Connection and end piece A4
Item no. 5334942 | EAN 4012195959663
- Product description
-
Product description
• For attaching to steel structures or bolting to fixed earthing terminals
• For attachments: Round conductor Rd 8-10 and flat conductor FL 30 x 3.5
• 2 attaching holes Ø 11 mm
• 1 attaching hole Ø D mm
- Technical data
-
Technical data
Dimension M12 Intermediate plate no Material Stainless steel Suitable for connection Round conductor Rd 8-10 / flat conductor Fl 30 Type of connector End piece Type of fastening screw Miscellaneous Dimensions

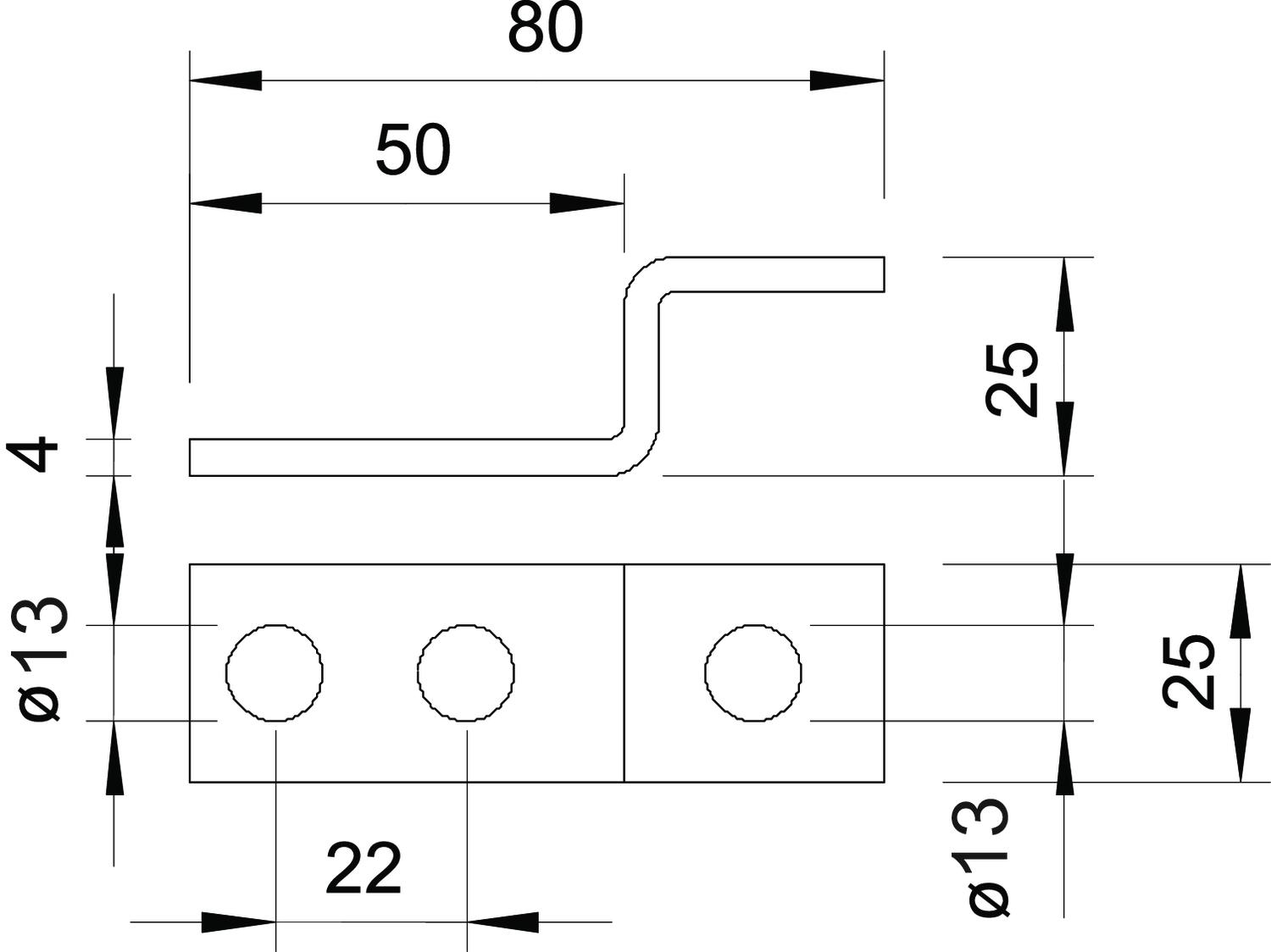

Dimension d min. 13 mm - All types
- Downloads
-
Data sheet 5011 VA M12 / 5334942 , 0.13MB , pdfDeclaration of conformity 5011 VA M12 / 5334942 , 0.06MB , pdfREACH Declaration of conformity 5011 VA M12 / 5334942 , 0.12MB , pdfRoHS Declaration of conformity 5011 VA M12 / 5334942 , 0.12MB , pdf
