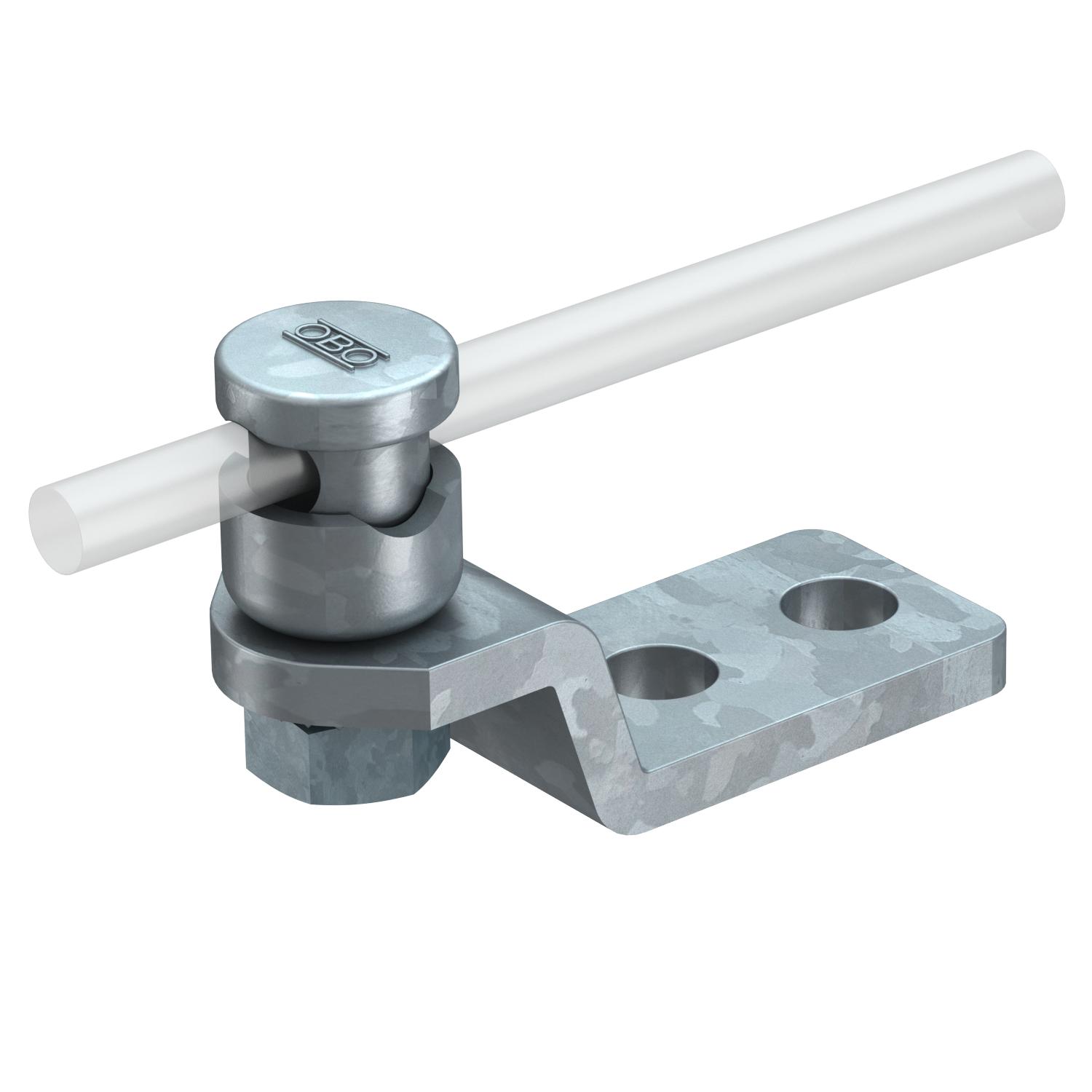

Connection and end piece with connector and pressure trough

Item no. 5304660 | EAN 4012195817758

5304660 / 5005 N-FT
H/100 kA
Rd 8-10 mm
Product description
Product description

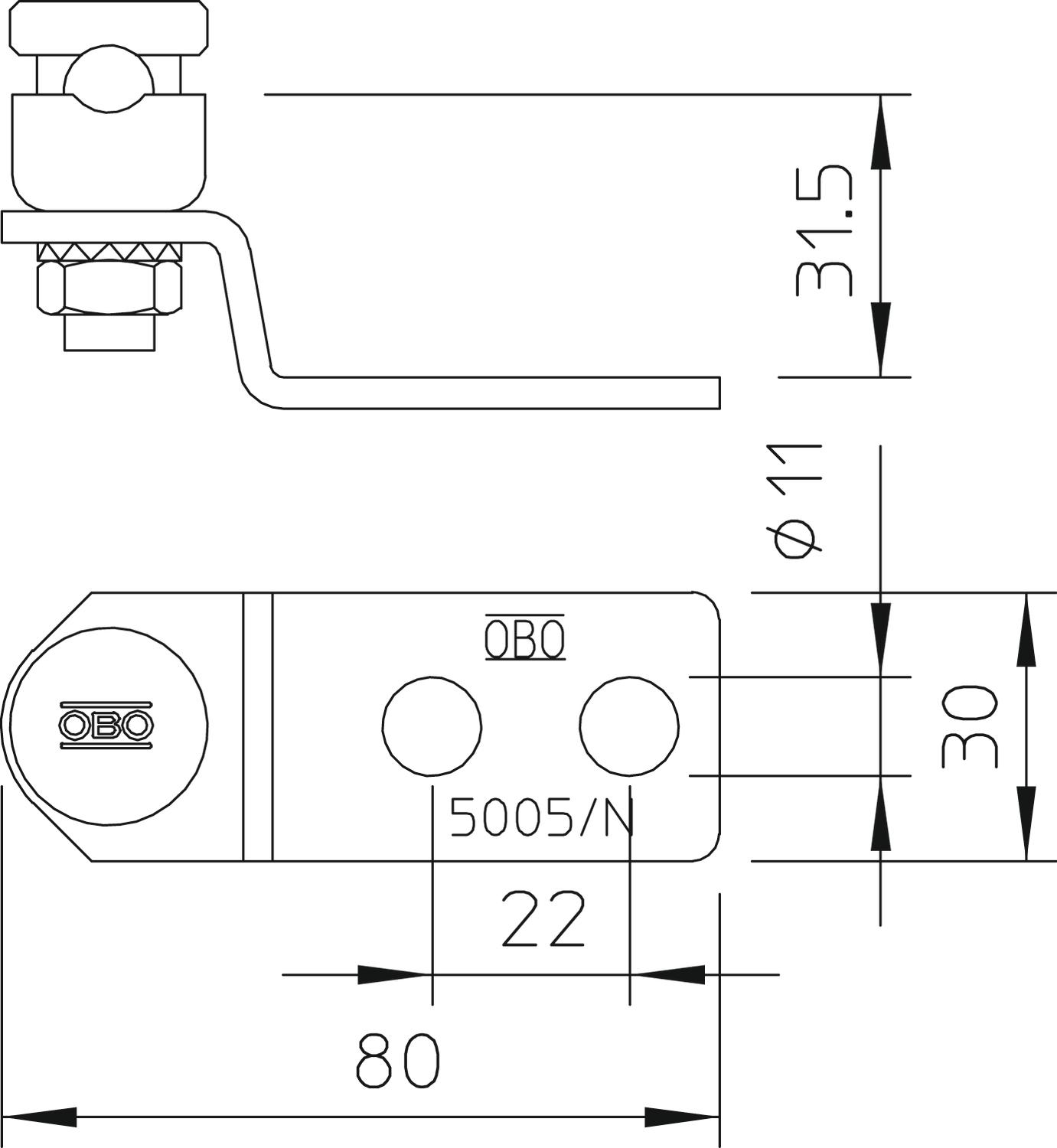

• With 2 attaching holes Ø 11 mm
• Including pre-mounted connector 5001 N
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)

  • Lightning current-tested
Technical data

Technical data

Dimension 8-10mm
Fit Rd 8-10 mm
Intermediate plate no
Lightning current carrying capacity H/100 kA
Material Steel
Suitable for connection Miscellaneous
Surface Hot-dip galvanised
Type of connector End piece
Type of fastening screw Hexagonal bolt
All types

All types

Types Lightning current carrying capacity Fit Item no. Quantity SSU
5005 N-FT H/100 kA Rd 8-10 mm 5304660
10 piece
Downloads

Download

Download
Download

EU declaration of conformity 5005 N-FT / 5304660 , 0.06MB , pdf
