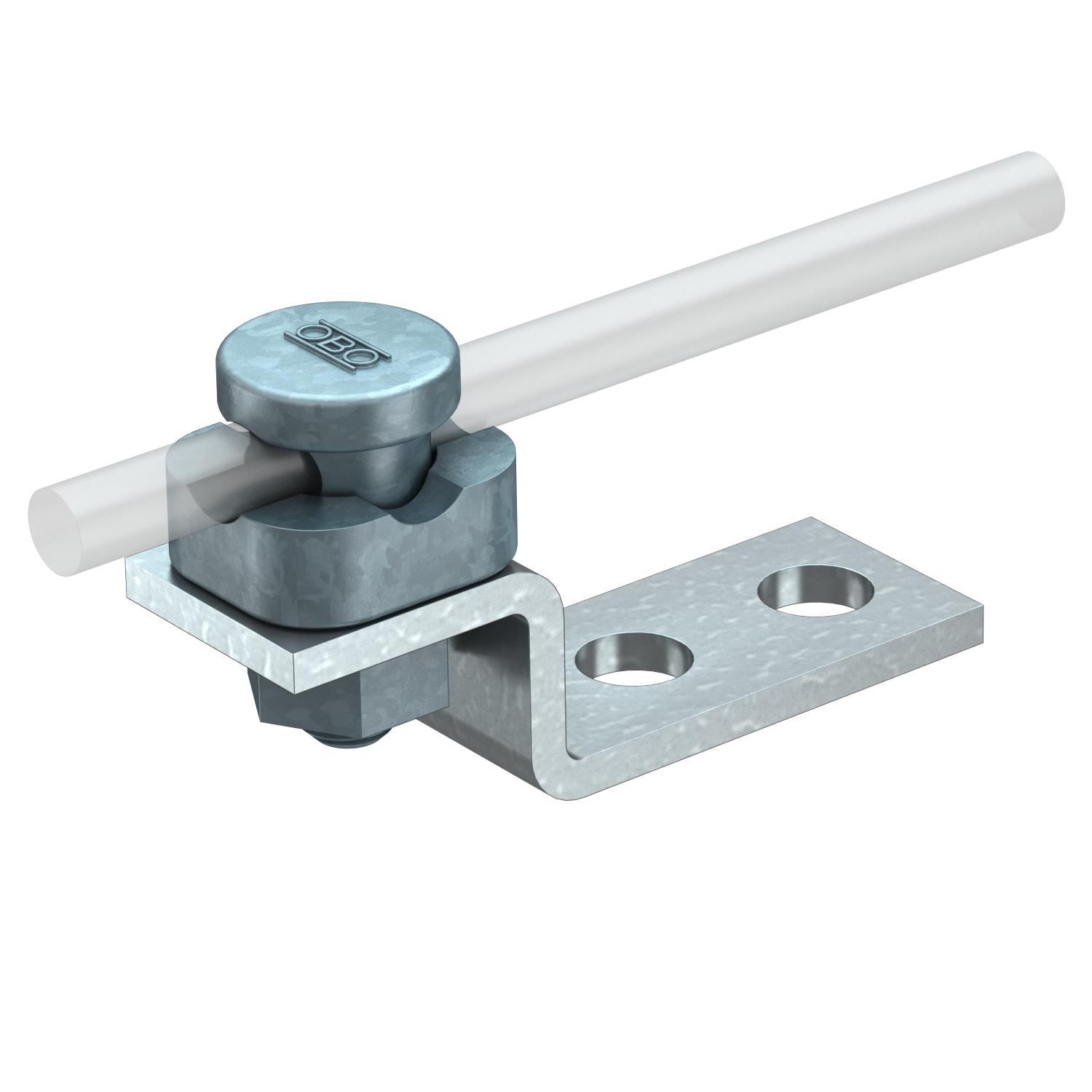

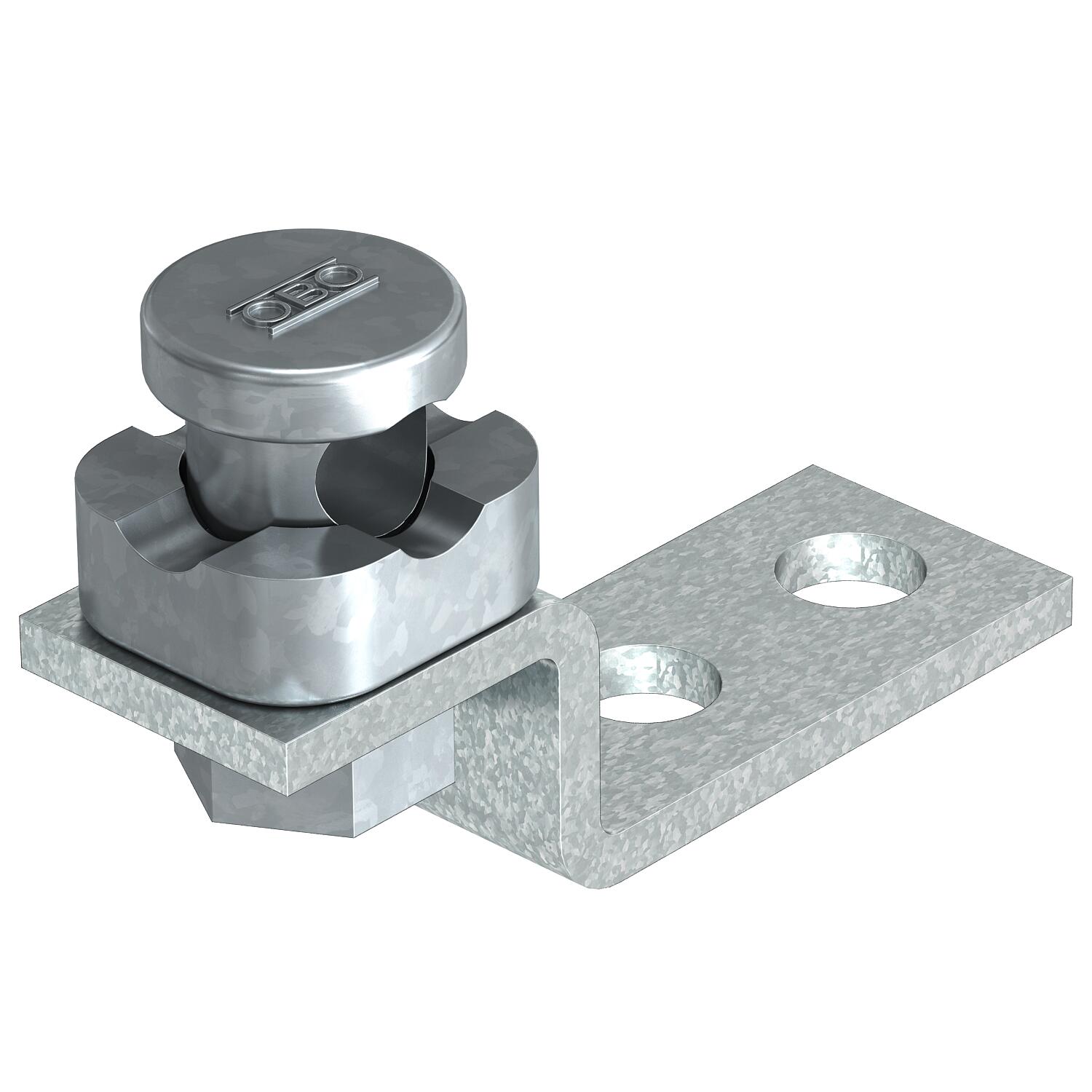

Connection and end piece with connector

Item no. 5304970 | EAN 4012195416951

5304970 / 5009
H/100 kA
Rd 8-10 mm
Product description

Product description

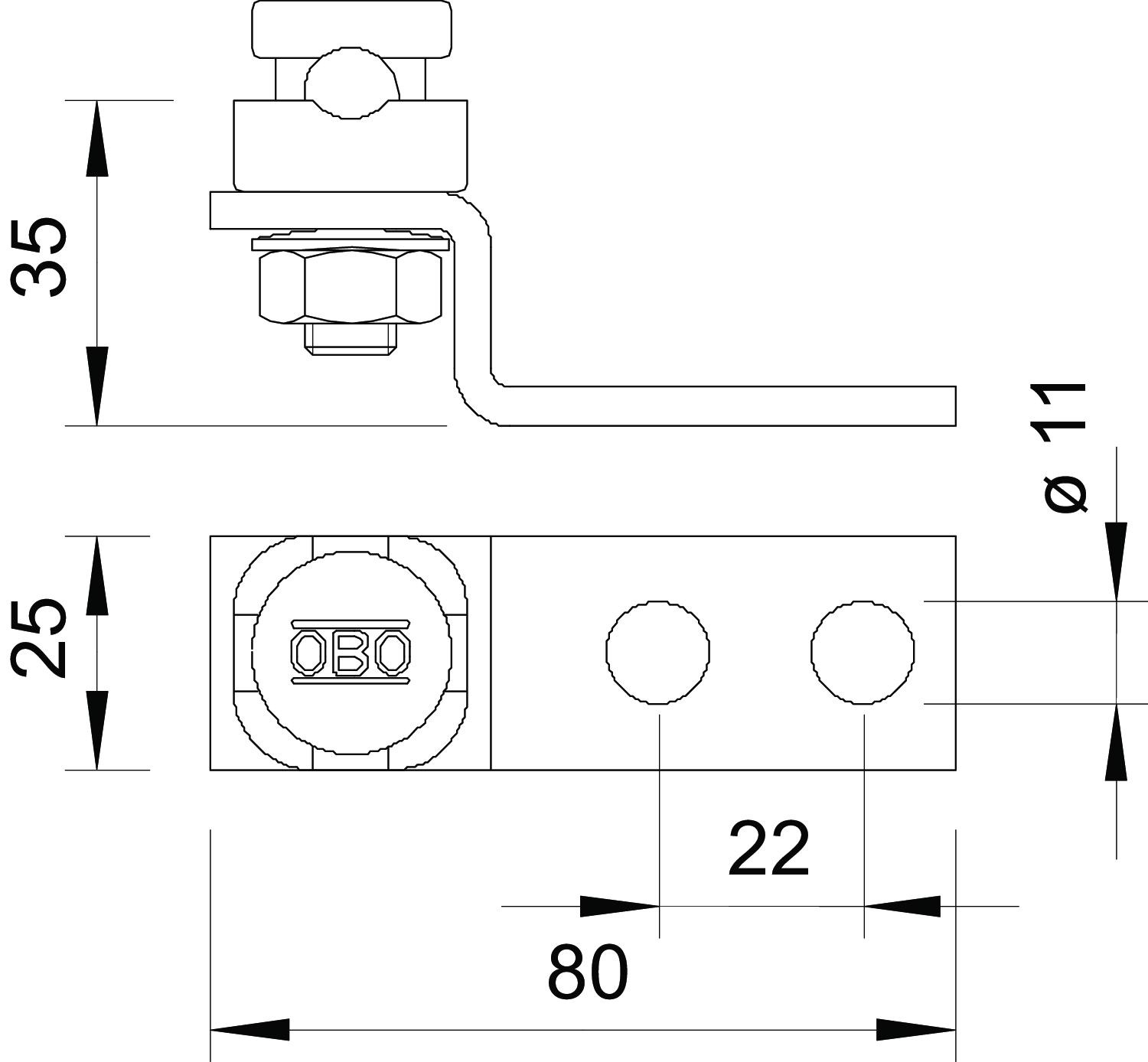

• With 2 attaching holes Ø 11 mm
• Installed with connector (single-piece) type 5001 DIN-FT
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)

  • Lightning current-tested
Technical data

Technical data

Dimension 8-10mm
Fit Rd 8-10 mm
Intermediate plate no
Lightning current carrying capacity H/100 kA
Material Steel
Suitable for connection Miscellaneous
Surface Hot galvanized
Type of connector End piece
Type of fastening screw Clamping screw
All types

All types

Types Lightning current carrying capacity Fit Item no. Quantity SSU
5009 H/100 kA Rd 8-10 mm 5304970
10 piece
