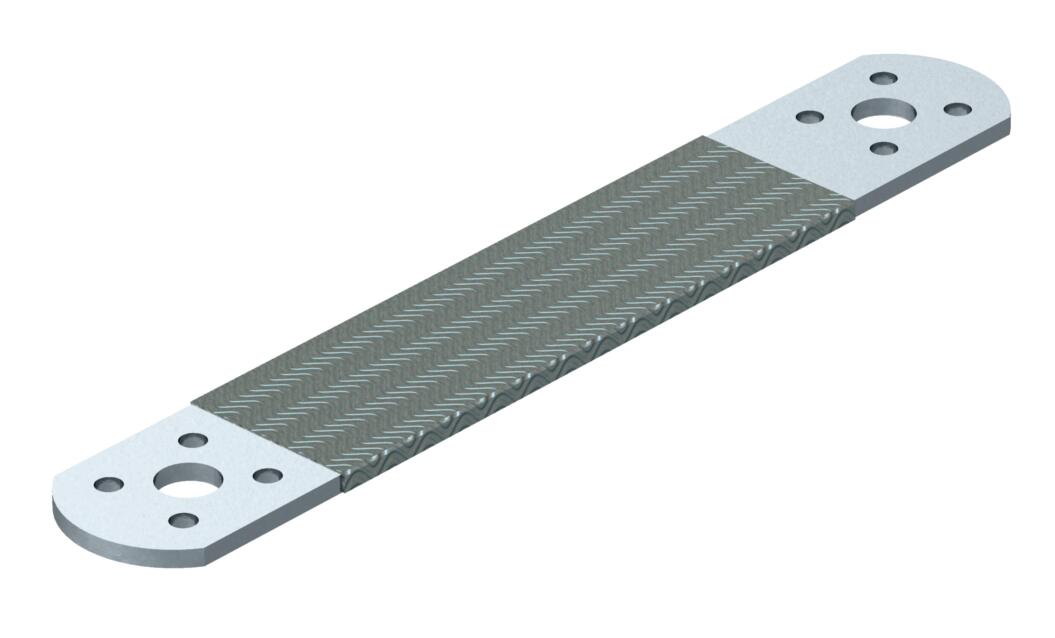

Connection and expansion strip

Item no. 5331501 | EAN 4012195423430

5331501 / 856
190 mm
Product description

Product description

• Copper strip 35 mm², tin-plated
• Highly flexible with rigid ends

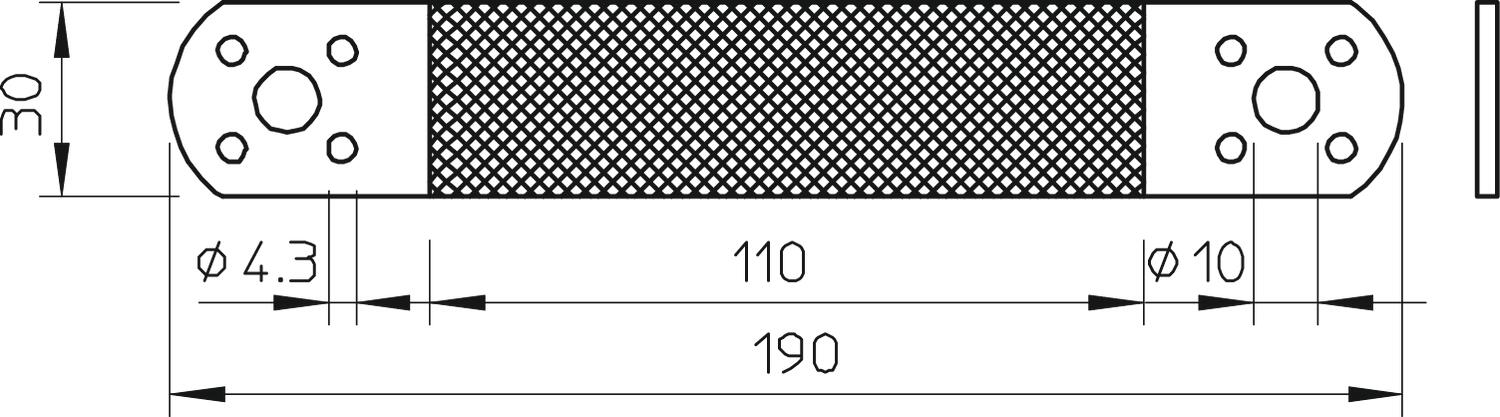

• Each end with 1 fastening hole Ø 10 mm and 4 fastening holes Ø 4.3 mm
  • Lightning current-tested
Technical data

Technical data

Dimension 35mm²
Height 3 mm
Length 190 mm
Material Copper
Width 30 mm
All types

All types

Types Length Item no. Quantity SSU
856 190 mm 5331501
10 piece
Downloads

Download

Download

REACH Declaration of conformity 856 / 5331501 , 0.12MB , pdf
RoHS Declaration of conformity 856 / 5331501 , 0.12MB , pdf

856 / 5331501
Download
