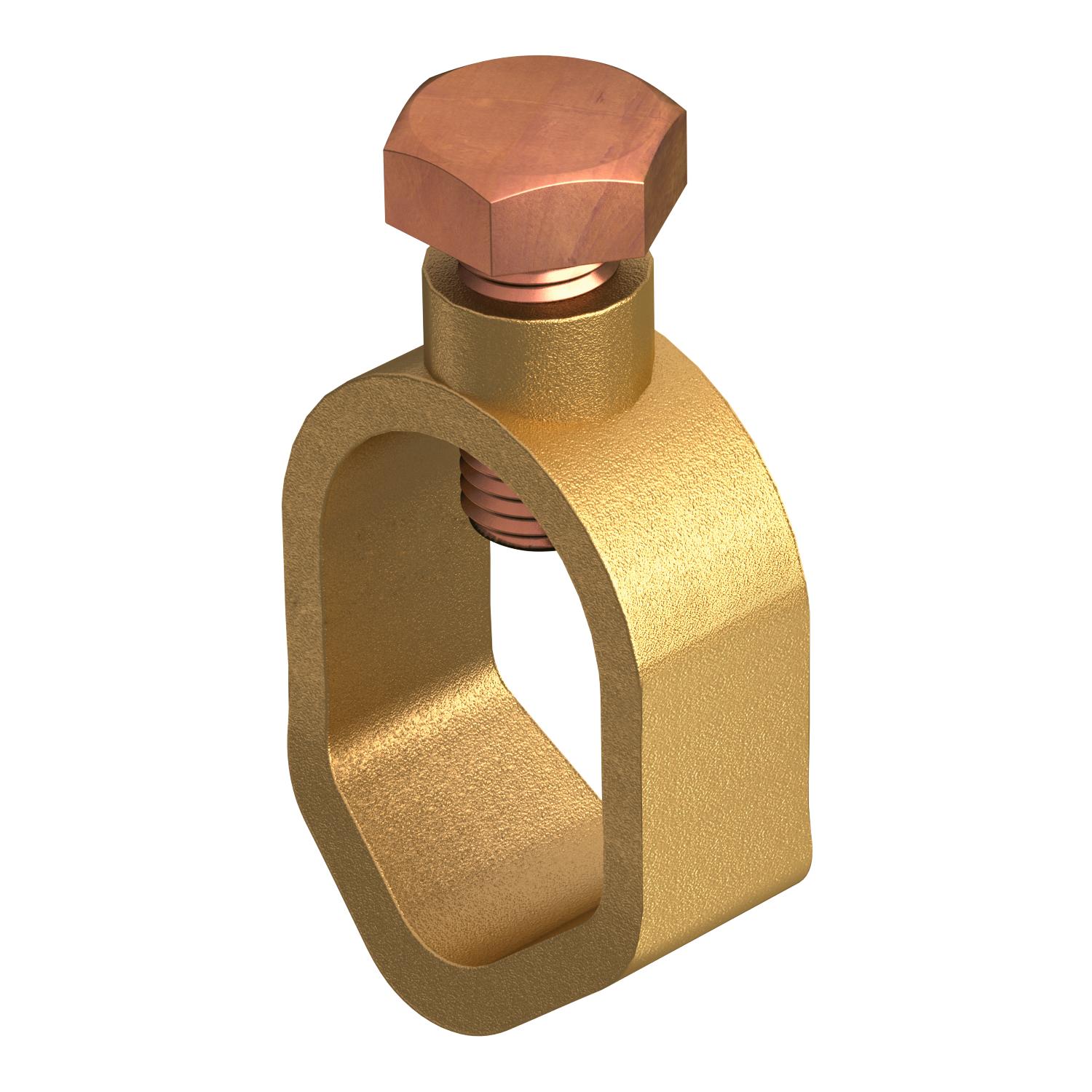

Connection clamp
Item no. 5001594 | EAN 4012196431267
- Product description
-
Product description
• For connection of the copper-plated earth rod, type 219 16 CU, with cables/round conductors 16 mm² to 70 mm²
• Type A terminal
- Technical data
-
Technical data

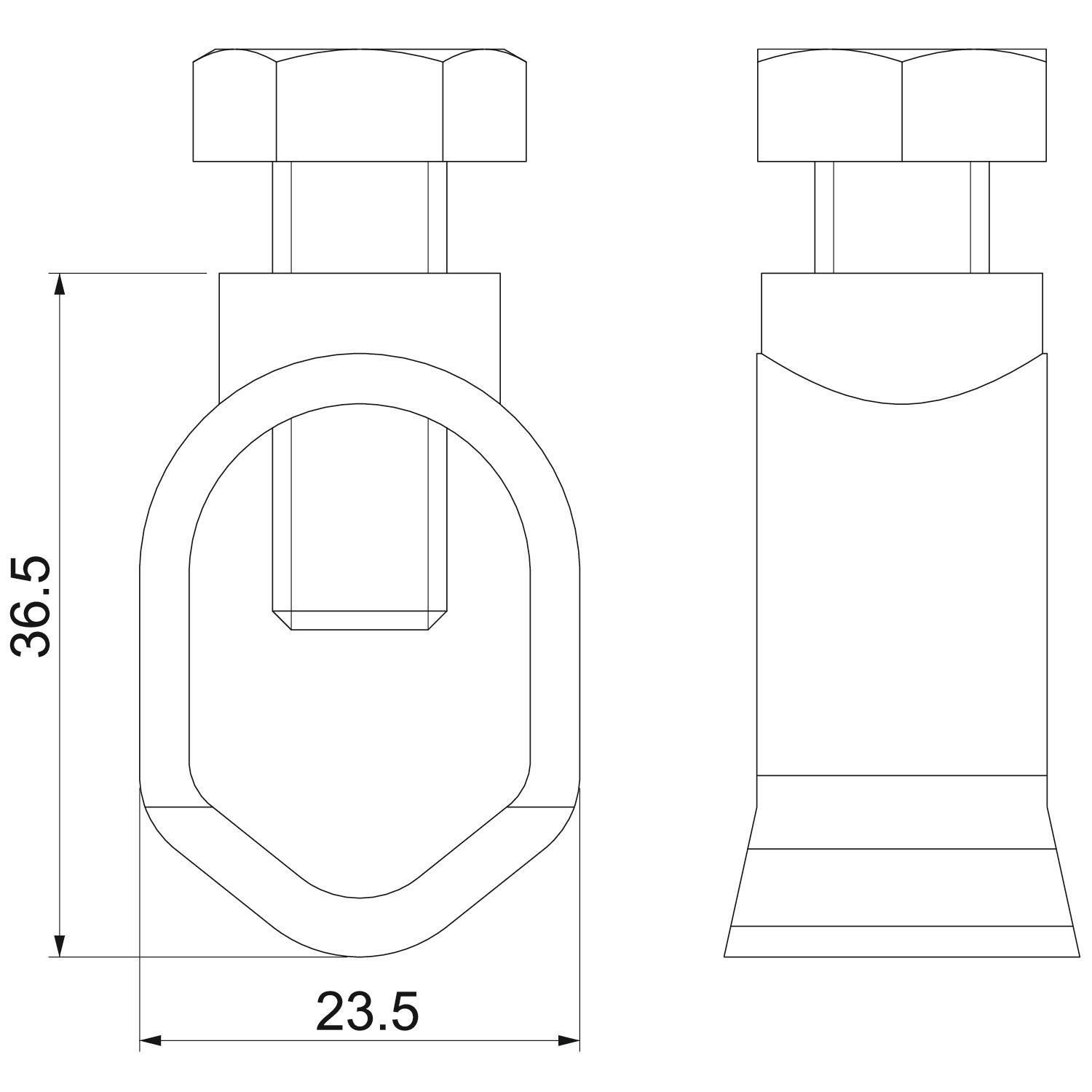

Connection Round conductor Dimension 24x37x24 Fit Rd 14,2 mm Intermediate plate no Material Red bronze Type Connection sleeve - All types
- Downloads
-
Declaration of conformity 2745 16 70 / 5001594 , 0.06MB , pdf
