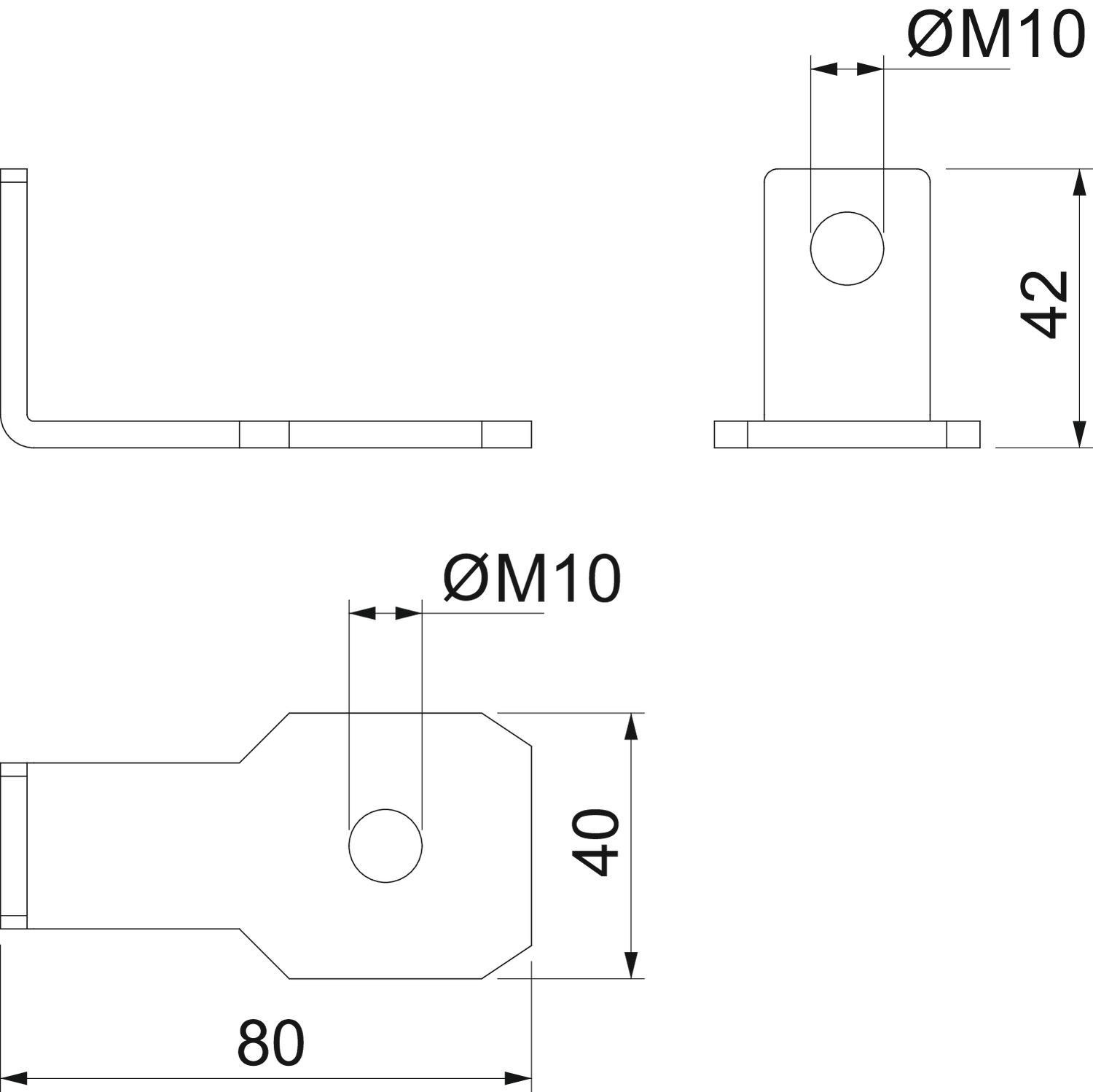

Connection clamp AB EX ISG, angled

Item no. / Types

Drill hole diameter, min.

Version for

Product description

Product description

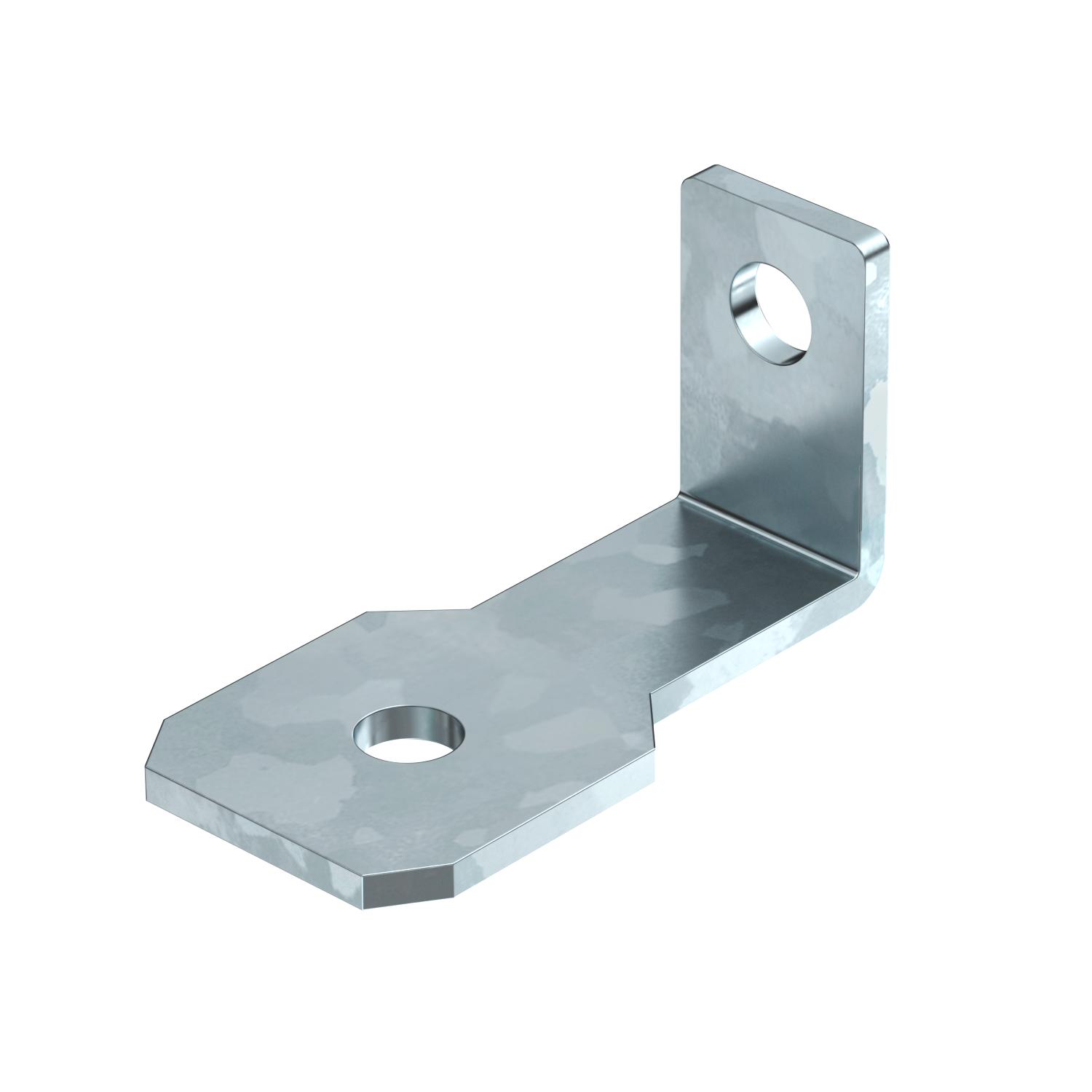

Connection clamp for mounting the OBO Ex spark gap, type EX ISG, on insulating flanges and insulating pieces.

Technical data

All types

All types

Types	Drill hole diameter, min.	Version for	Item no.	Quantity	SSU
AB EX ISG SW M10	11 mm	For M10 bolt	5240380	piece	10 piece
AB EX ISG SW M12	14 mm	For M12 bolt	5240382	piece	10 piece
AB EX ISG SW M16	18 mm	For M16 bolt	5240386	piece	10 piece
AB EX ISG SW M20	22 mm	For M20 bolt	5240390	piece	10 piece
AB EX ISG SW M24	26 mm	For M24 bolt	5240394	piece	10 piece
