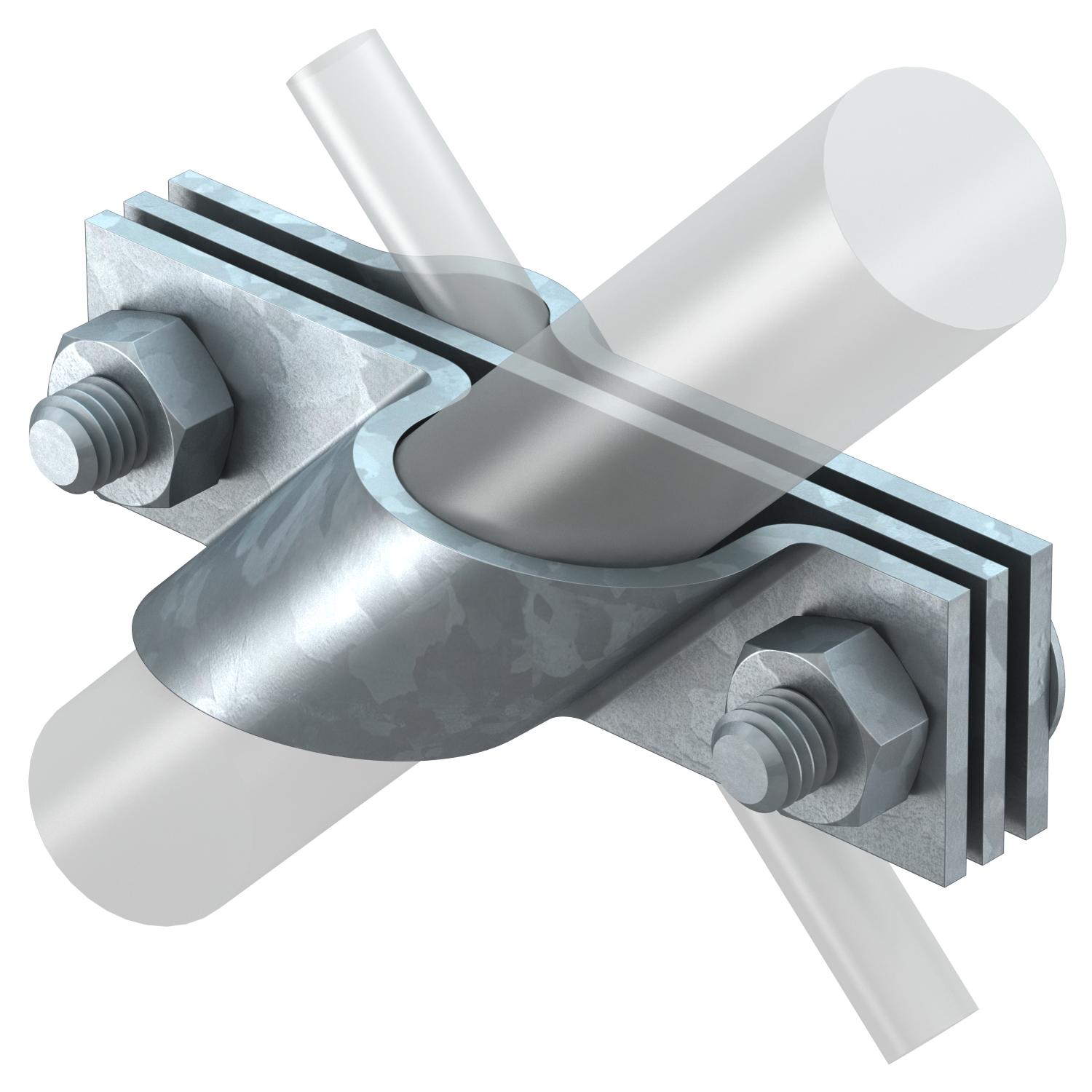

Connection clamp for earth rod, universal FT

Item no. 5001668 | EAN 4012195372974

Product description
Product description
• Suitable for attaching round conductors Rd 8-10 or flat conductors to FL 40
• With separator plate
• Installed with 2 hexagonal bolts M10 x 30 and 2 hexagonal nuts M10
  • Lightning current-tested
Technical data

Technical data

Clamping range, max. 10 mm
Clamping range, min. 8 mm
Dimension 25mm

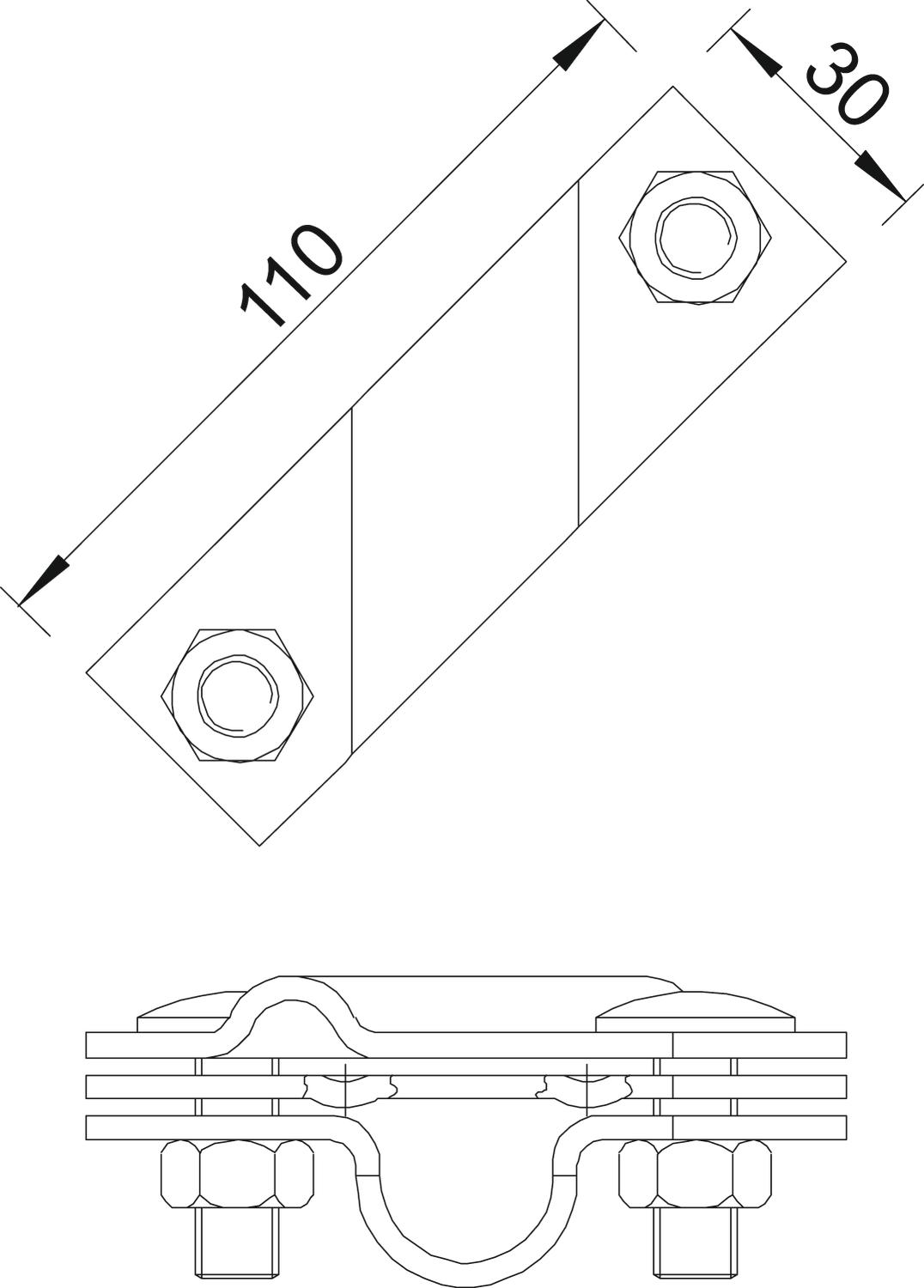

Dimension A 110 mm
Earthing connection diameter 25 mm
Fit Rd 8-10/FL40 mm
for earth rods 25 mm
Intermediate plate yes
Material Steel
Short-circuit current (50 HZ)(1 s;≤300°C) 8,5
Suitable for flat conductor width max. 10 mm
Suitable for flat conductor width min. 8 mm
Suitable for round conductor diameters, max. 10 mm
Suitable for round conductor diameters, min. 8 mm
Surface Hot-dip galvanised
Type Connection clip
All types

All types

Types for earth rods Item no. Quantity SSU
2760 20 FT 20 mm 5001641
5 piece
2760 25 FT 25 mm 5001668
5 piece
2760 B-20 FT 20 mm 5001749
20 piece
