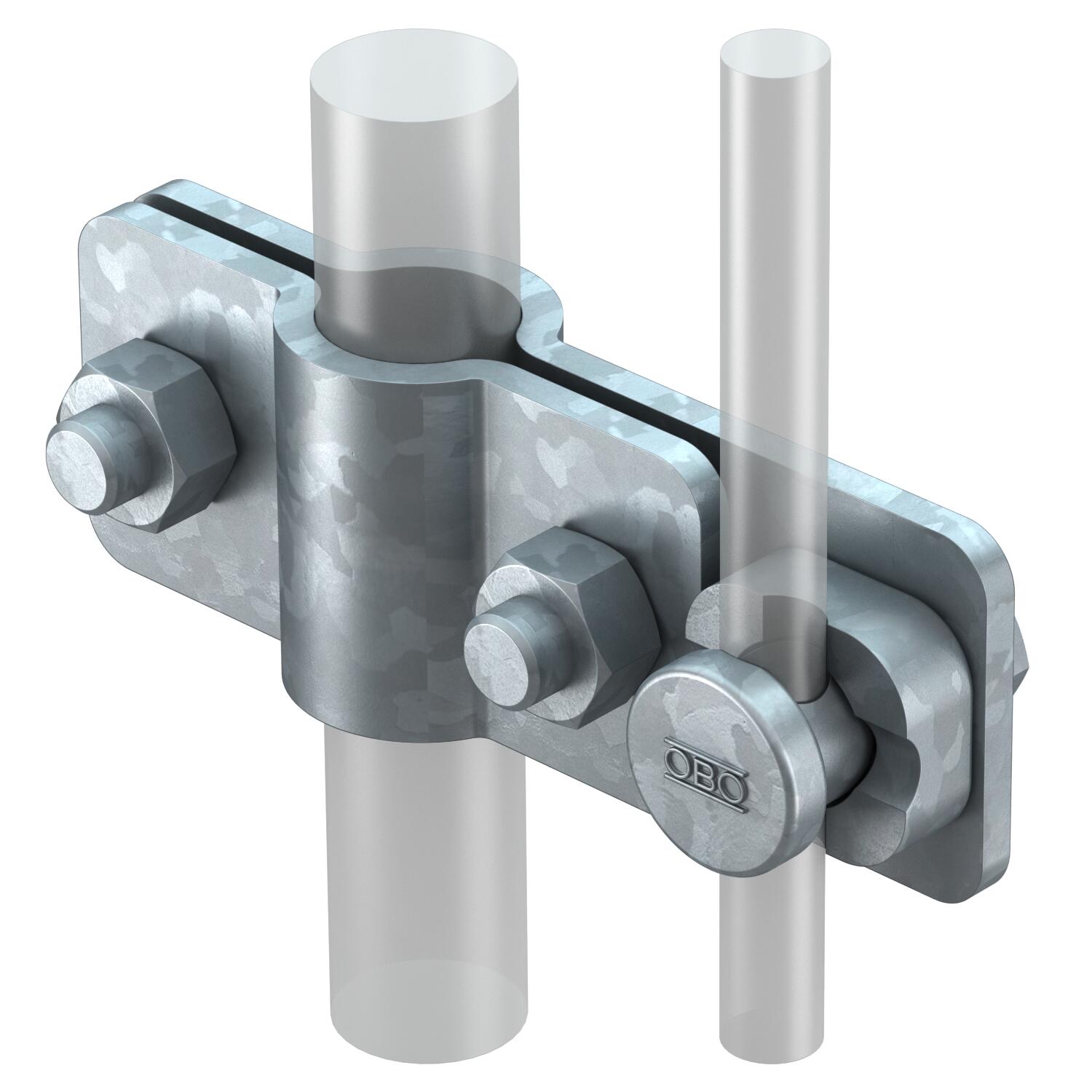

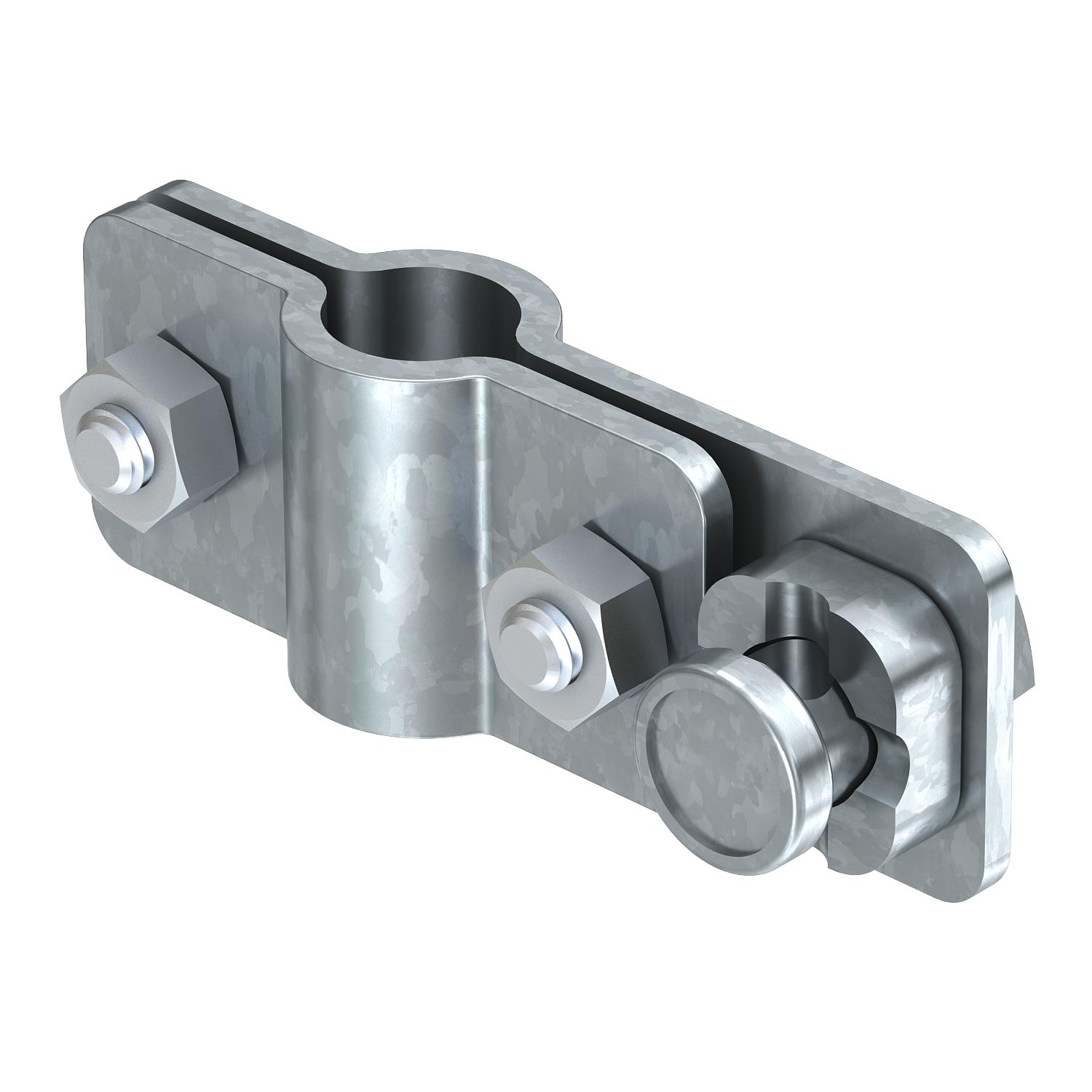

Connection clip for earthing rod to round cables Rd 8−10
Item no. 5001218 | EAN 4012195372370
- Product description
-
Product description• ST, BP, OMEX and LightEarth system
• On round conductor Rd 8-10
• Incl. connector, type 5001 DIN
- Technical data
-
Technical data

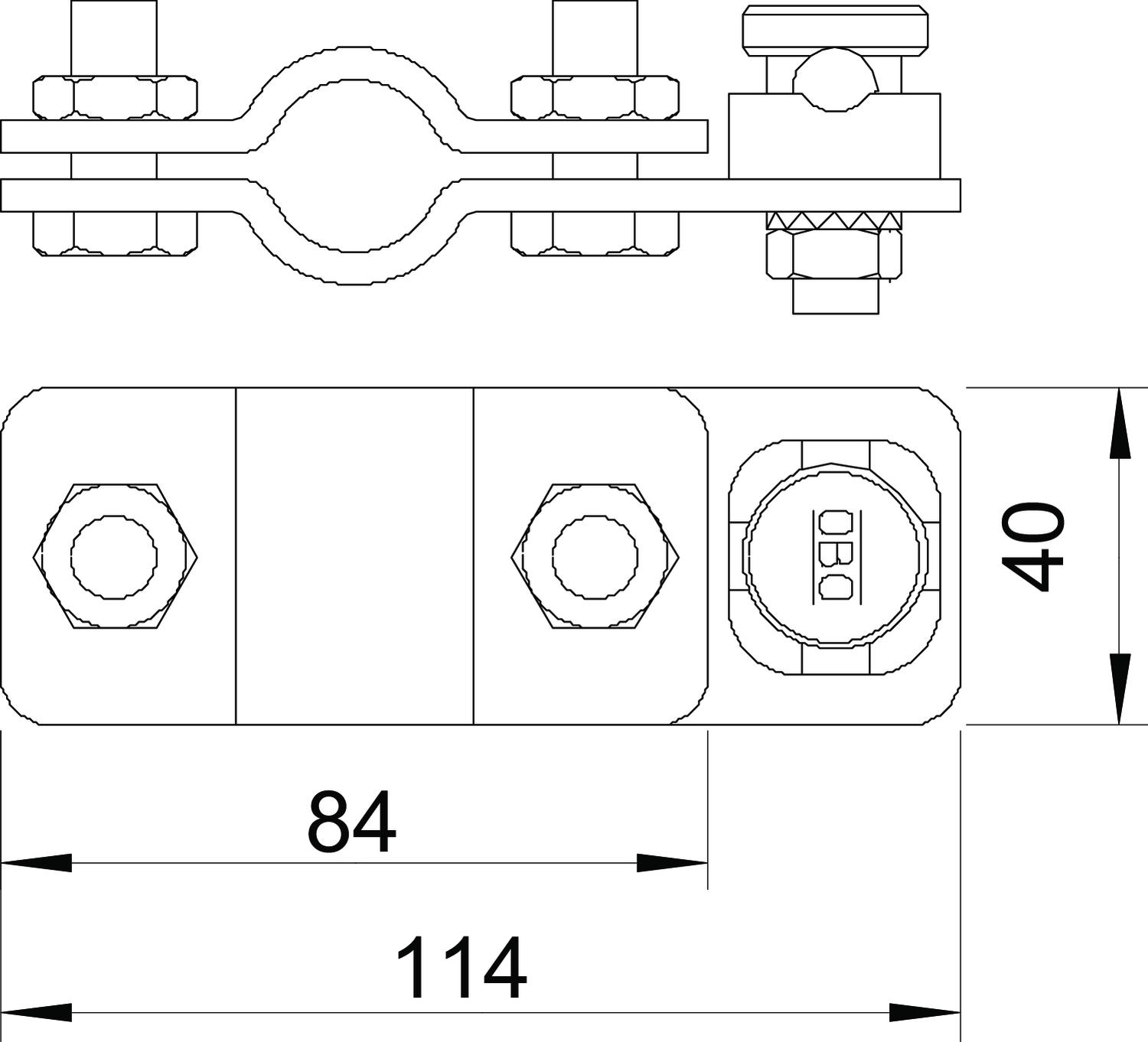

Clamping range, max. 10 mm Clamping range, min. 8 mm Dimension 20mm Dimension A 84 mm Dimension B 114 mm Earthing connection diameter 20 mm Fit Rd 8-10 mm for earth rods 20 mm Intermediate plate no Material Steel Suitable for flat conductor width max. 10 mm Suitable for flat conductor width min. 8 mm Suitable for round conductor diameters, max. 10 mm Suitable for round conductor diameters, min. 8 mm Surface Hot-dip galvanised Type Connection clip - All types
- Downloads
-
Data sheet 2710 20 FT / 5001218 , 0.23MB , pdfEU declaration of conformity 2710 20 FT / 5001218 , 0.06MB , pdfREACH Declaration of conformity 2710 20 FT / 5001218 , 0.12MB , pdfRoHS Declaration of conformity 2710 20 FT / 5001218 , 0.12MB , pdf
