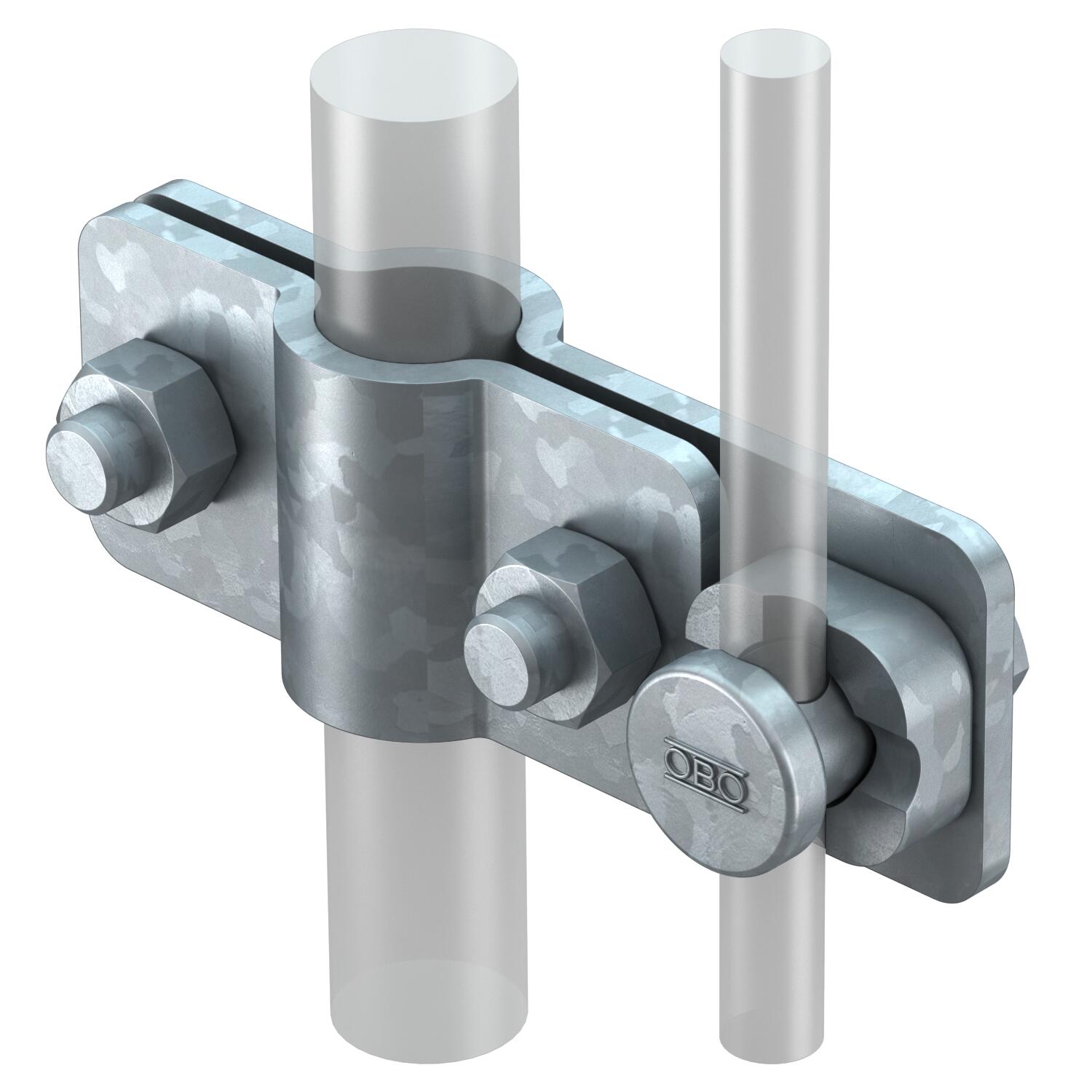

Connection clip for earthing rod to round cables Rd 8−10

Item no. 5001226 | EAN 4012195372431

Product description
Product description
• ST, BP, OMEX and LightEarth system

• On round conductor Rd 8-10

• Incl. connector, type 5001 DIN
Technical data

Technical data

Clamping range, max. 10 mm
Clamping range, min. 8 mm
Dimension 25mm

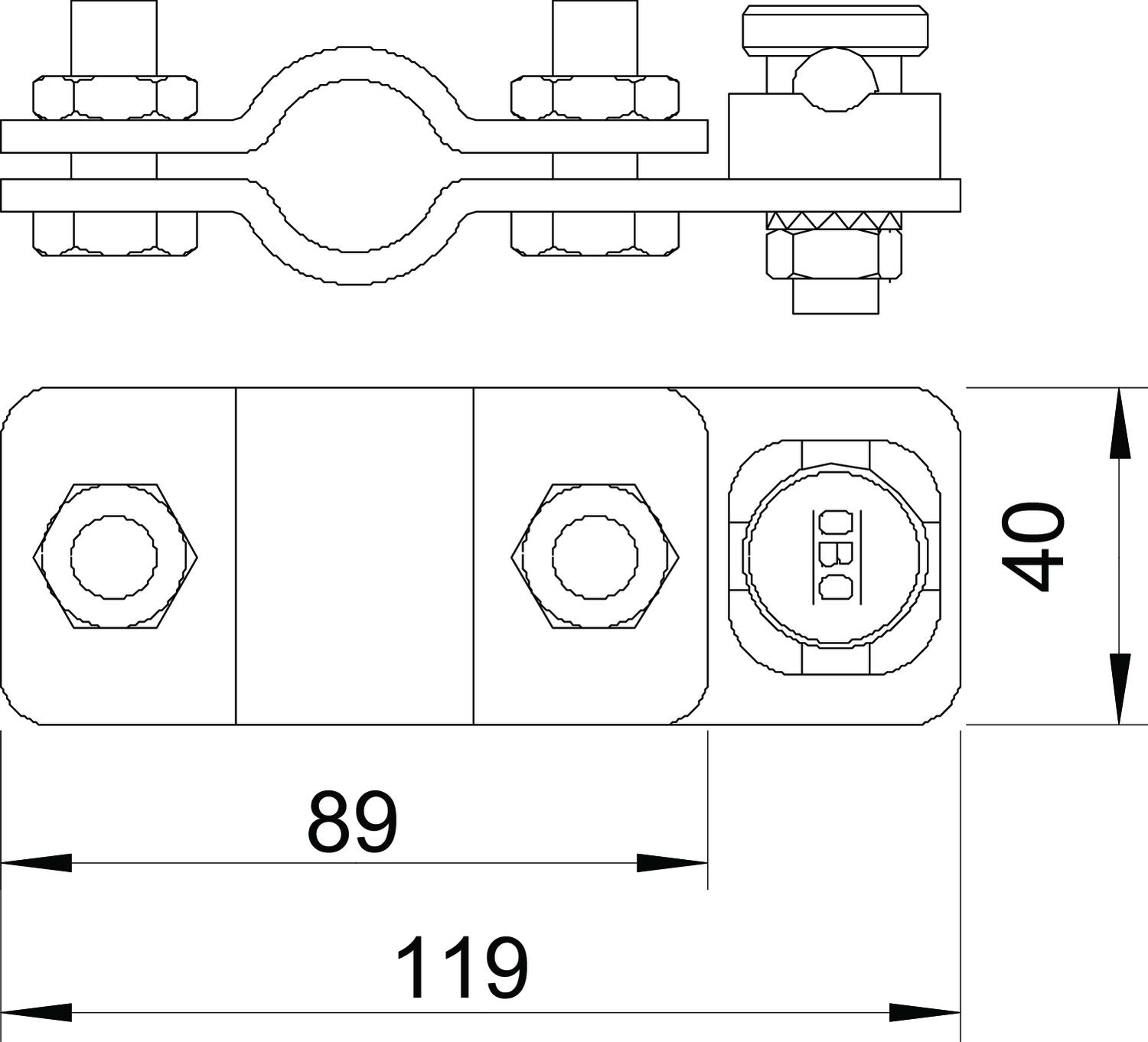

Dimension A 89 mm
Dimension B 119 mm
Earthing connection diameter 25 mm
Fit Rd 8-10 mm
for earth rods 25 mm
Intermediate plate no
Material Steel
Suitable for flat conductor width max. 10 mm
Suitable for flat conductor width min. 8 mm
Suitable for round conductor diameters, max. 10 mm
Suitable for round conductor diameters, min. 8 mm
Surface Hot-dip galvanised
Type Connection clip
All types

All types

Types for earth rods Item no. Quantity SSU
2710 20 FT 20 mm 5001218
5 piece
2710 25 FT 25 mm 5001226
5 piece
