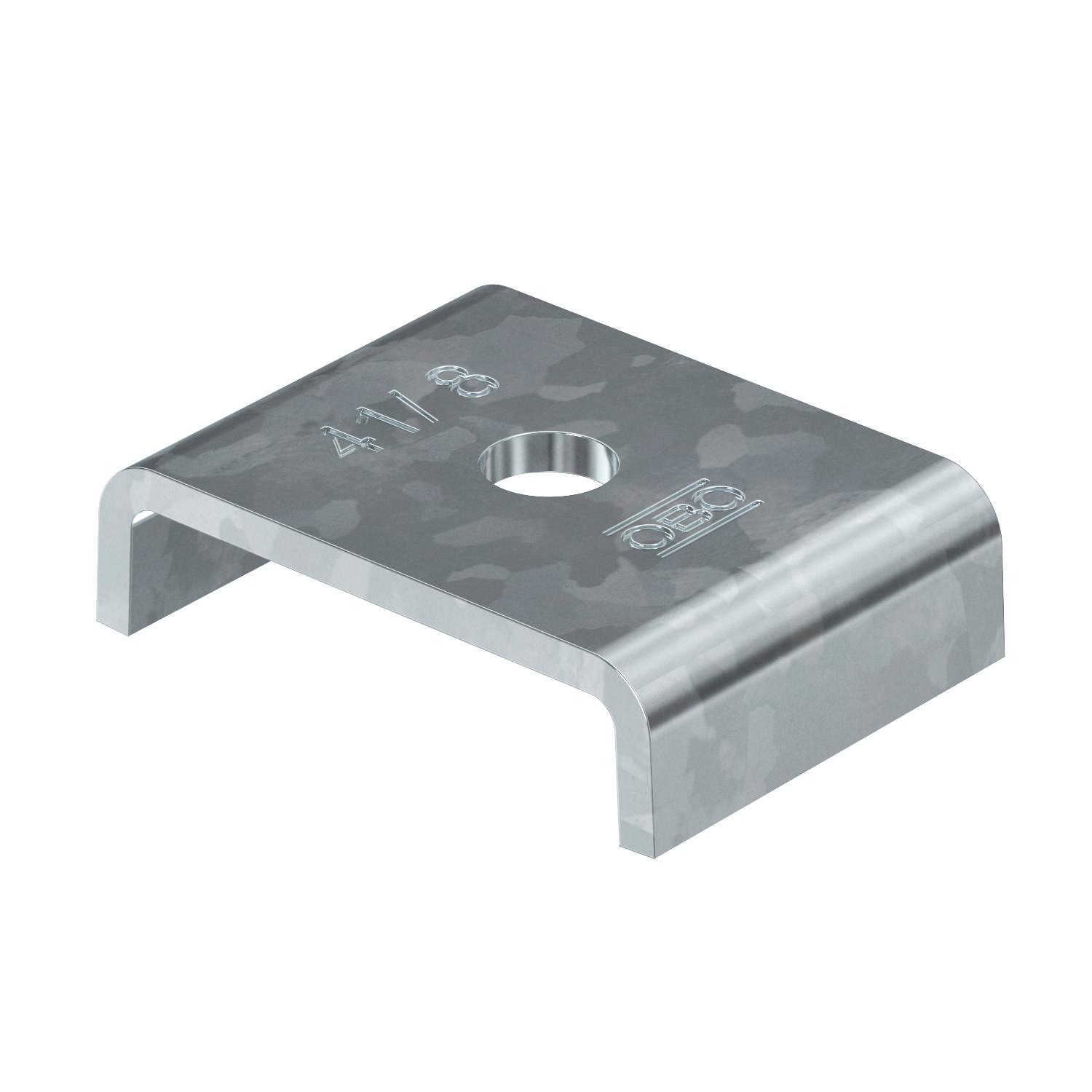

Connection component for mounting rails MS41
Item no. 7207052 | EAN 4012196675289
- Product description
-
Product description
Component for mounting threaded rods on mounting rails MSL4141P, MS4141P and MS4121P. For mounting cable tray and mesh cable tray systems above suspended fire protection ceilings in escape and rescue routes. If there is a fire, this prevents bending of the mounting rails. Suitable for threaded rods M8. No additional washer necessary.
- Technical data
-
Technical data

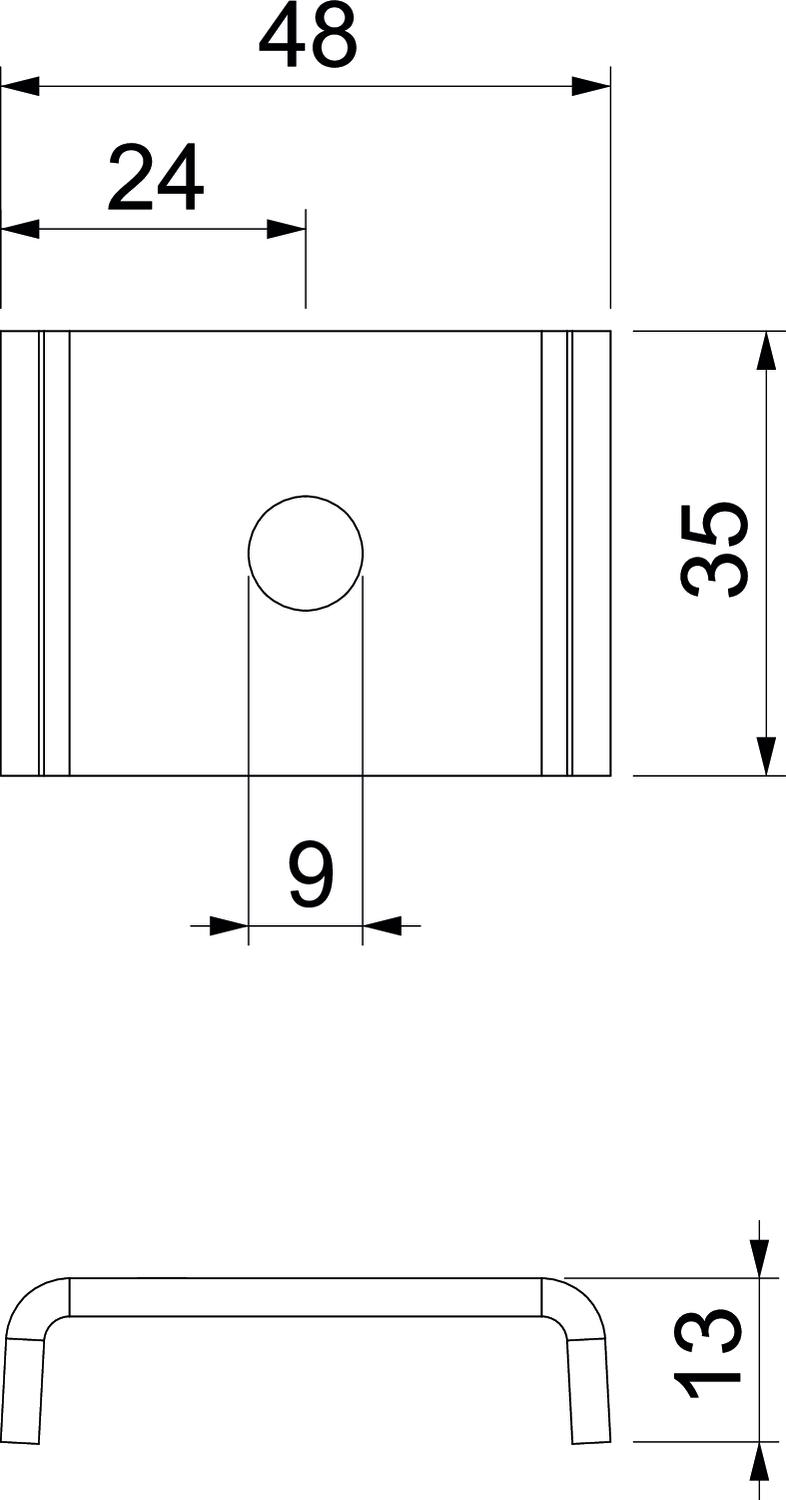

Dimension 48x35x13 Dimension d min. 9 mm Height 13 mm Length 48 mm Material Steel Surface Hot-dip galvanised Thread M8 Version for M8 Width 35 mm - All types
- Downloads
-
Data sheet PLF 41 8 FT / 7207052 , 0.15MB , pdfBrochure Brochure The Experts , 2.10MB , pdfDeclaration of conformity PLF 41 8 FT / 7207052 , 0.31MB , pdfNo invitation to tender text is available for this product.
