Connection component Steel | Hot-dip galvanised
morepic-1 morepic-2 video-1 video-2

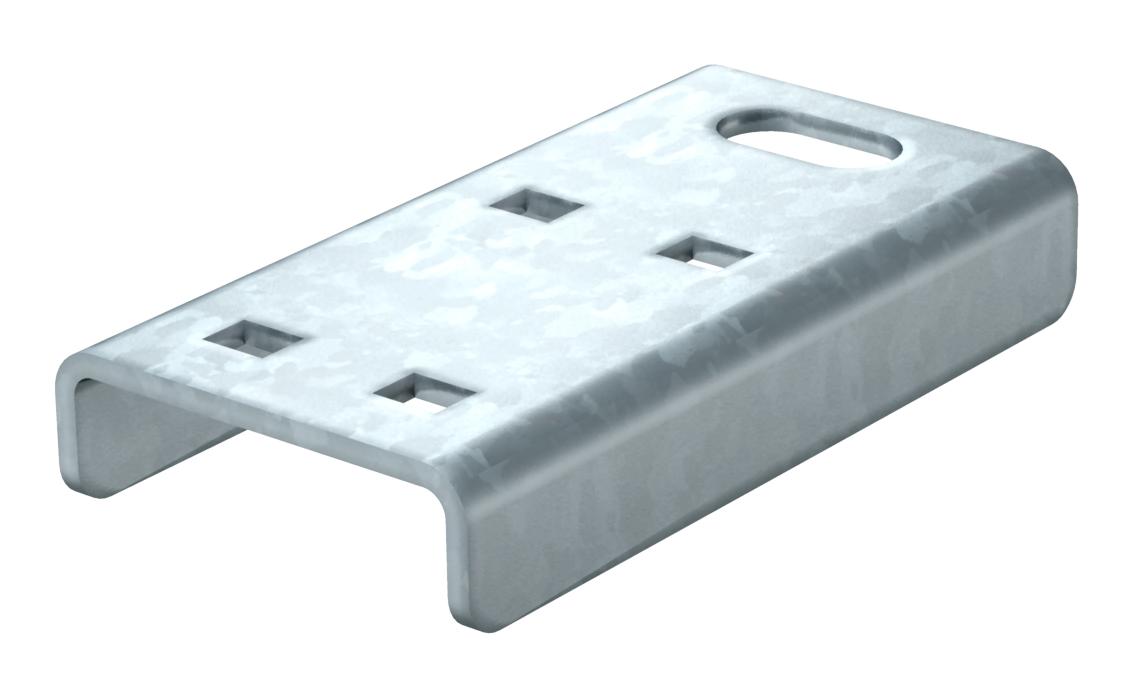

Connection component

Item no. 6364942 | EAN 4012196501731

Product description
Product description
The connection component is the connection between the threaded rod lock and the suspension system for the routing types with cable trays for the maintenance of electrical function to DIN 4102 Part 12. Including bolts and nuts.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

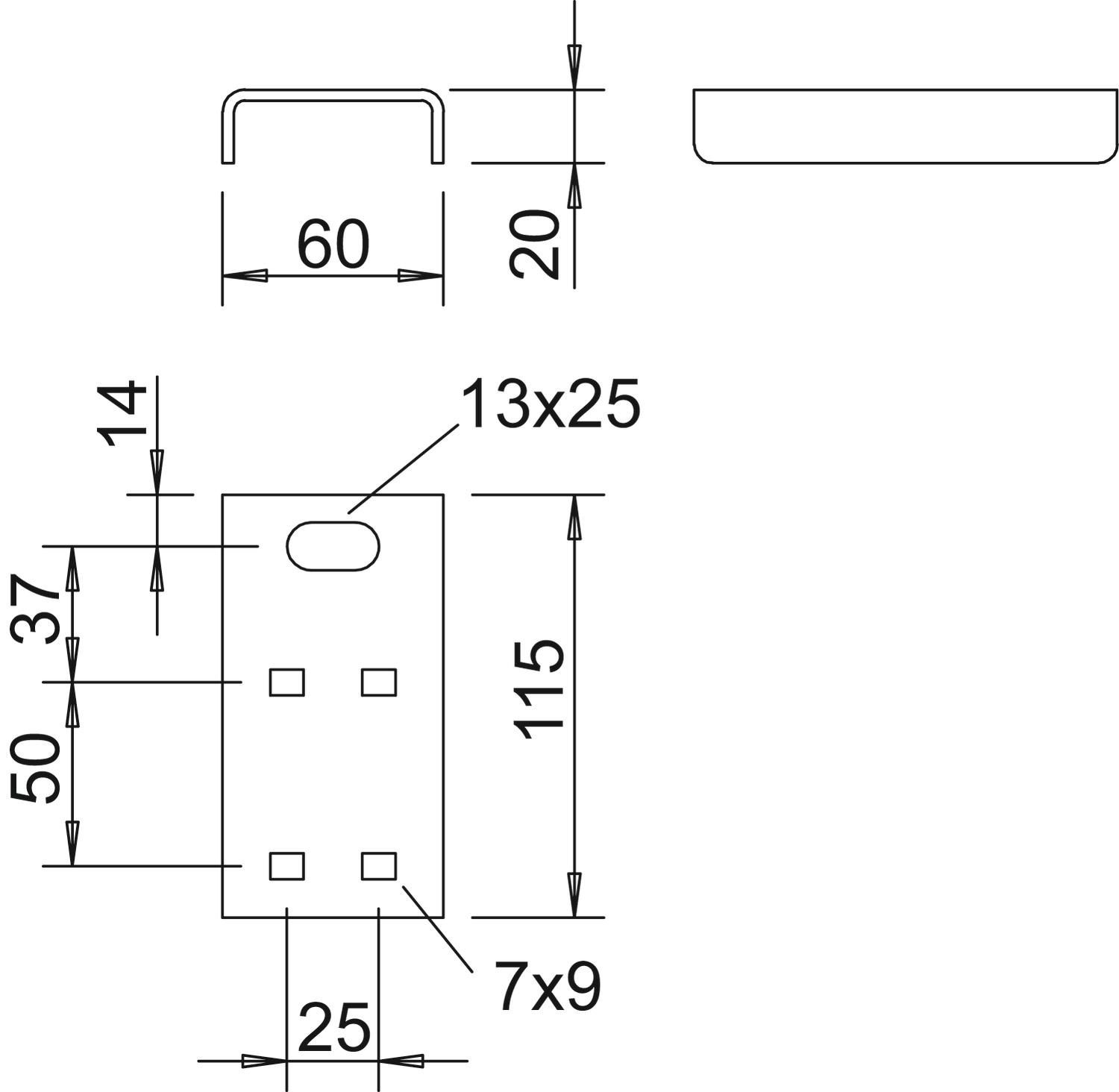

Dimension 115x60x20
Length 150 mm
Material Steel
Surface Hot-dip galvanised
All types

All types

Types Material Surface Item no. Quantity SSU
ABR FT Steel Hot-dip galvanised 6364942
20 piece
ABR VA4571 Stainless steel - 6364947
20 piece
Downloads

Download

Download
Download
Download
Download

No invitation to tender text is available for this product.
