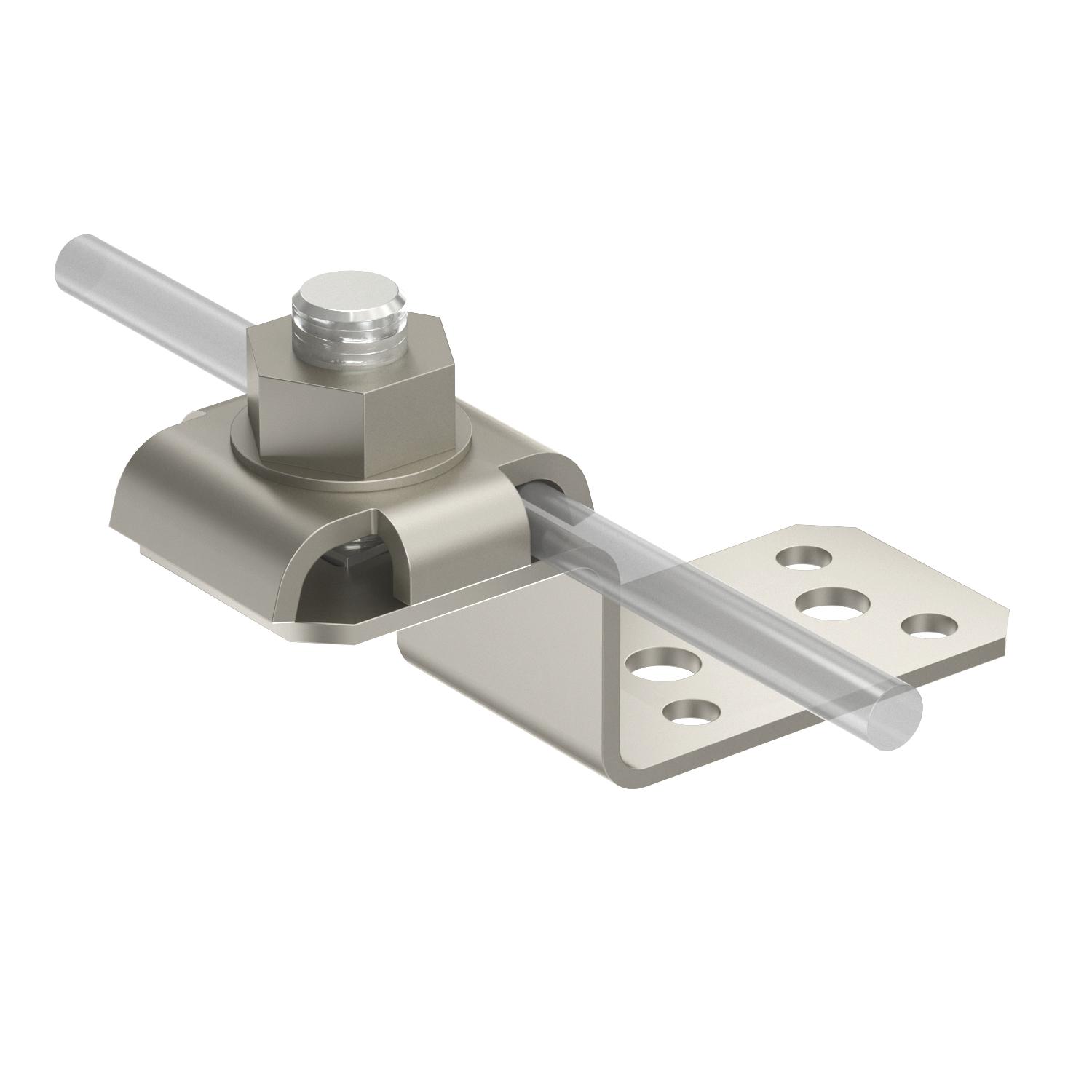

Connection component with double crossbar

Item no. 5320709 | EAN 4012196787975

5320709 / 287 DCT A2
H/100 kA
Rd 6 - 8 mm
Product description
Product description
• Quick mounting thanks to an M10 x 30 bolt made of stainless steel
• With spring washer
• 4 fastening holes Ø 5.2 mm, incl. rivets
• 2 fastening holes Ø 6.9 mm
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
  • Lightning current-tested
Technical data

Technical data

Clamping range, max. 8 mm
Clamping range, min. 6 mm

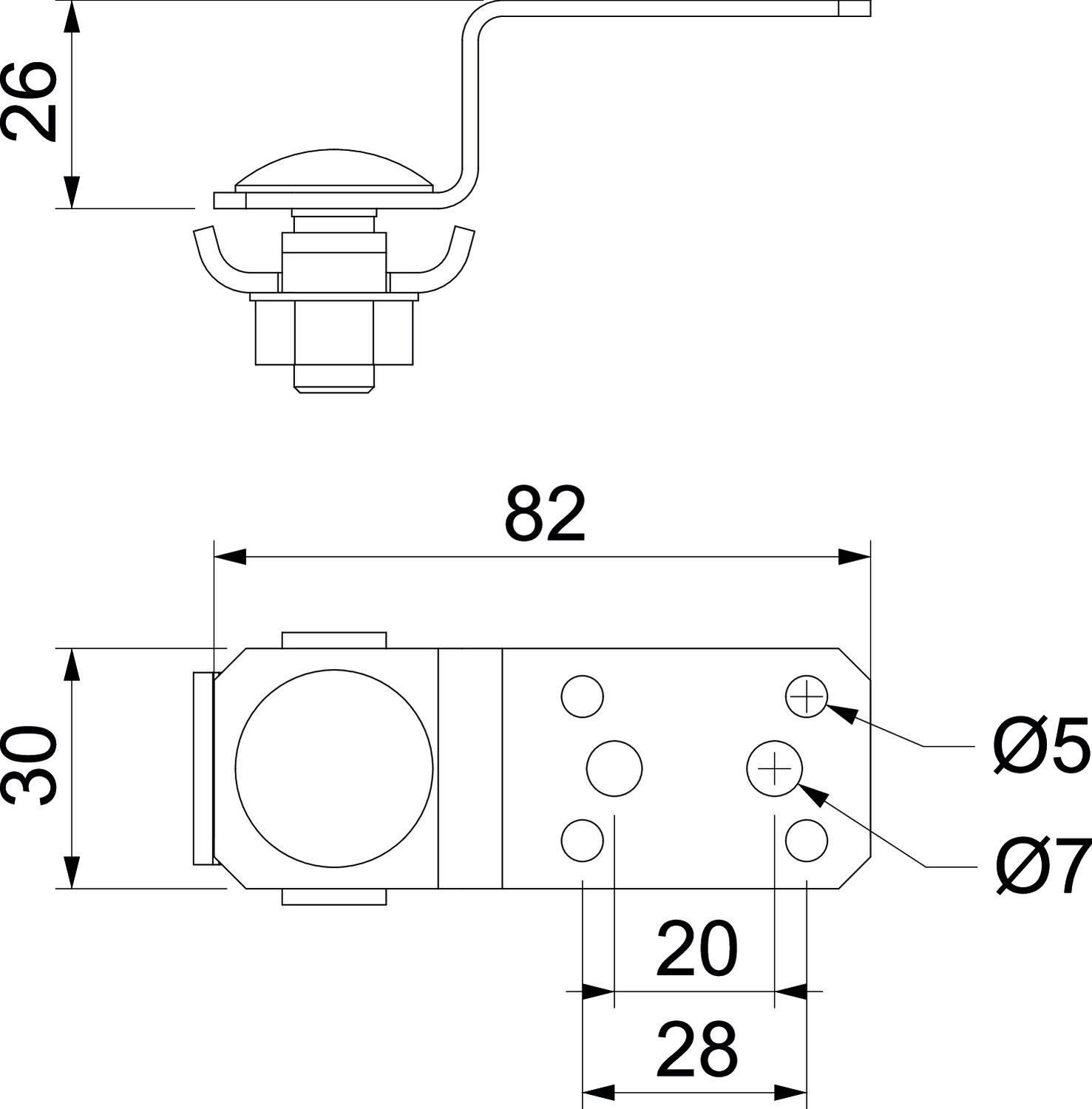

Dimension 82x30x26
Fit Rd 6 - 8 mm
Lightning current carrying capacity H/100 kA
Material Stainless steel
Suitable for round conductor diameters, max. 8 mm
Suitable for round conductor diameters, min. 6 mm
Type of connector Connection terminal
Type of fastening screw Gutter bolt
All types

All types

Types Lightning current carrying capacity Fit Item no. Quantity SSU
287 DCT A2 H/100 kA Rd 6 - 8 mm 5320709
10 piece
