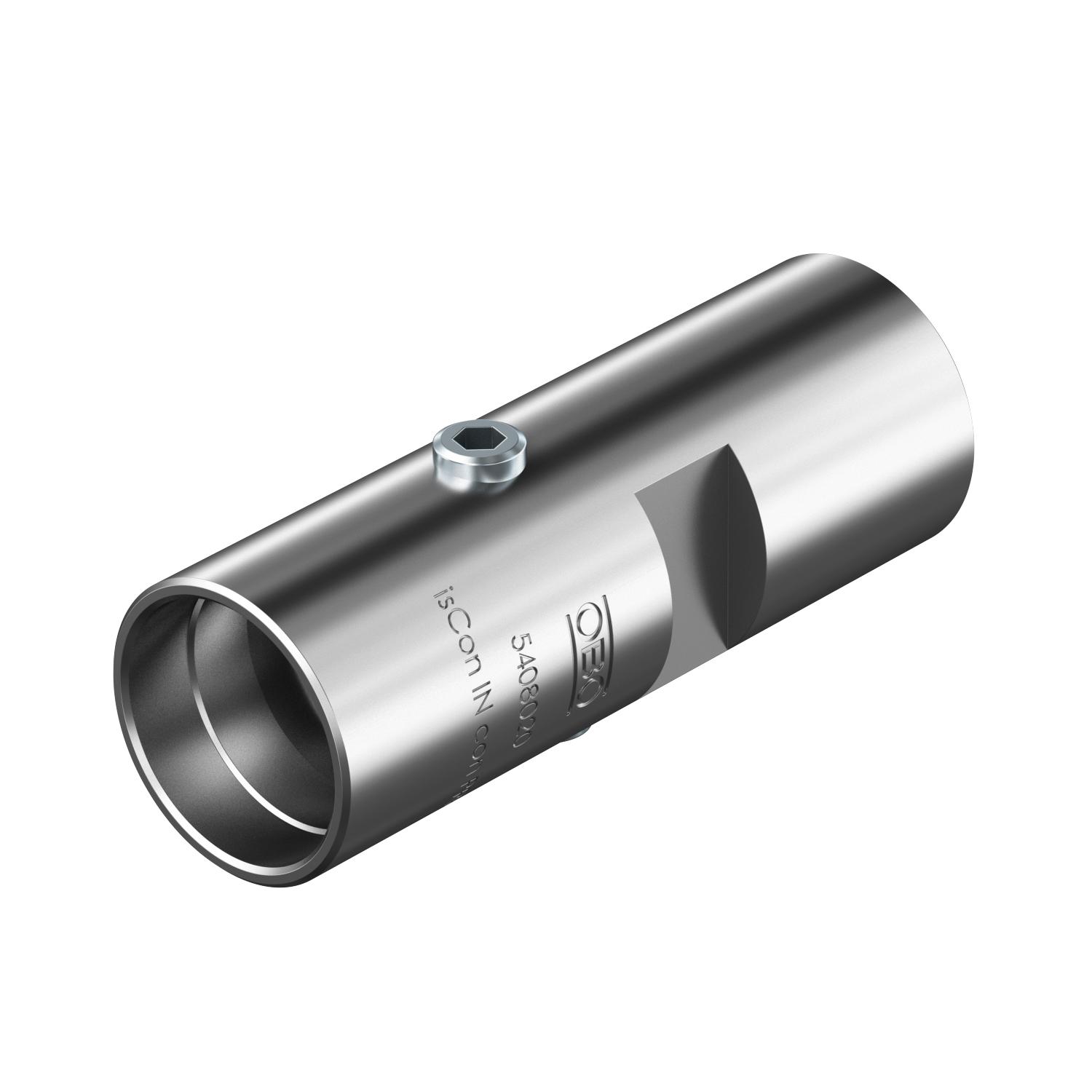

Connection element for installation in the insulated air-termination rod isFang IN

Item no. 5408020 | EAN 4012196591701

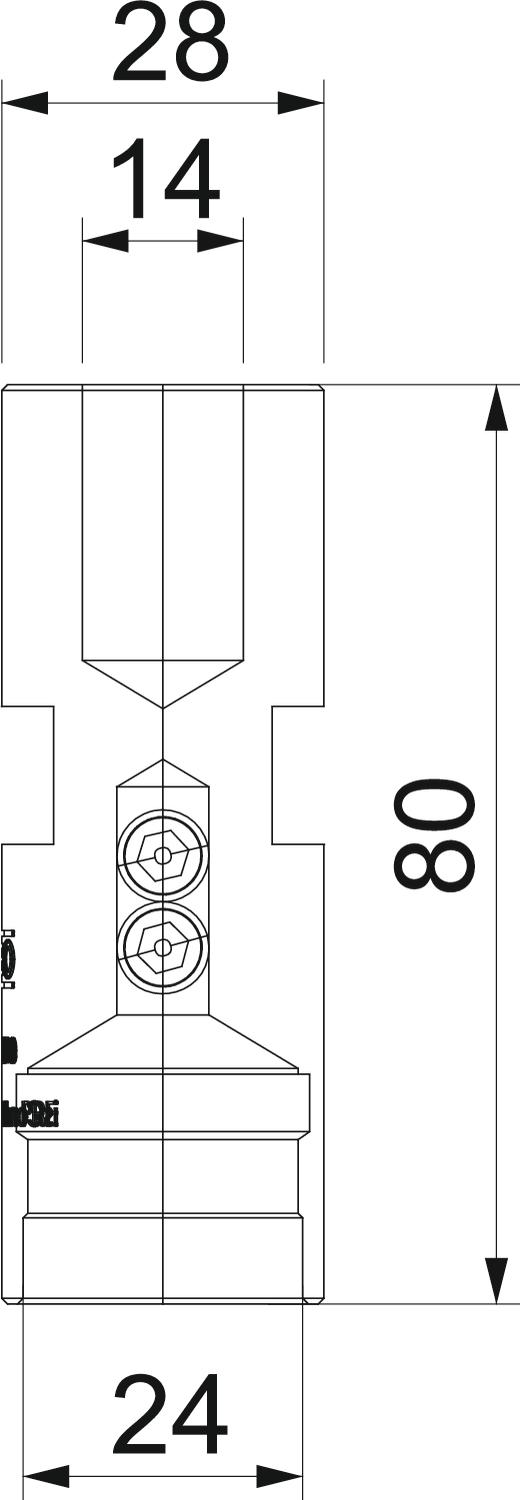

28 mm
Product description

Product description

• For the isCon® Premium conductor
• Cable connection and routing in the insulated air-termination rod
• Screw-on termination
• Including heat-shrinkable sleeve and hexagonal wrench
• Tested to up to 200 kA (lightning protection class I)
  • Lightning current-tested
Technical data

Technical data

Clamping range, max. 23 mm
Dimension Ø23mm
Dimension d min. 28 mm
Fit 23 mm
Lightning current carrying capacity H2/200 kA
Material Stainless steel
Suitable for connection Miscellaneous
All types

All types

Types Dimension d min. Lightning current carrying capacity Fit Item no. Quantity SSU
isCon IN con 2 28 mm H1/150 kA 20 mm 5408019
15 piece
isCon IN con PRE 28 mm H2/200 kA 23 mm 5408020
15 piece
isCon IN connect 28 mm H1/150 kA 23 mm 5408024
15 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Stripping tool for isCon® conductor Stripping tool for isCon® conductor isCon stripper 2 5408013
1 piece
