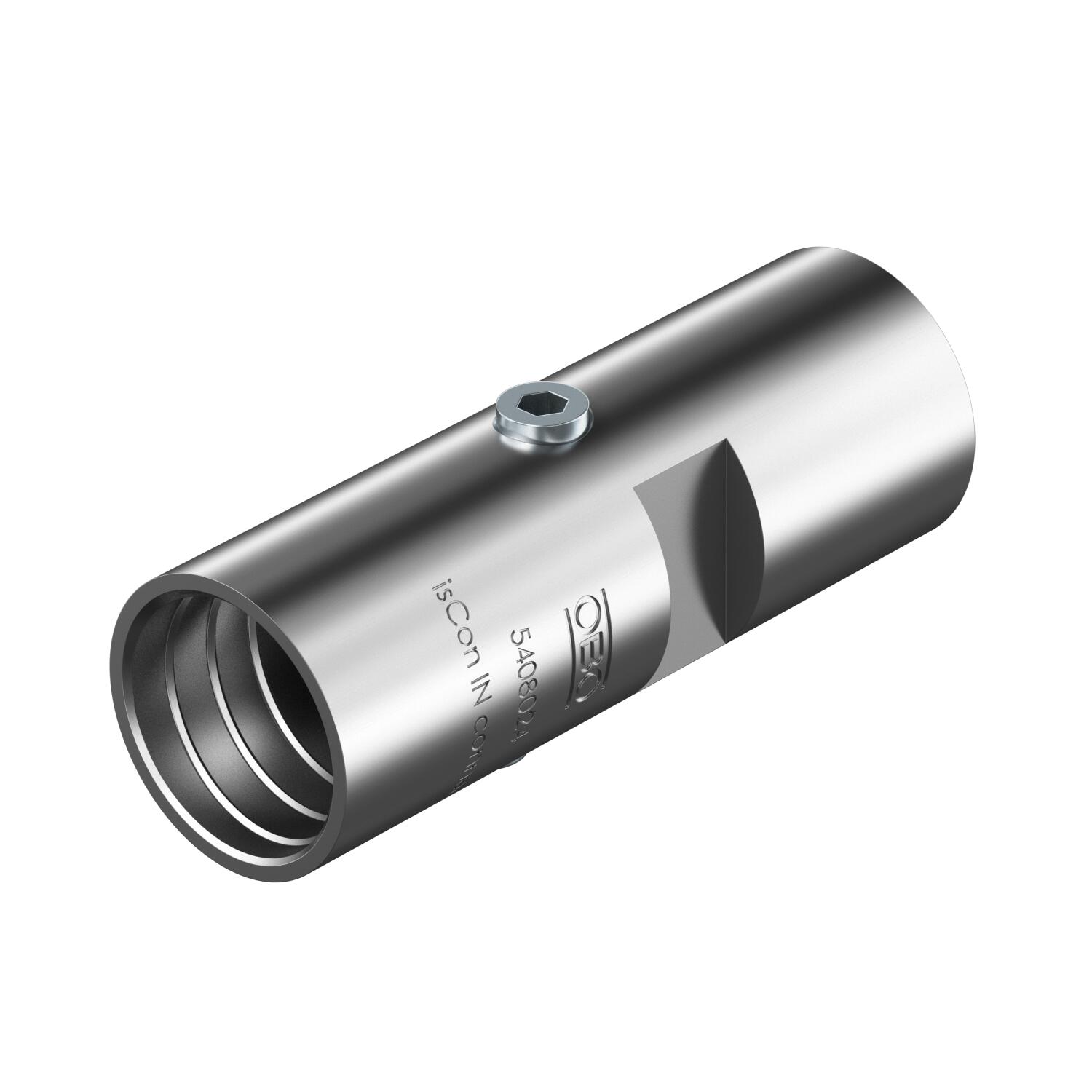

Connection element for installation in the insulated interception rod isFang IN 28 | H1/150 | 23

Connection element for installation in the insulated interception rod isFang IN

Item no. 5408024 | EAN 4012195864172

Item no. / Types

Dimension d min.	28 mm

Lightning current carrying capacity

Fit

Product description

Product description

• Screw-on termination of the connection for the isCon® cable

• Connection and installation of the cable in the insulated interception rod

• Tested up to 150 kA (lightning protection Class II)

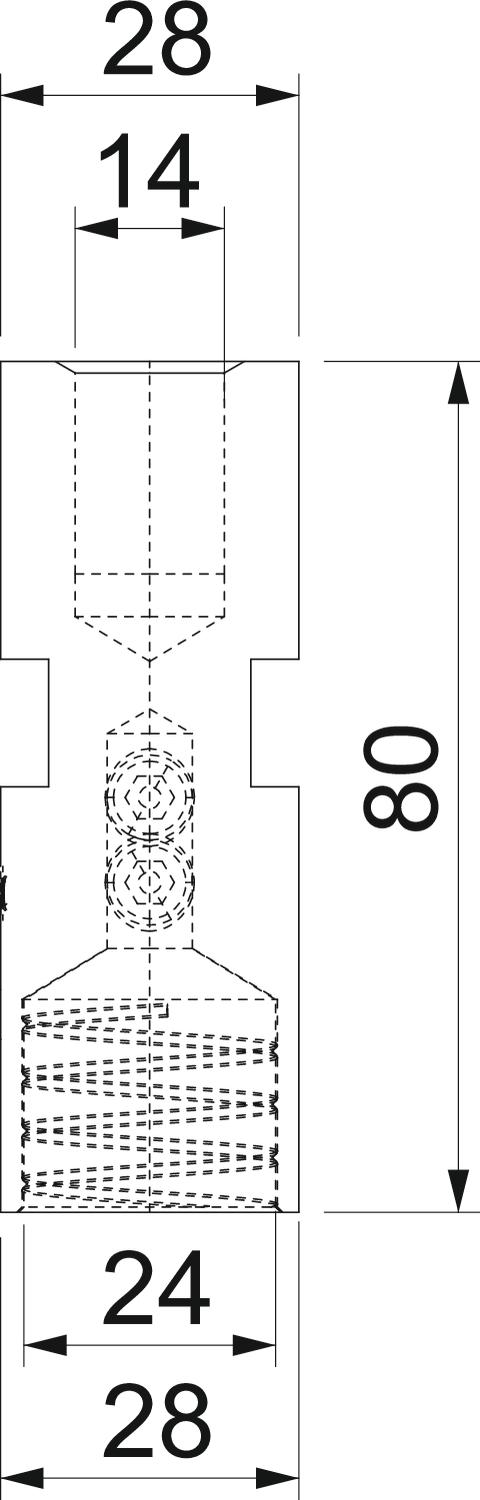

Technical data

Technical data

Clamping range, max.	23 mm
Dimension	Ø23mm
Dimension d min.	28 mm
Fit	23 mm

Lightning current carrying capacity	H1/150 kA
Material	Stainless steel
Suitable for connection	Miscellaneous

All types

All types

Types	Dimension d min.	Lightning current carrying capacity	Fit	Item no.	Quantity	SSU
isCon IN con 2	28 mm	H1/150 kA	20 mm	5408019	piece	15 piece
isCon IN con PRE	28 mm	H2/200 kA	23 mm	5408020	piece	15 piece
isCon IN connect	28 mm	H1/150 kA	23 mm	5408024	piece	15 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Stripping tool for isCon® conductor	isCon stripper 2	5408013	piece	1 piece

Downloads

Data sheet isCon IN connect / 5408024 , 0.16MB , pdf

Download

Guide Lightning protection guide , 2.10MB , pdf

Download

Brochure Lösungen für Photovoltaikanlagen , 11.37MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

EU declaration of conformity isCon IN connect / 5408024 , 0.06MB , pdf

Download

Mounting instructions Extended mounting instructions, long isCon® , 11.88MB , pdf
