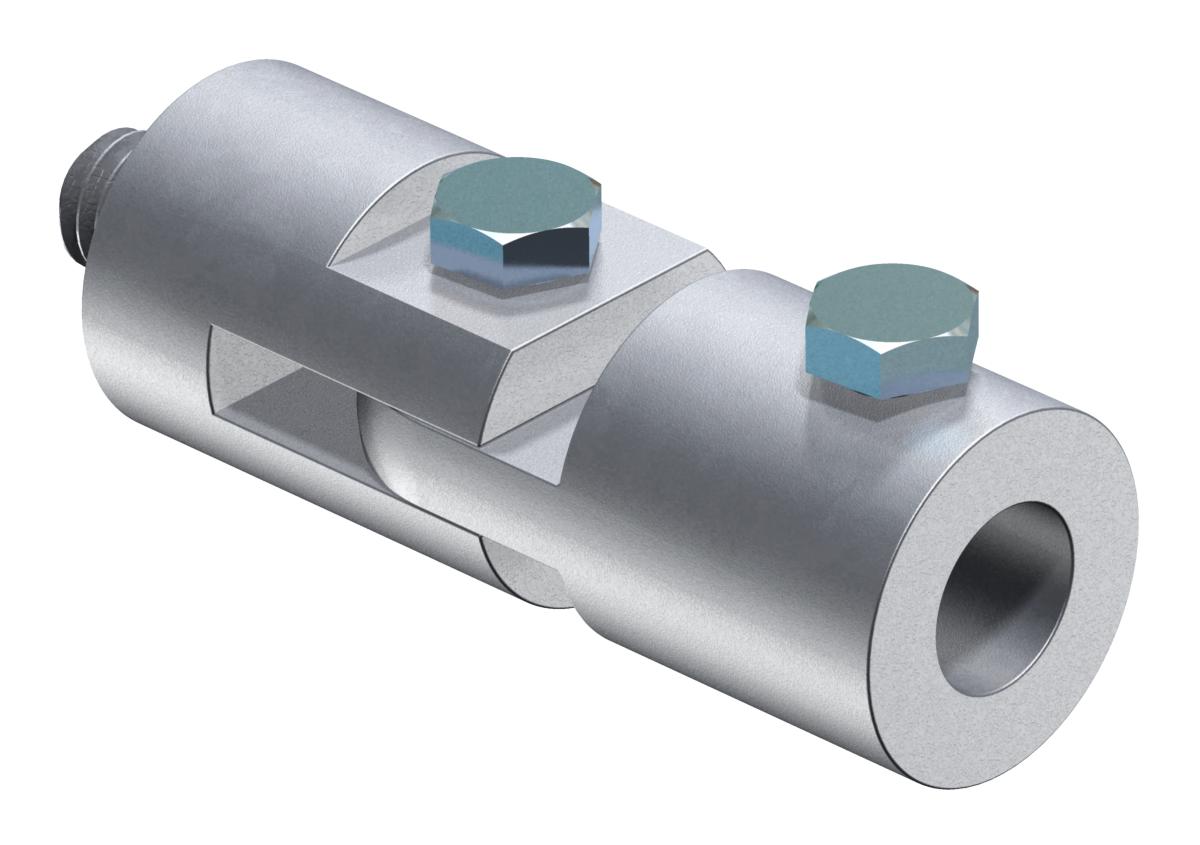

Connection joint

Item no. 5408504 | EAN 4012195674290

5408504 / 101 IAG

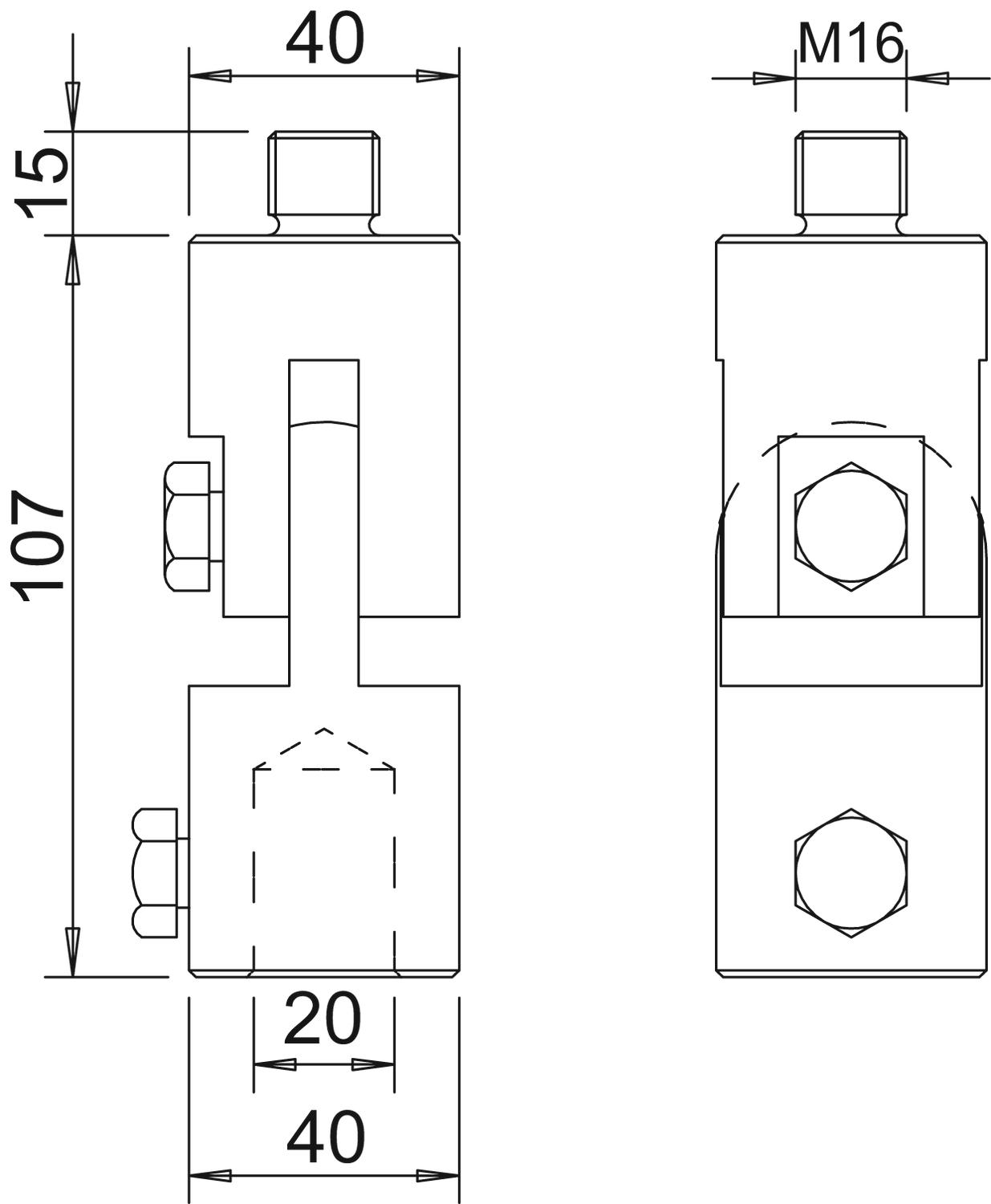

40 mm
20 mm
107 mm
Product description

Product description



• Attaching link for installation on concrete stones

• With thread M16 on slanting roof surfaces

• With M10 bolts
Technical data

Technical data

Connection Round conductor
Dimension M16
Dimension d min. 40 mm
Dimension d Ø 20 mm
Dimension L 107 mm
Length 107 mm
Material Aluminium
All types

All types

Types Dimension d min. Dimension d Ø Dimension L Item no. Quantity SSU
101 IAG 40 mm 20 mm 107 mm 5408504
10 piece
