- Product description
-
Product description

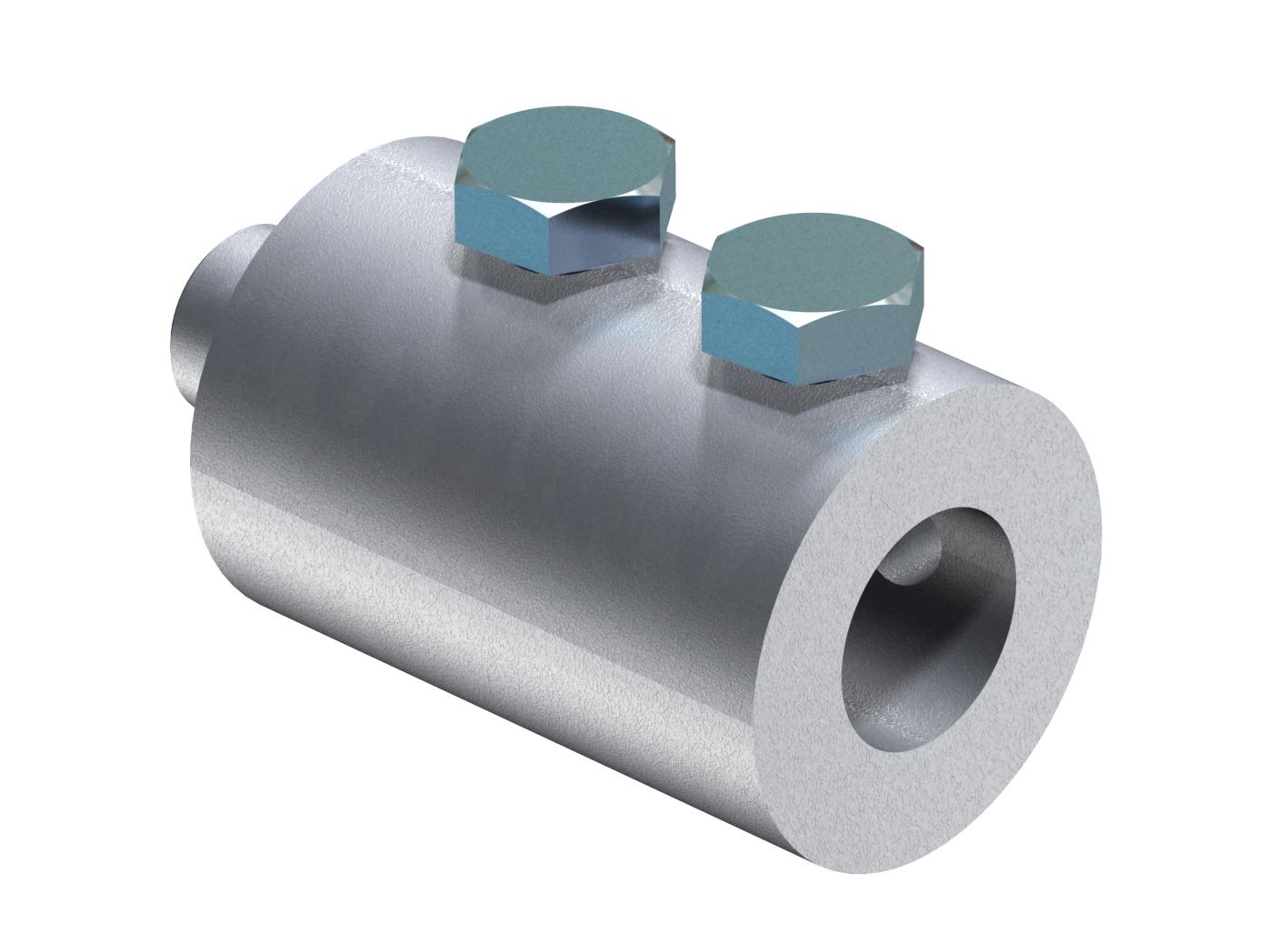

• Fitting with M16 thread
• For mounting on stands with M16 female thread such as type 101 (5402891,5402958)
• With M10 bolts
- Technical data
-
Technical data

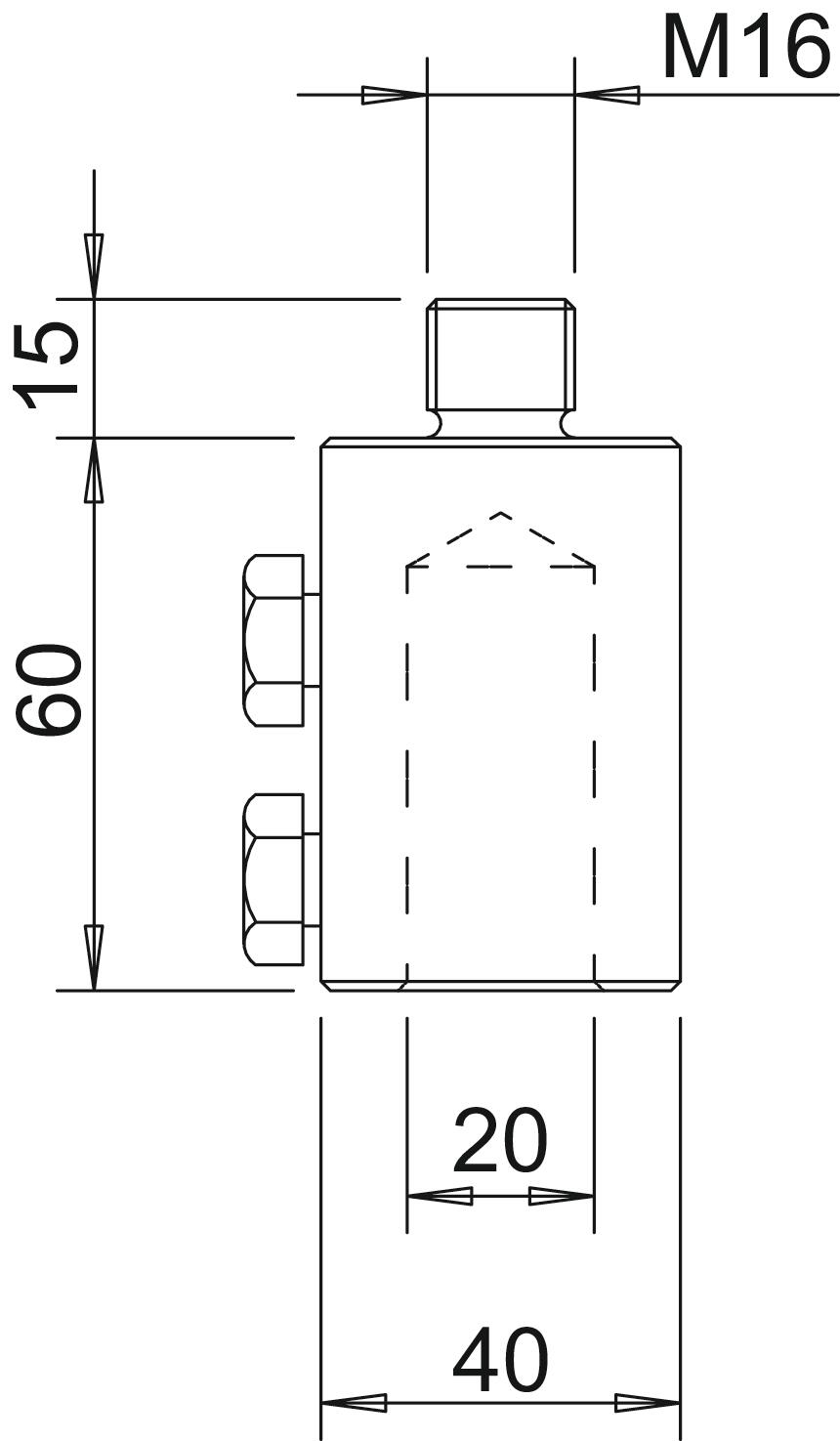

Connection Round conductor Dimension M16 Dimension d min. 40 mm Dimension d Ø 20 mm Dimension L 60 mm Length 60 mm Material Aluminium - All types
- Downloads
-
Data sheet 101 A-M16 / 5408350 , 0.17MB , pdf
English
