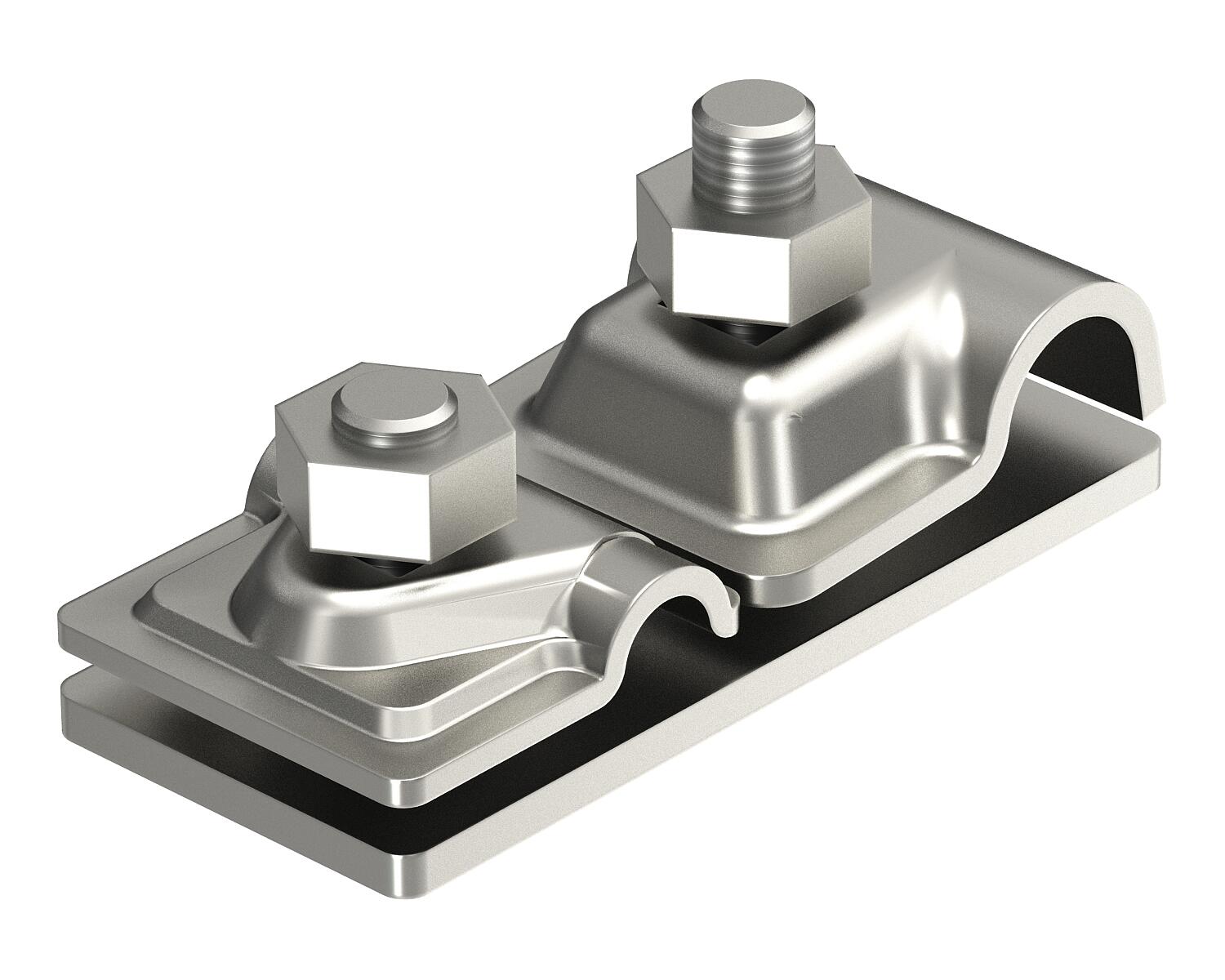

Connection plate for one isCon® cable

Item no. 5408026 | EAN 4012195674696

5408026 / isCon AP1-16 VA
Rd 8-10 x Rd 16 mm
Product description
Product description
Connection plate to connect an isCon® conductor with air-termination rod Ø 16 mm, tested up to 150 kA (lightning protection class II)
  • Lightning current-tested
Technical data

Technical data

Connection Round conductor

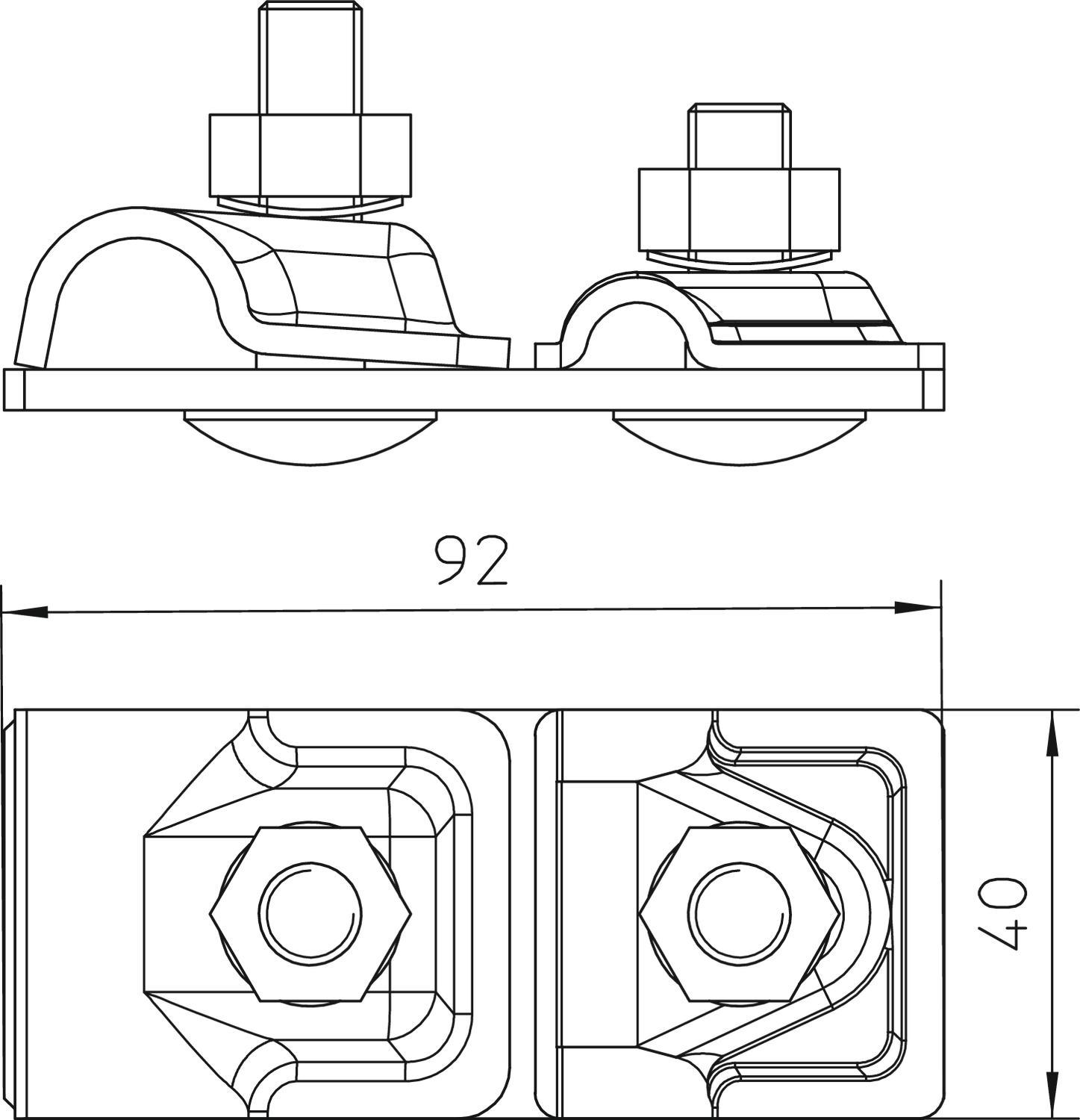

Dimension 16x8-10mm
Dimension B 40 mm
Dimension H 45,5 mm
Fit Rd 8-10 x Rd 16 mm
Length 92 mm
Lightning current carrying capacity H1/150 kA
Material Stainless steel
All types

All types

Types Fit Item no. Quantity SSU
isCon AP1-16 VA Rd 8-10 x Rd 16 mm 5408026
10 piece
