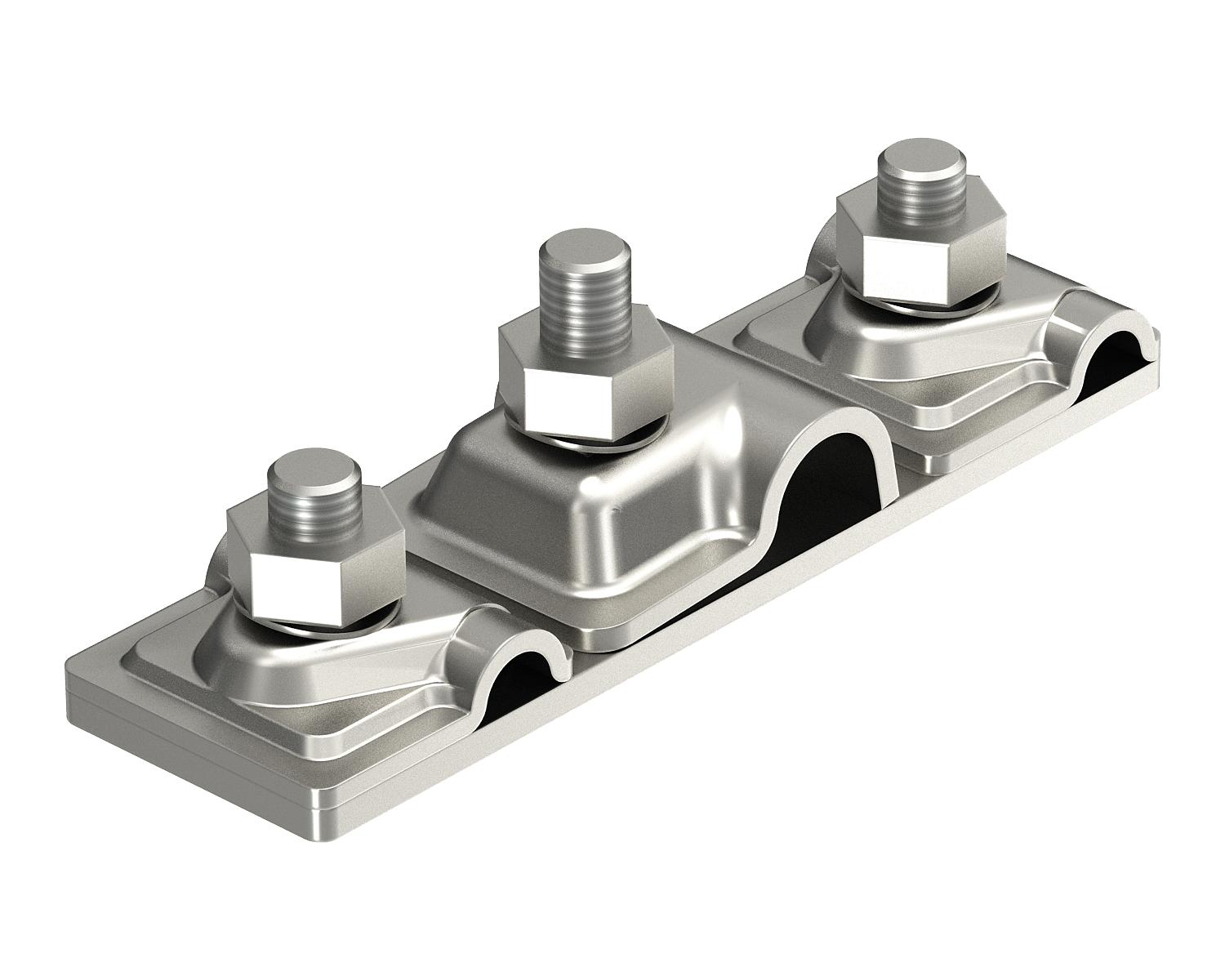

Connection plate for two isCon® conductors

Item no. 5408028 | EAN 4012195674702

5408028 / isCon AP2-16 VA
Rd 8-10 x Rd 16 mm
Product description

Product description

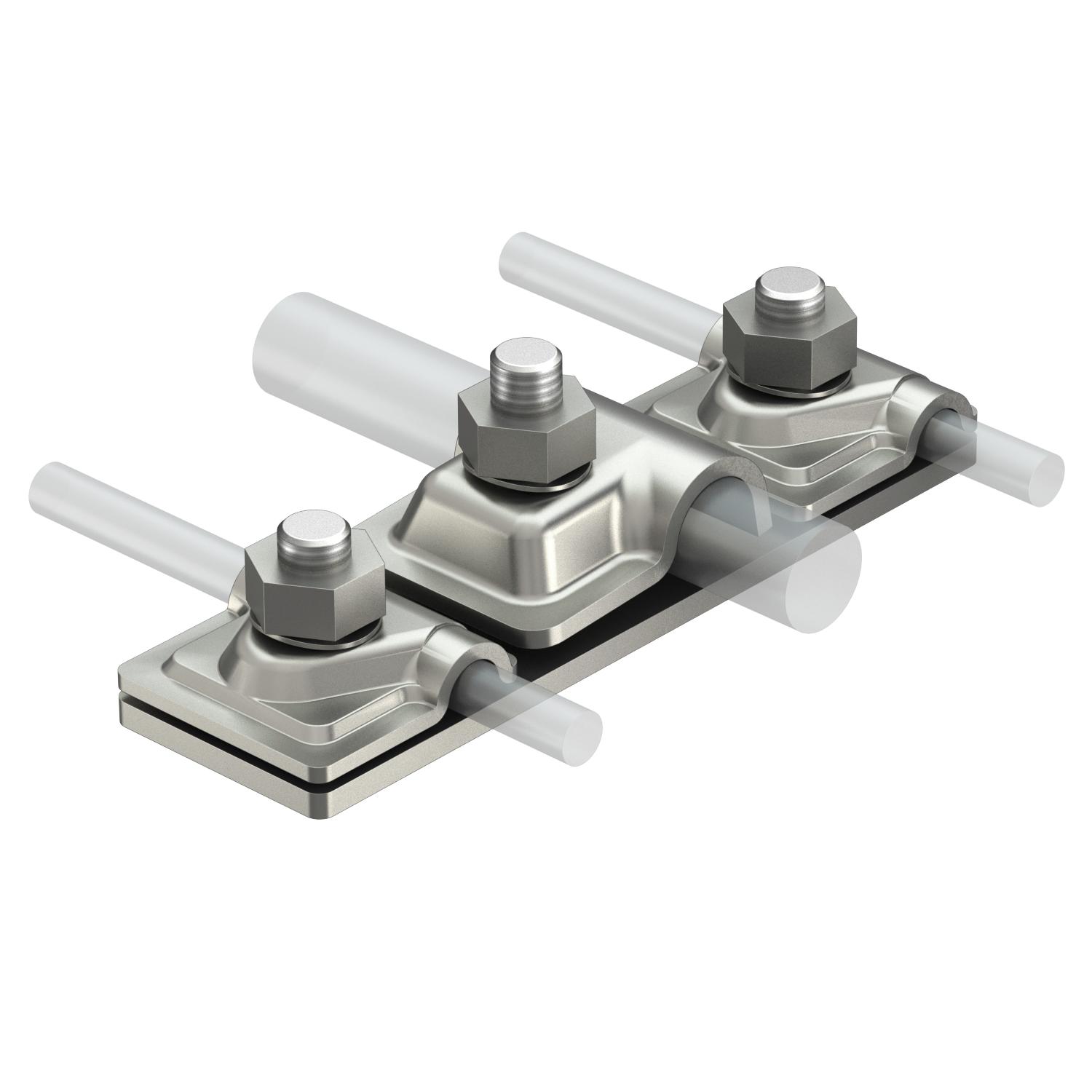

Connection plate to connect two isCon® conductors with air-termination rod Ø 16 mm, tested up to 150 kA (lightning protection class II)
  • Lightning current-tested
Technical data

Technical data

Connection Round conductor

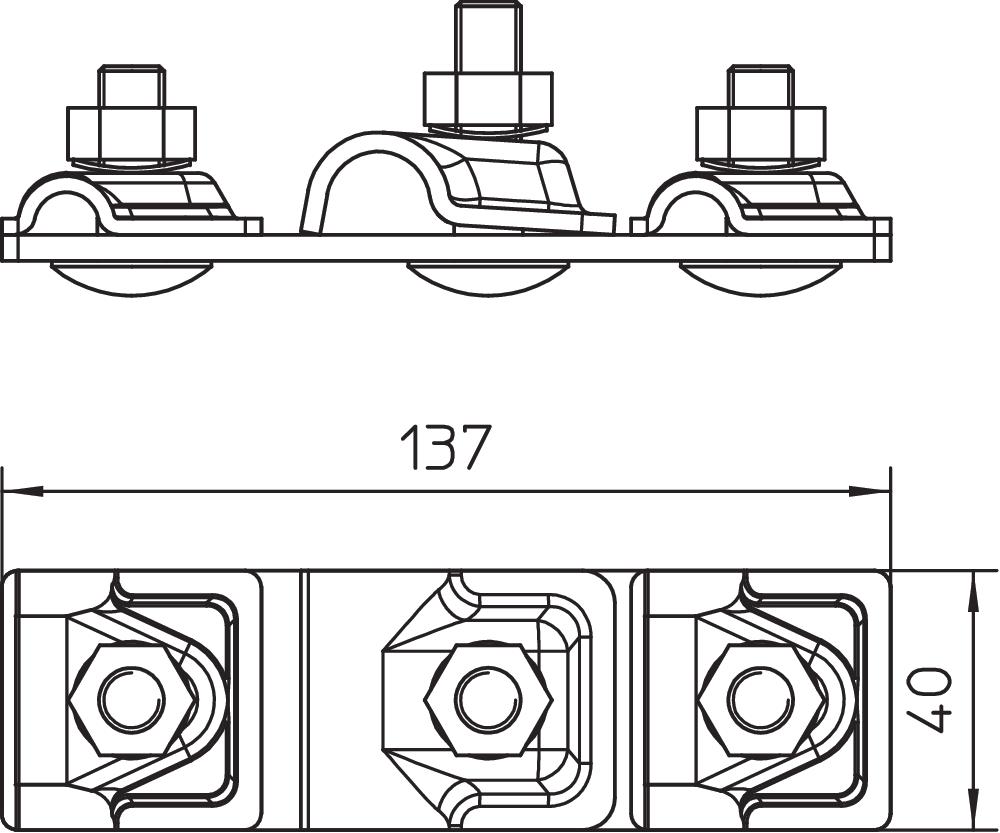

Dimension 16x8-10mm
Fit Rd 8-10 x Rd 16 mm
Lightning current carrying capacity H1/150 kA
Material Stainless steel
All types

All types

Types Fit Item no. Quantity SSU
isCon AP2-16 VA Rd 8-10 x Rd 16 mm 5408028
10 piece
