Connection plate with 5 holes FT 250 | 40 |
morepic-1 morepic-2 video-1

Connection plate with 5 holes FT

Item no. 1124651 | EAN 4012195486053

1124651 / GMS 5 VP FT
250 mm
40 mm
Product description

Product description

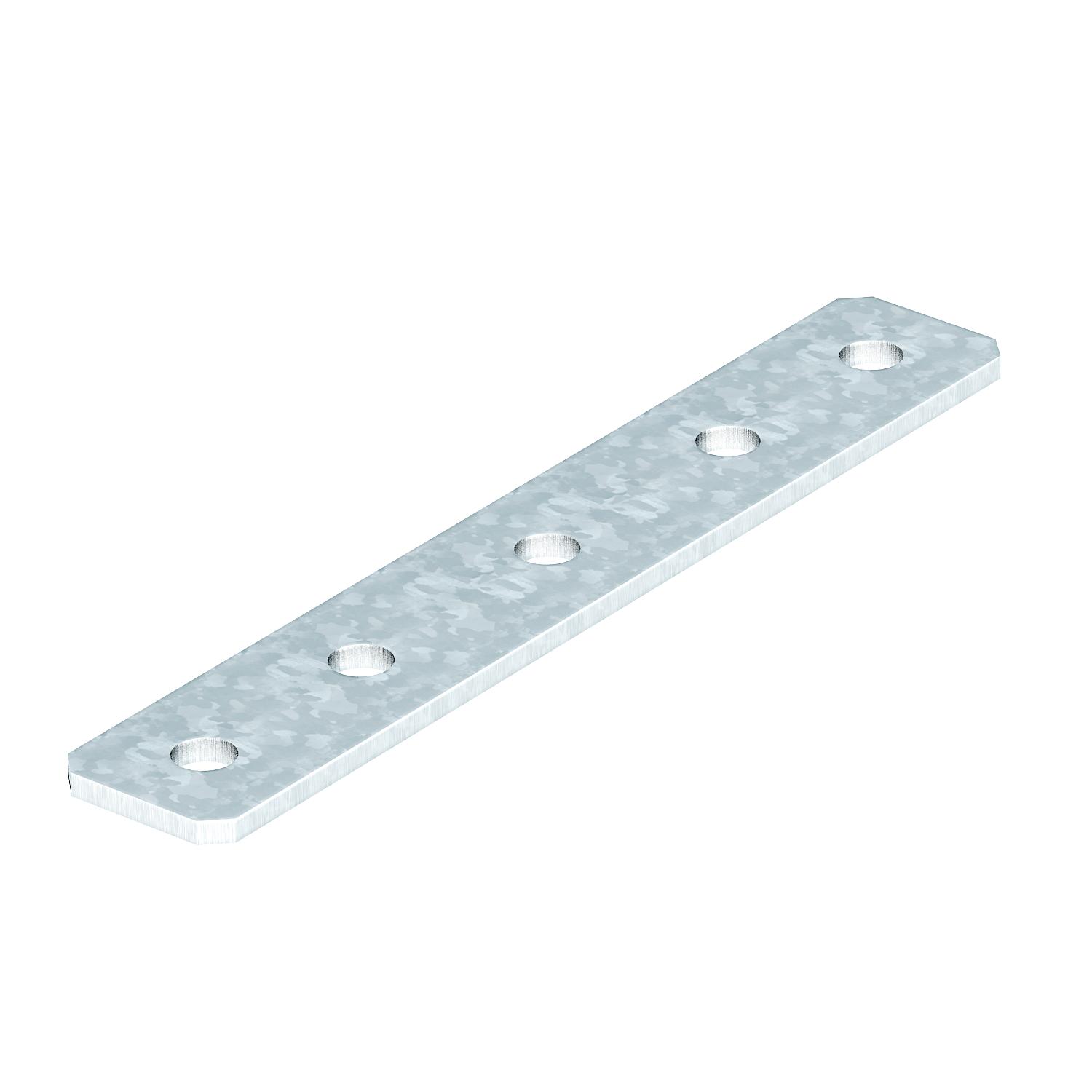

Connection plate with five holes for straight connection of profile rails 41 x 41 mm and 41 x 21 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Dimension 250x40x5
Hole size 13 mm
Material Steel
Material thickness 5 mm
Rustproof steel, pickled no
Suitable for profile shapes C profile
Surface Hot-dip galvanised
Version for With continuous perforation 13 mm
With screw accessories no

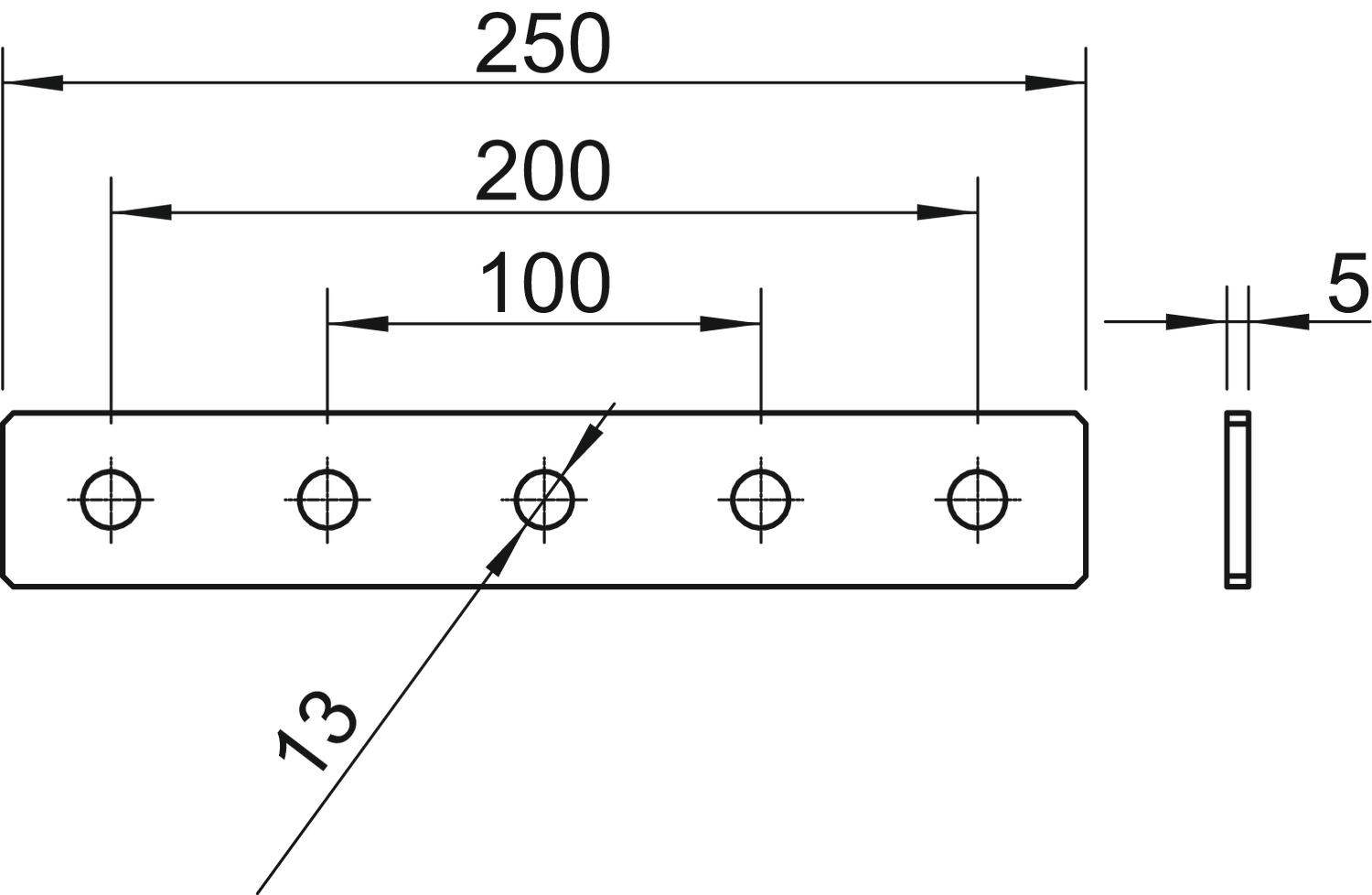

Dimensions

Height 5 mm
Length 250 mm
Width 40 mm
All types

All types

Types Length Width Item no. Quantity SSU
GMS 5 VP FT 250 mm 40 mm 1124651
10 piece
