Connection plate, X-shaped A2
Item no. 1124697 | EAN 4012195804963
- Product description
-
Product description

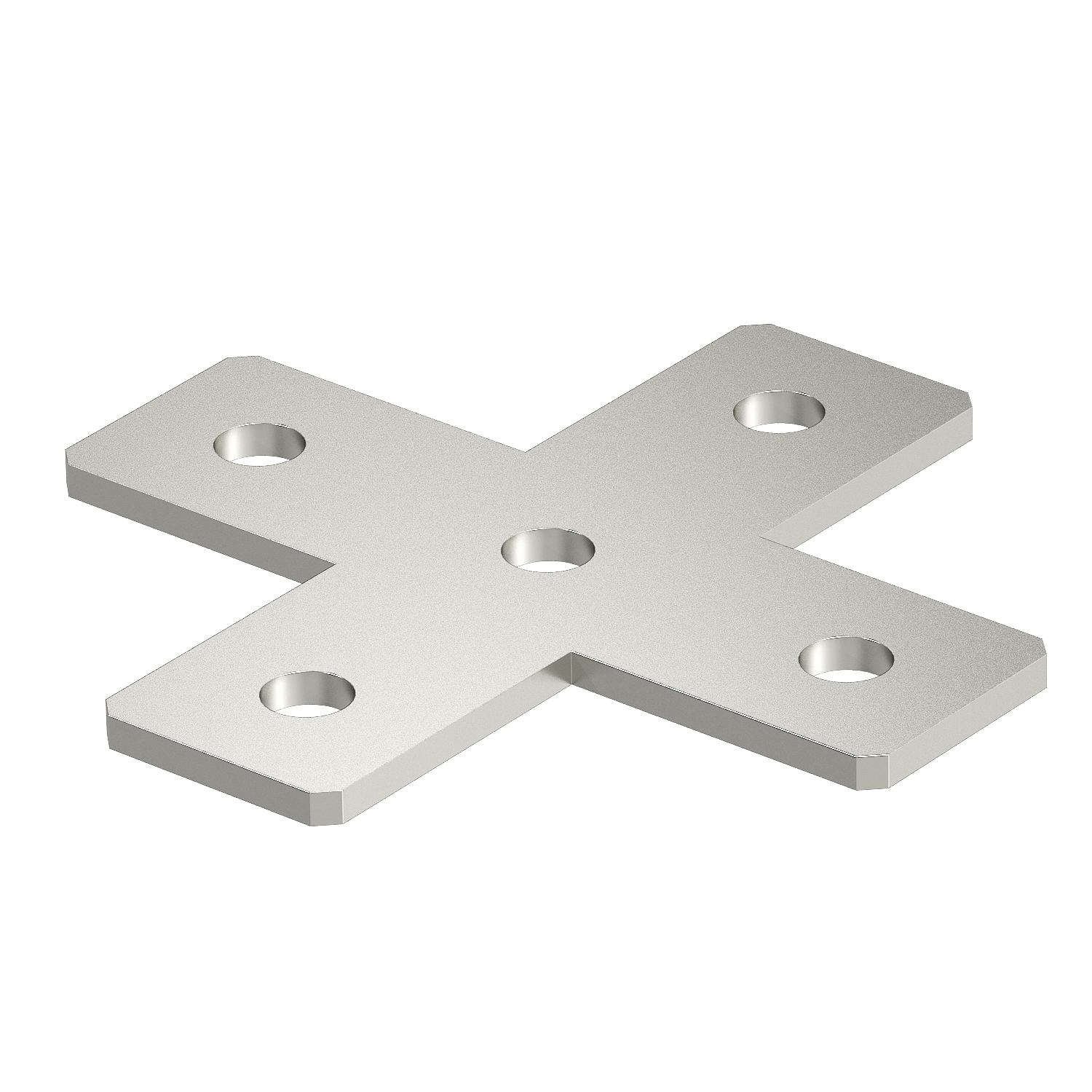

Connection plate with five holes for cross connection of profile rails 41 x 41 mm and 41 x 21 mm.
-
- Technical data
-
Technical data
Dimension 150x150x40x4 Hole size 13 mm Material Stainless steel Material thickness 4 mm Rustproof steel, pickled no Suitable for profile shapes C profile Surface Bright, treated Version for With continuous perforation 13 mm With screw accessories no Dimensions
Height 4 mm Length 150 mm Width 40 mm - All types
