Connection plate, X-shaped FT
Item no. 1124657 | EAN 4012195486084
- Product description
-
Product description
Connection plate with five holes for cross connection of profile rails 41 x 41 mm and 41 x 21 mm.
-
- Technical data
-
Technical data

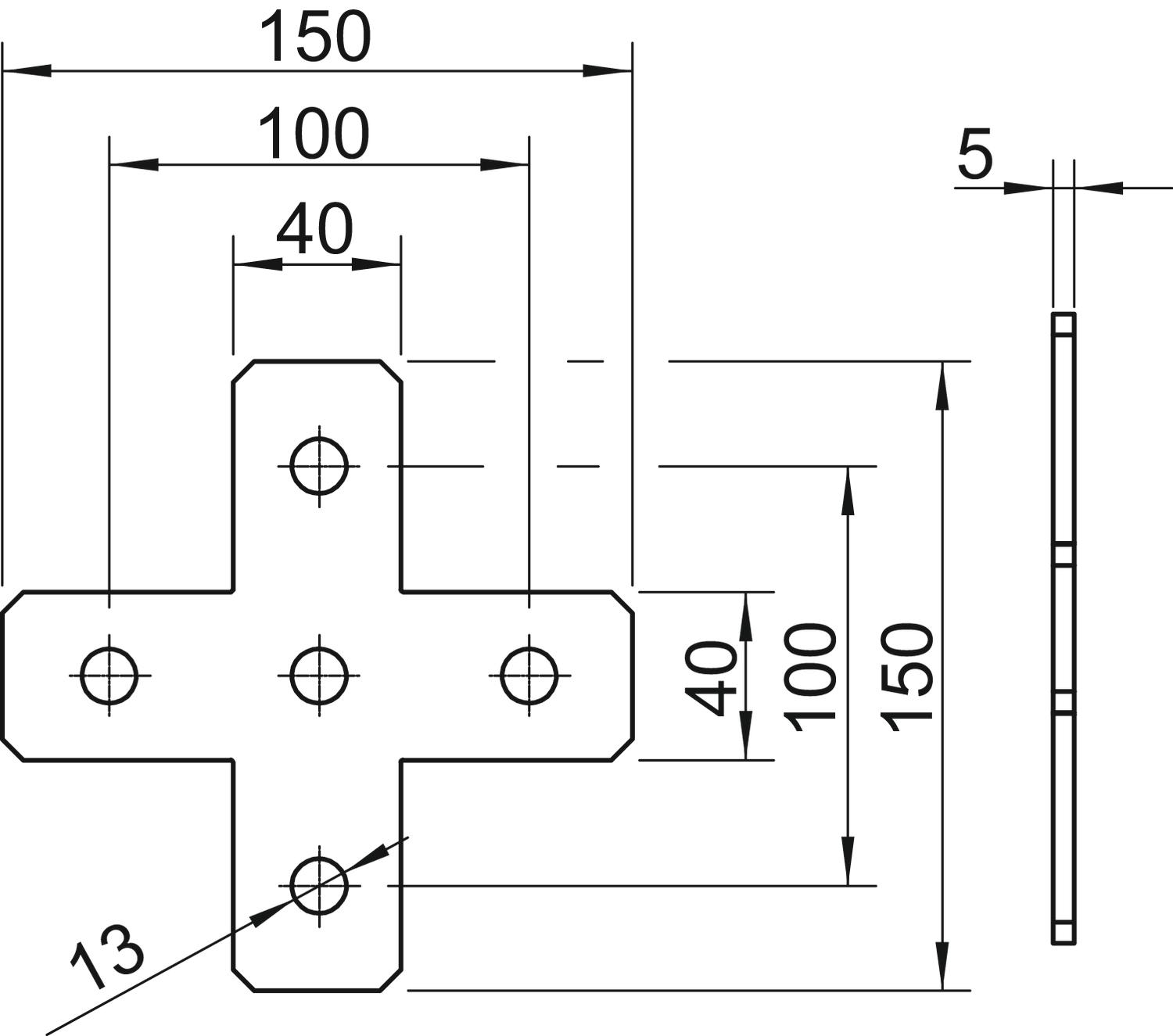

Dimension 150x150x40x5 Hole size 13 mm Material Steel Material thickness 5 mm Rustproof steel, pickled no Suitable for profile shapes C profile Surface Hot-dip galvanised Version for With continuous perforation 13 mm With screw accessories no Dimensions
Height 5 mm Length 150 mm Width 40 mm - All types
- Downloads
-
Data sheet GMS 5 VP X FT / 1124657 , 0.19MB , pdfBrochure Rail systems , 2.10MB , pdfDeclaration of conformity GMS 5 VP X FT / 1124657 , 0.06MB , pdfREACH Declaration of conformity GMS 5 VP X FT / 1124657 , 0.12MB , pdfRoHS Declaration of conformity GMS 5 VP X FT / 1124657 , 0.12MB , pdf
