Connection profile for trunking width 170 mm 92
morepic-1 morepic-2

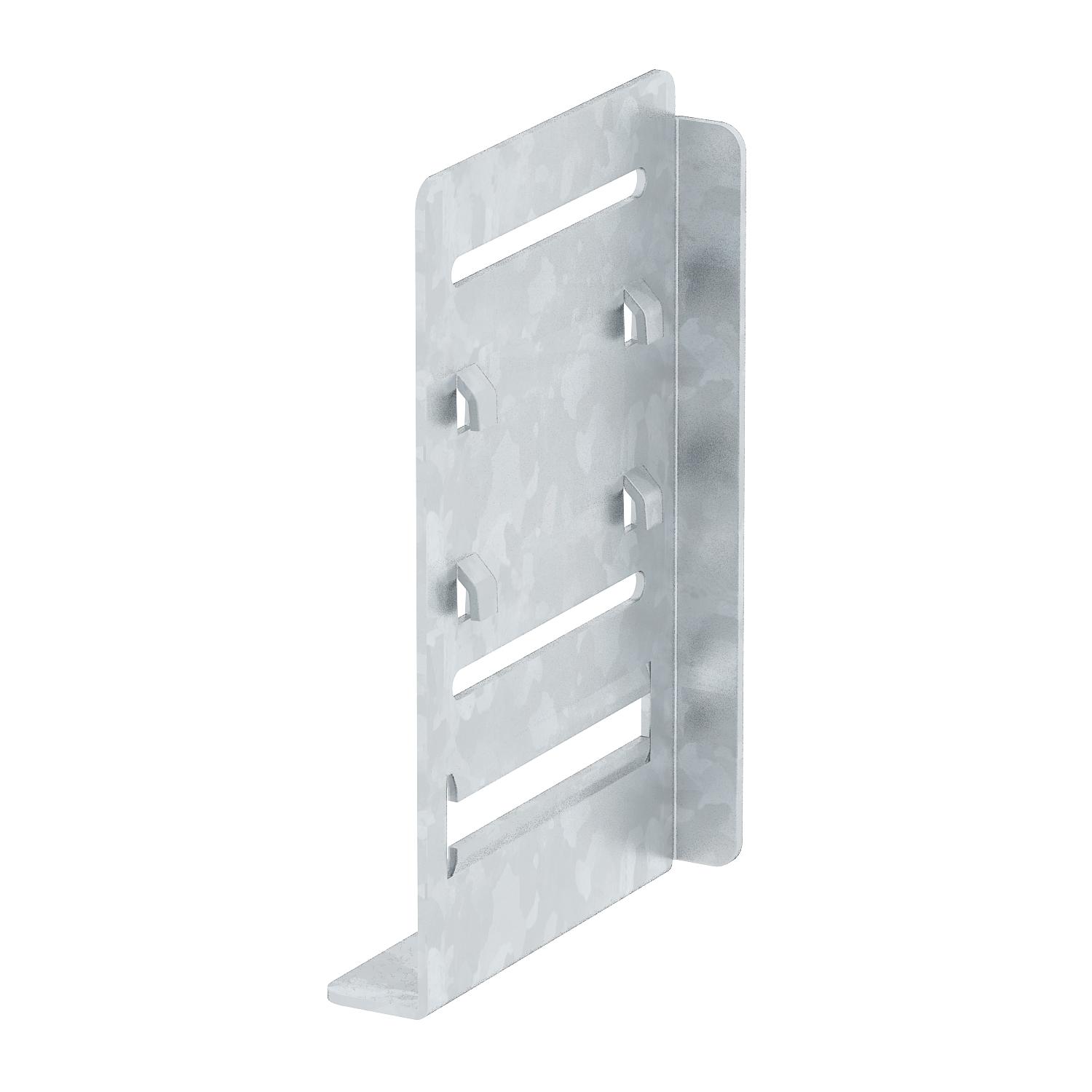

Connection profile for trunking width 170 mm

Item no. 6279810 | EAN 4012195680741

6279810 / KSP170
92 mm
Product description

Product description

Connection profile for mounting and stabilising Rapid 80 device installation trunking, type GS and GA, of nominal width 170 mm.


  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Dimension 152x92x36
Halogen-free yes
installation position Horizontal
Material Steel
Surface Strip galvanized

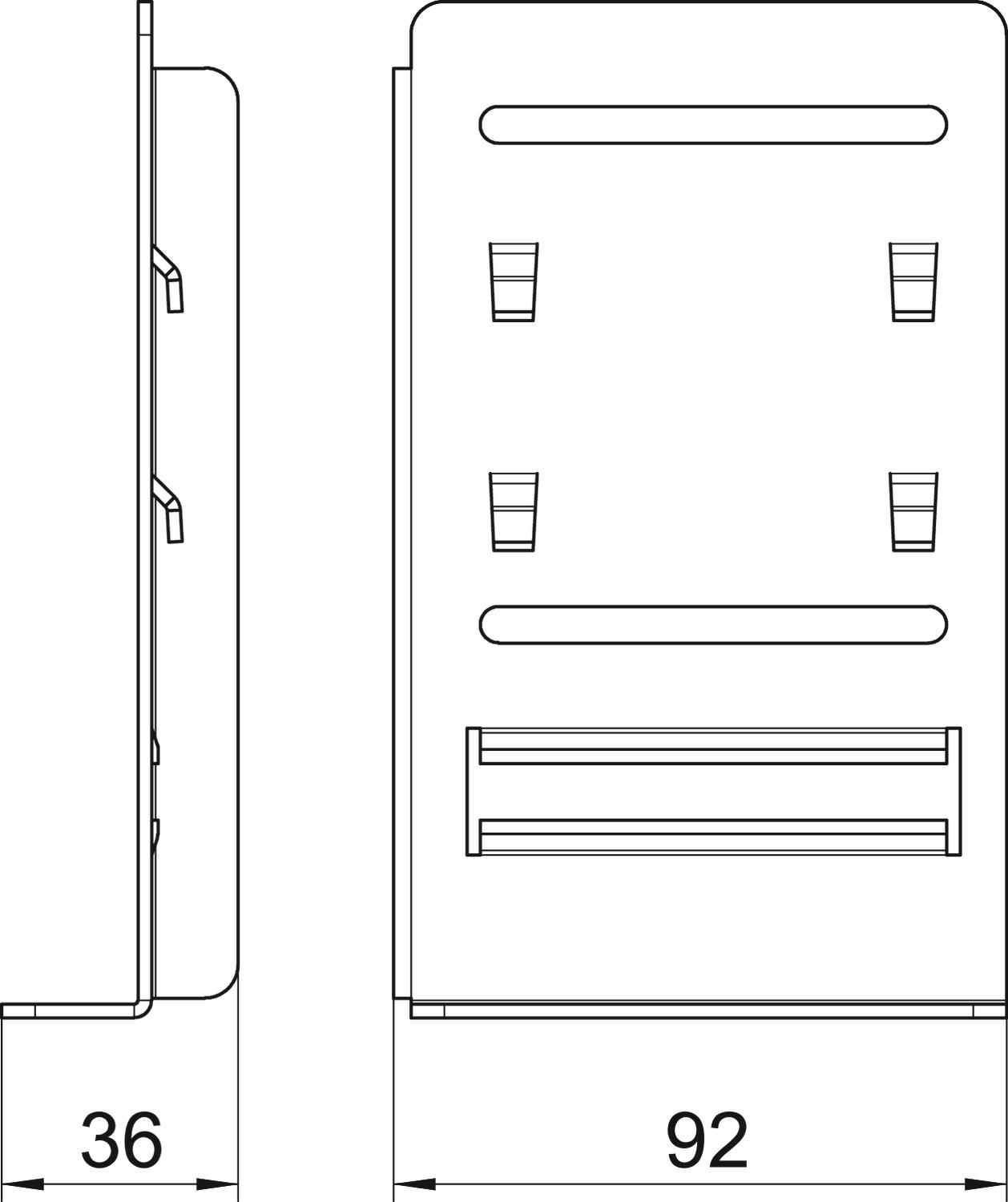

Dimensions

Height 152 mm
Length 92 mm
Width 36 mm
All types

All types

Types Length Item no. Quantity SSU
KSP170 92 mm 6279810
1 piece
Downloads

Download

Download

Declaration of conformity KSP170 / 6279810 , 0.13MB , pdf
Download
UK Declaration of Conformity KSP170 / 6279810 , 0.14MB , pdf
Download

Download

No invitation to tender text is available for this product.
