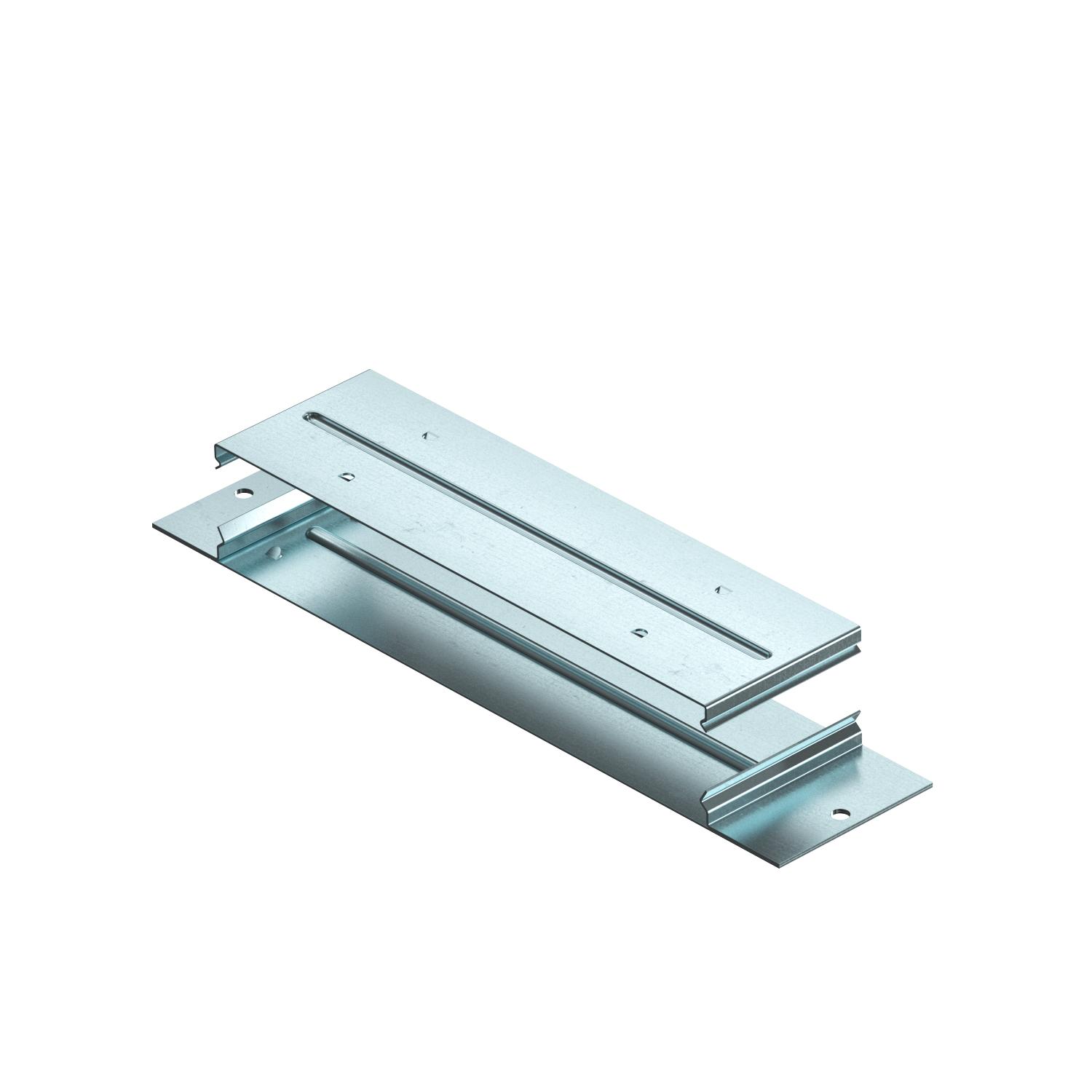

Connection shackle, conductive, for EÜK-2

Item no. / Types

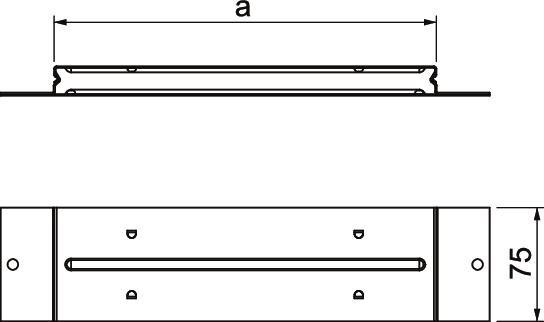

Width	75 mm

Duct height, min.	28 mm

Trunking height, max.

Trunking width, min.

Product description

Product description

Connection shackle for mounting screed-covered underfloor installation ducts. The connection shackle snaps in to the duct sidewalls.

Technical data

Suitable for expansion joint	yes
Surface	Strip galvanized
Trunking height, max.	58 mm
Trunking width, min.	250 mm
Version for	Strap
Width	75 mm
With equipotential bonding	yes

All types

All types

Types	Width	Duct height, min.	Trunking height, max.	Trunking width, min.	Item no.	Quantity	SSU
VL 190-2	75 mm	28 mm	48 mm	190 mm	7400988	piece	10 piece
VL 250-2	75 mm	28 mm	58 mm	250 mm	7400992	piece	6 piece
VL 350-2	75 mm	28 mm	58 mm	350 mm	7400996	piece	6 piece

Downloads

Data sheet VL 250-2 / 7400992 , 0.17MB , pdf

EU declaration of conformity VL 250-2 / 7400992 , 0.15MB , pdf

Download

Selection aid Quick selection for screed-covered duct system with underfloor box in system size 350 , 0.38MB , pdf

Selection aid Quick selection for screed-covered duct system with underfloor box in system size 250 , 0.33MB , pdf

Download

Mounting instructions EÜK screed-covered duct system generation 4 , 10.26MB , pdf
