Connection sleeve

Item no. 6410103 | EAN 4012196202270

Product description

Product description

Connection sleeve with continuous internal thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Continuous thread yes

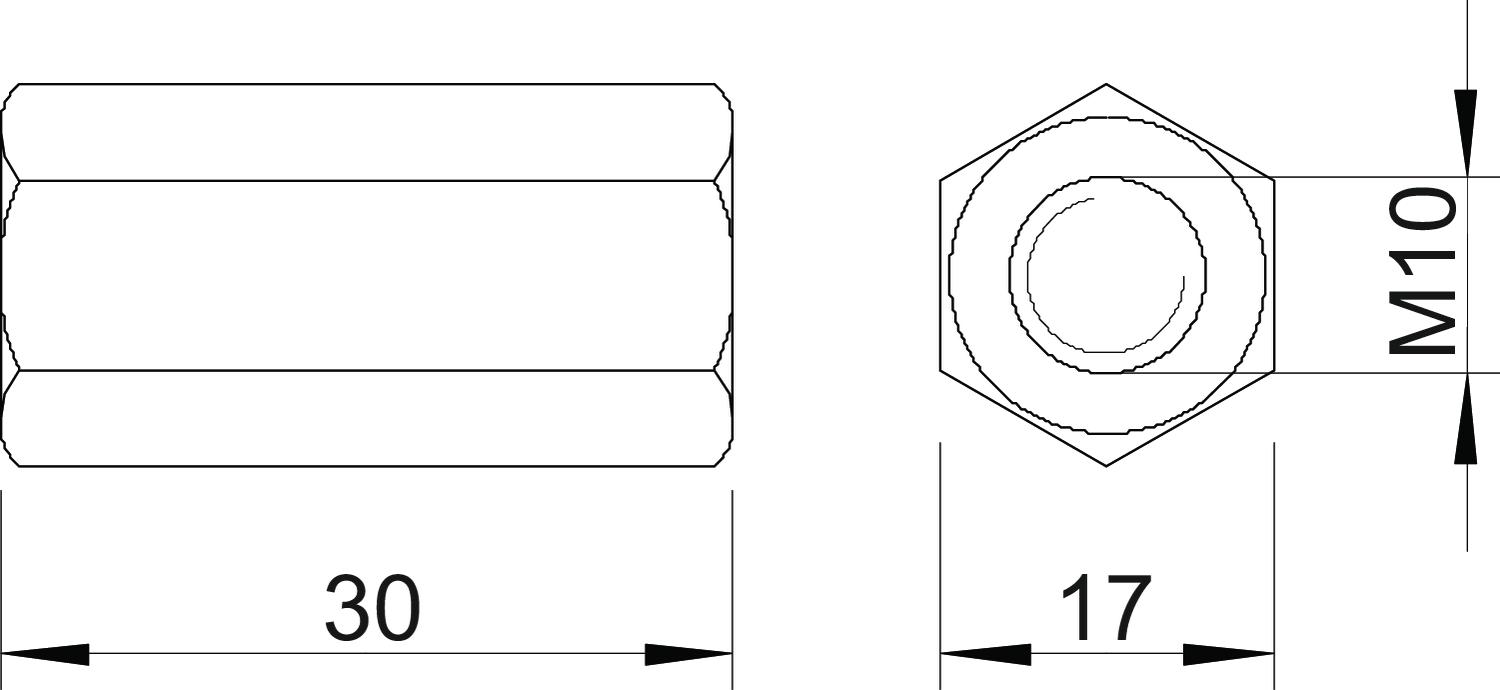

Dimension M10x30mm
Dimension 1, metric 10
Dimension 2, metric 10
Dimension L 30 mm
Hexagonal yes
Length 30 mm
Material Steel
Shape Hexagonal
Surface Electrogalvanized
Thread M10
WAF 17
All types

All types

Types Length WAF Thread Item no. Quantity SSU
CSTR M8 G 24 mm 13 M8 6410081
50 piece
CSTR M10 G 30 mm 17 M10 6410103
50 piece
CSTR M12 G 40 mm 19 M12 6410111
25 piece
Downloads

Download

Download

CSTR M10 G / 6410103
