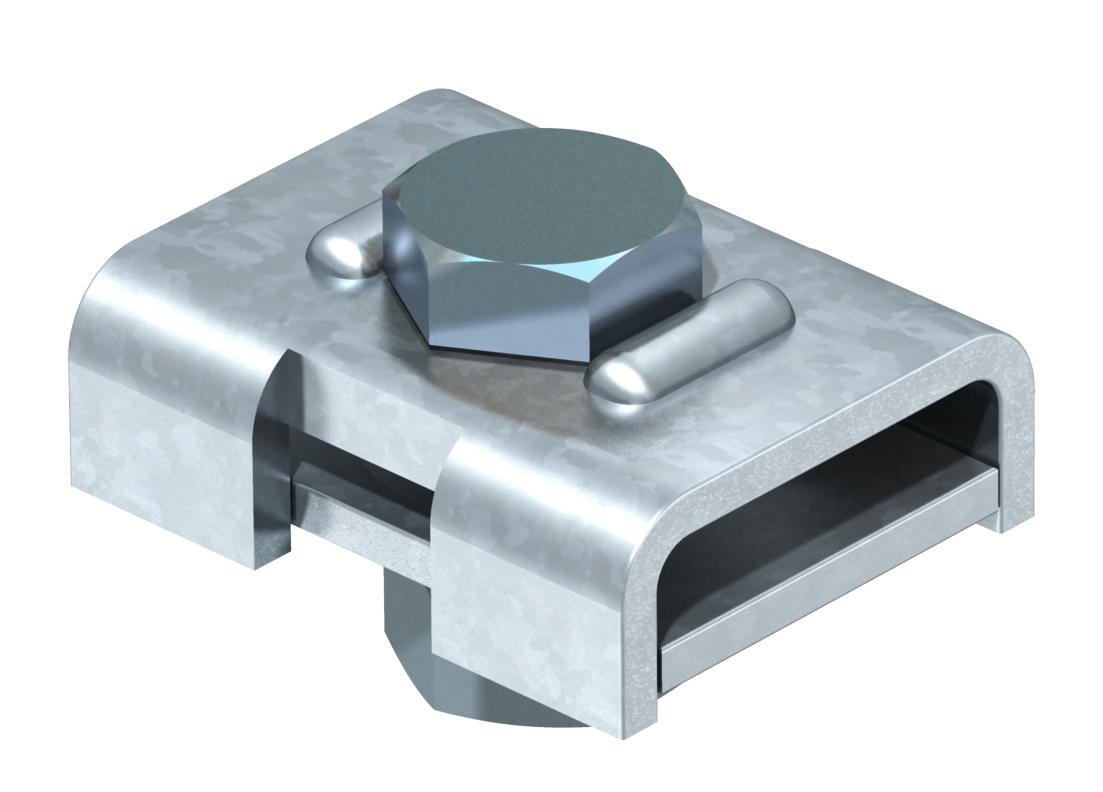

Connection terminal for round conductors

Item no. 5012015 | EAN 4012195377719

5012015 / 1818
Rd 8-10 mm
Product description
Product description
• For connecting round conductor Rd 8-10
• With 1 hexagonal bolt M12 x 40, 1 hexagonal nut M12 and 1 lock washer, stainless steel
  • Lightning current-tested
Technical data

Technical data

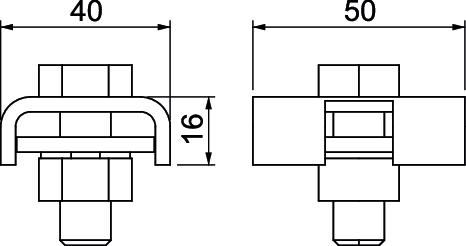

Dimension 50x40x16
Fit Rd 8-10 mm
Lightning current carrying capacity N/50 kA
Material Steel
Surface Hot-dip galvanised
Type of connector Connectors
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
1818 Rd 8-10 mm 5012015
10 piece
