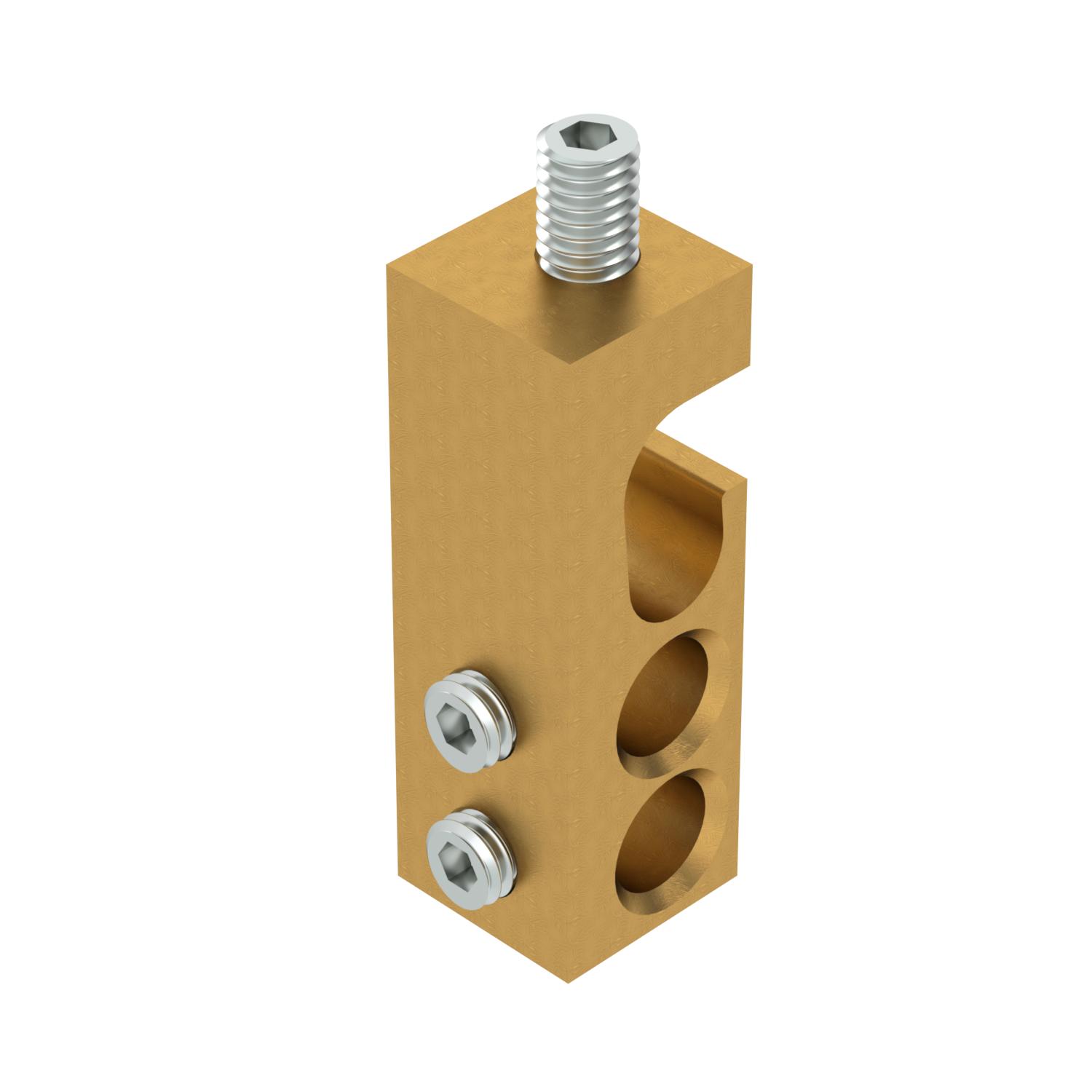

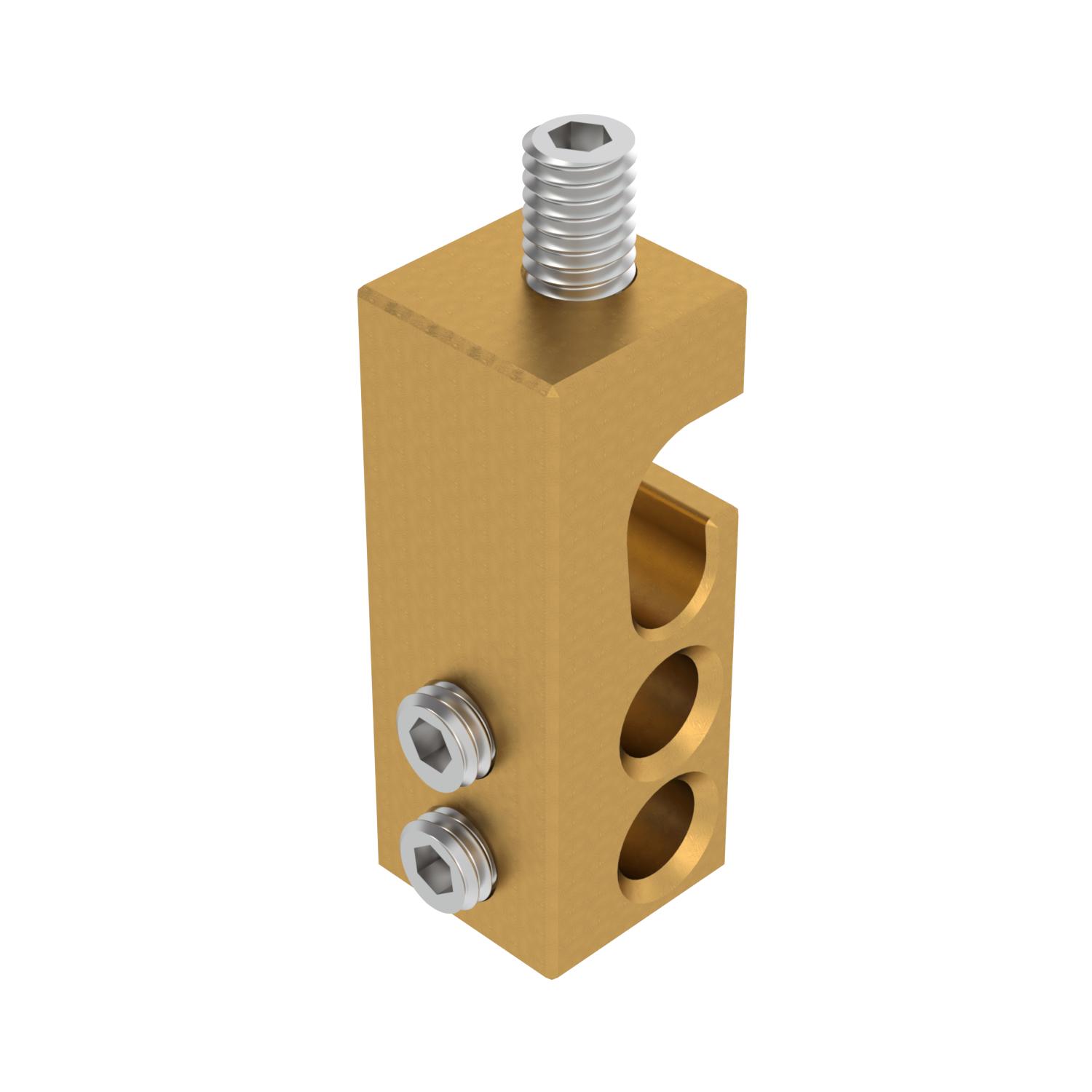

Connection terminal, single
Item no. 6049276 | EAN 4012196702718
- Product description
-
Product descriptionSimple connection terminal to accept 1 conductor cable, to create the protective equipotential bonding for cable support systems. Mounting on conductor cable, central in clamp spring.
-
- Technical data
-
Technical data

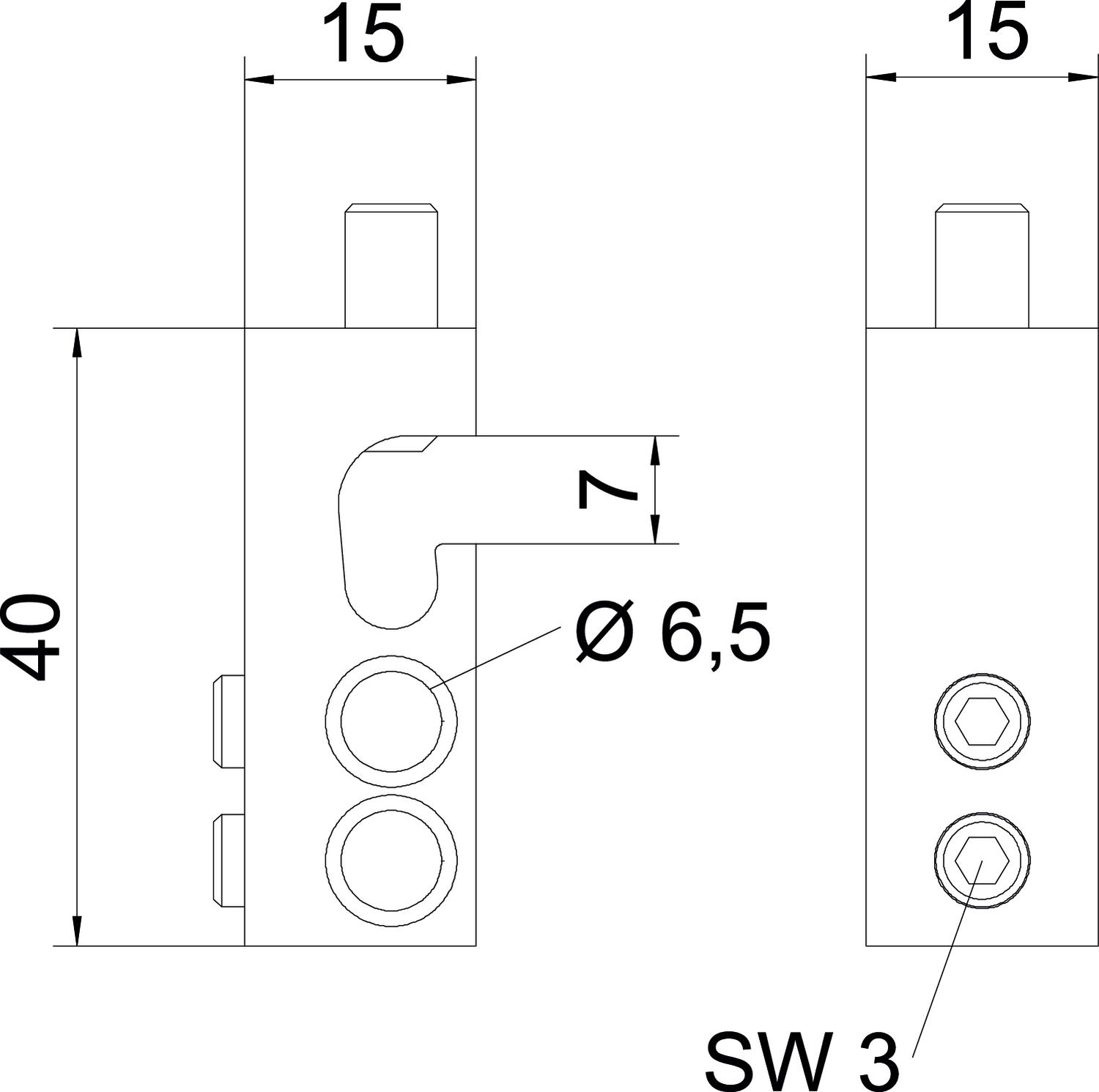

Colour Brass Cross-section 25 mm² Dimension 25mm² Dimension B 7 mm Dimension D 6,5 mm Dimension H 40 mm Height 40 mm Length 15 mm Material Brass Suitable for Round conductor Type connection terminal for conductor cable 1x Width 15 mm - All types
- Downloads
-
Data sheet AKL 25 E / 6049276 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity AKL 25 E / 6049276 , 0.10MB , pdfREACH Declaration of conformity AKL 25 E / 6049276 , 0.12MB , pdfRoHS Declaration of conformity AKL 25 E / 6049276 , 0.12MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for BMW AG , 4.54MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
