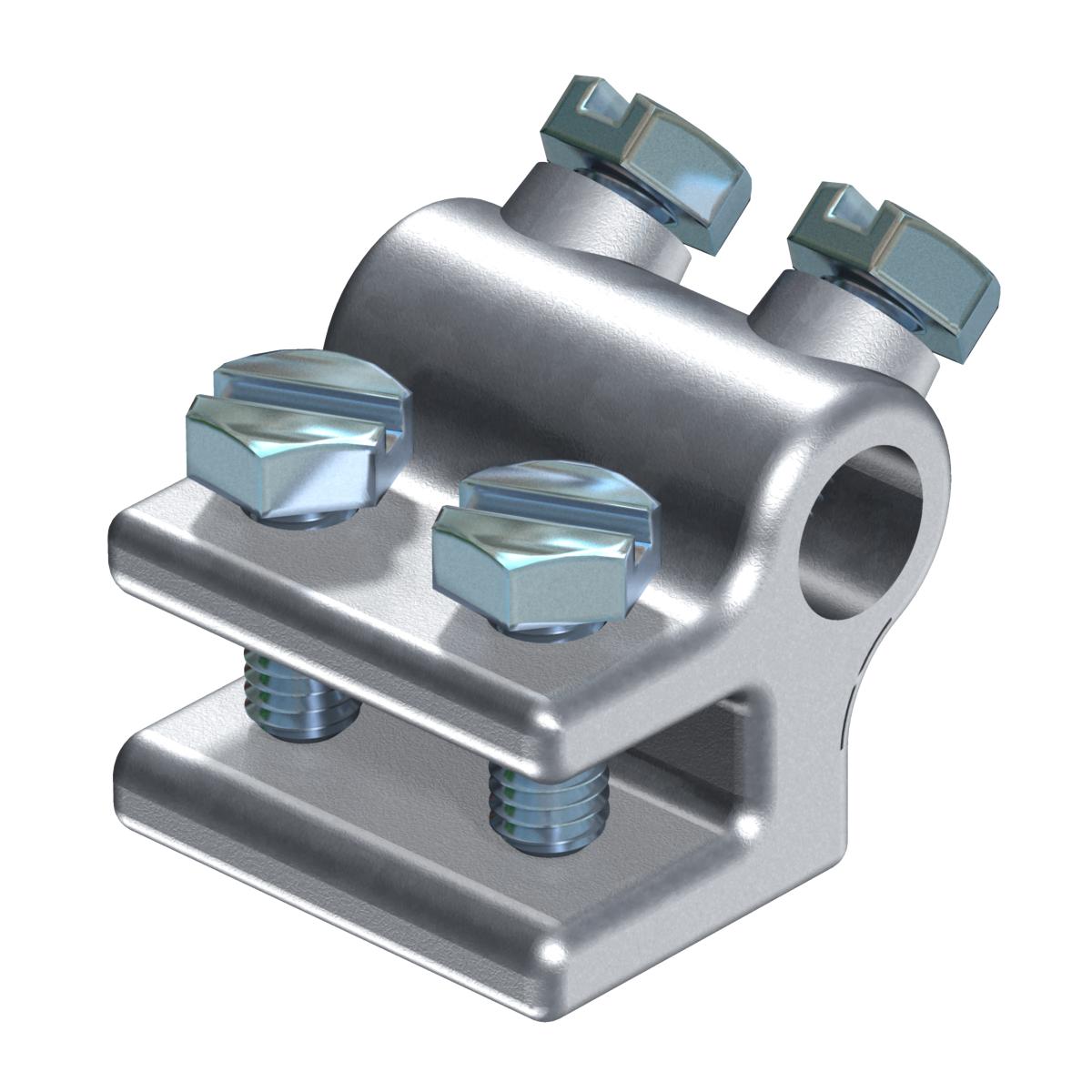

Connection terminal to 14 mm

Item no. 5318084 | EAN 4012195421030

cast steel
Product description

Product description

• Flange thickness to 8 and/or 14 mm
• With 4 hexagonal bolts M8
• Conforms to the requirements according to DIN V VDE V 0185-3, Section 4.5
  • Lightning current-tested
Technical data

Technical data

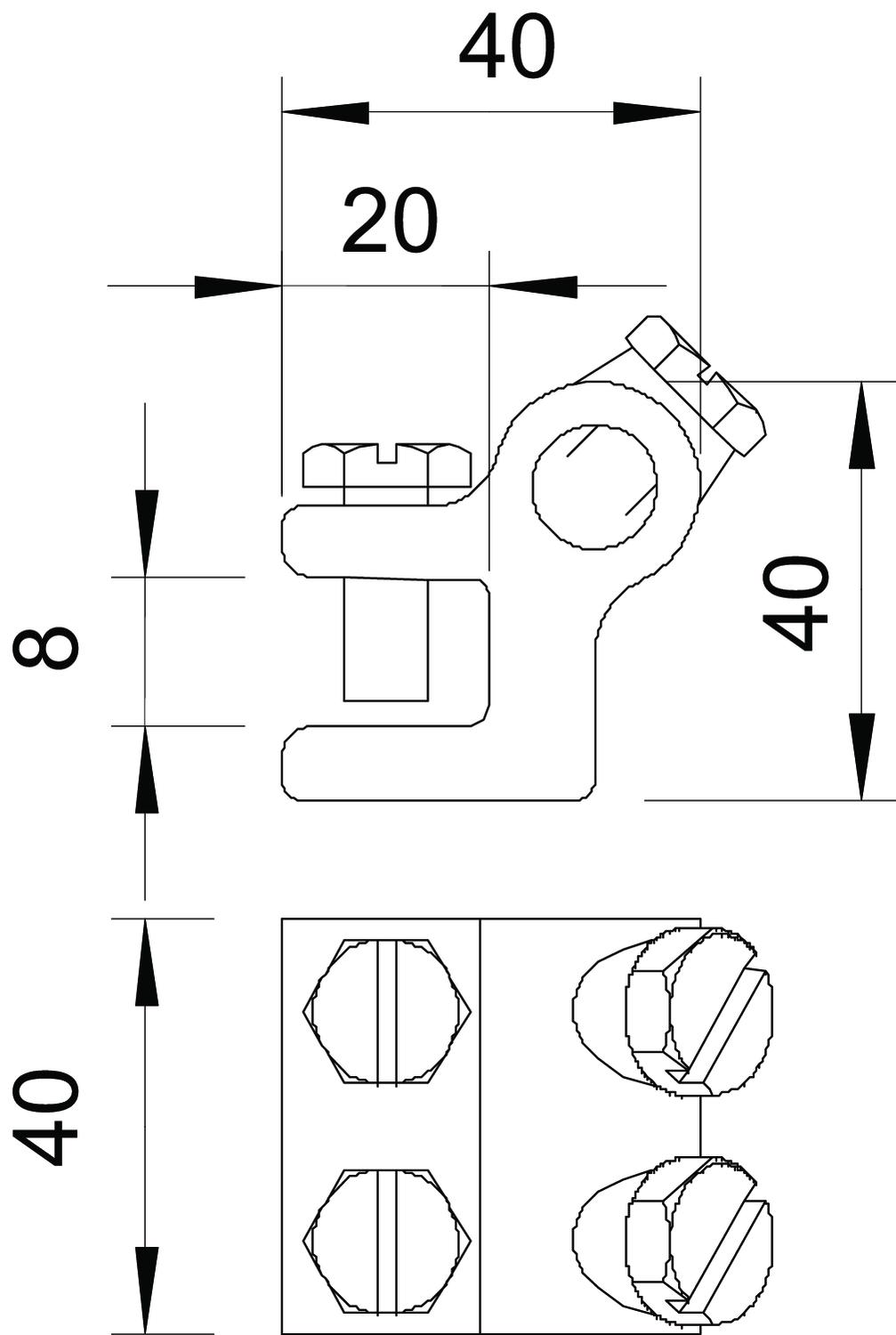

Clamping range, max. 8 mm
Dimension 8mm
Fit Rd 8-10 mm
Intermediate plate no
Lightning current carrying capacity N/50 kA
Material cast steel
Suitable for connection Round conductor Rd 8–10 / Rd 8–10
Surface Hot-dip galvanised
Type of connector Connection terminal
Type of fastening screw Hexagonal bolt
All types

All types

Types Material Item no. Quantity SSU
272 8 cast steel 5318084
20 piece
272 14 cast steel 5318149
20 piece
Downloads

Download

Download

REACH Declaration of conformity 272 8 / 5318084 , 0.12MB , pdf
RoHS Declaration of conformity 272 8 / 5318084 , 0.12MB , pdf

272 8 / 5318084
