Connection thread sealing ring, metric 60.1 | 50 | 2

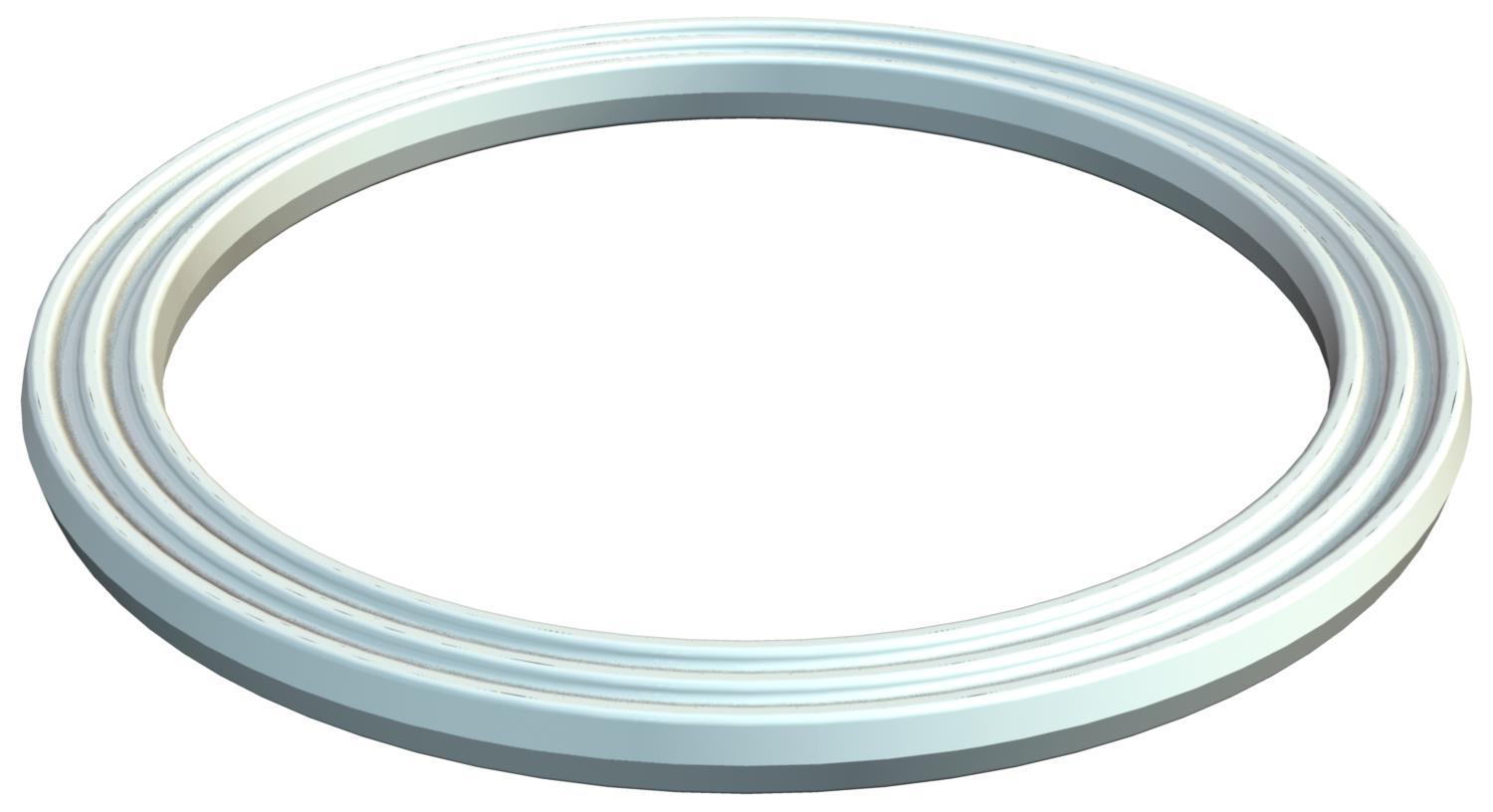

Connection thread sealing ring, metric

Item no. 2030028 | EAN 4012195376576

Item no. / Types

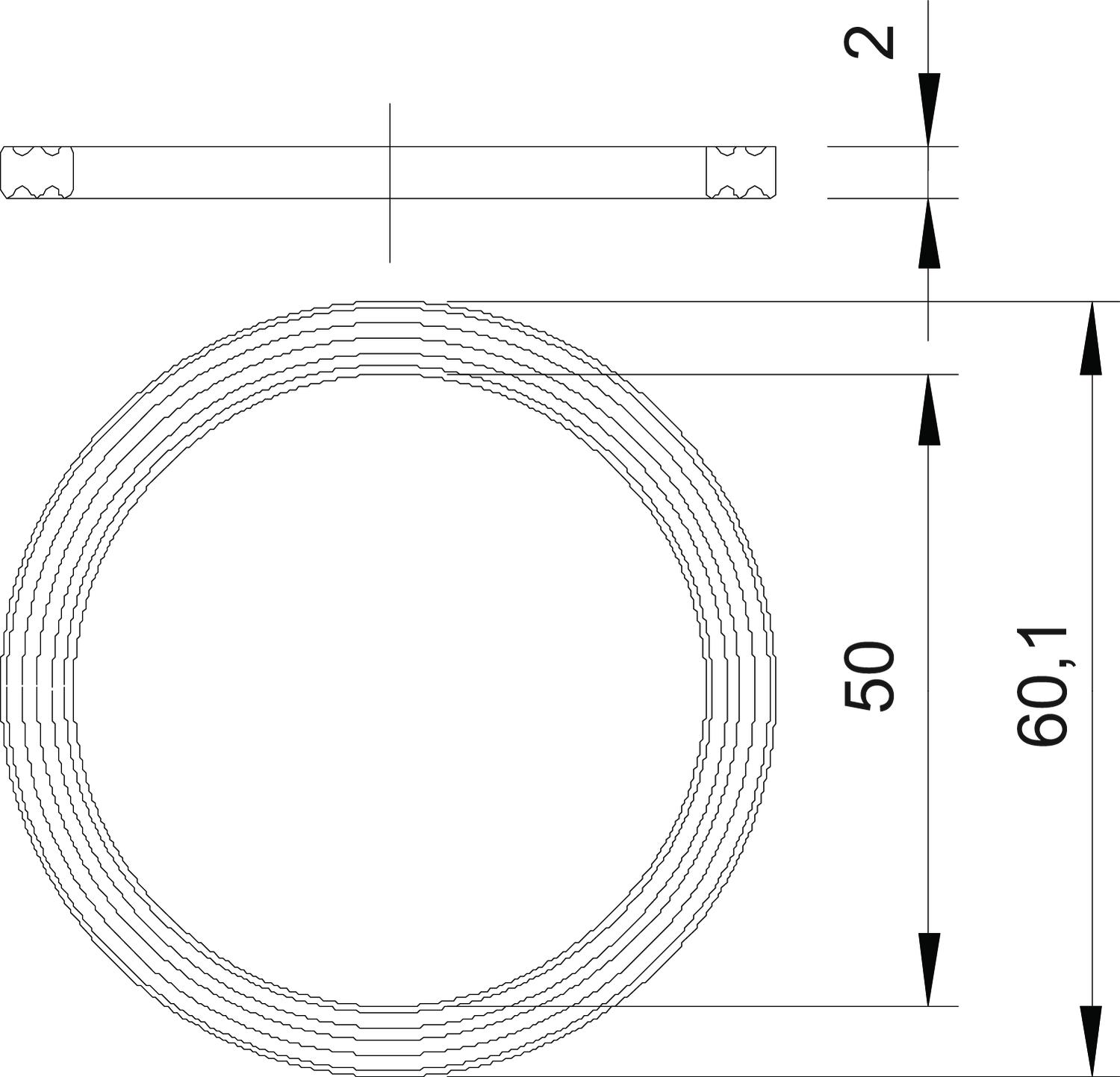

Dimension D1

Dimension D2

Dimension t

Product description

Product description

Connection thread sealing ring, suitable for all plastic cable glands, with metric thread according to DIN EN 60423 or ISO 68. The internal diameters of the sealing rings are designed in such a way that they can be pre-mounted in a captive manner.

Technical data

Technical data

Dimension	M50
Dimension D1	60,1 mm
Dimension D2	50 mm
Dimension t	2 mm
External diameter	60,1 mm

Inner diameter	50 mm
Material	Polyethylene
Suitable for metric thread dimension	50
Thickness	2 mm
Version for	Flat sealing ring

All types

All types

Types	Dimension D1	Dimension D2	Dimension t	Item no.	Quantity	SSU
107 F M12 PE	16.3 mm	12 mm	1 mm	2030004	piece	1000 piece
107 F M16 PE	20.9 mm	16 mm	1.1 mm	2030008	piece	100 piece
107 F M20 PE	25.1 mm	20 mm	1.1 mm	2030012	piece	100 piece
107 F M25 PE	31.3 mm	25 mm	1.4 mm	2030016	piece	100 piece
107 F M32 PE	37.6 mm	32 mm	1.7 mm	2030020	piece	100 piece
107 F M40 PE	49.1 mm	40 mm	1.7 mm	2030024	piece	100 piece
107 F M50 PE	60.1 mm	50 mm	2 mm	2030028	piece	100 piece
107 F M63 PE	73.8 mm	63 mm	2 mm	2030032	piece	100 piece
