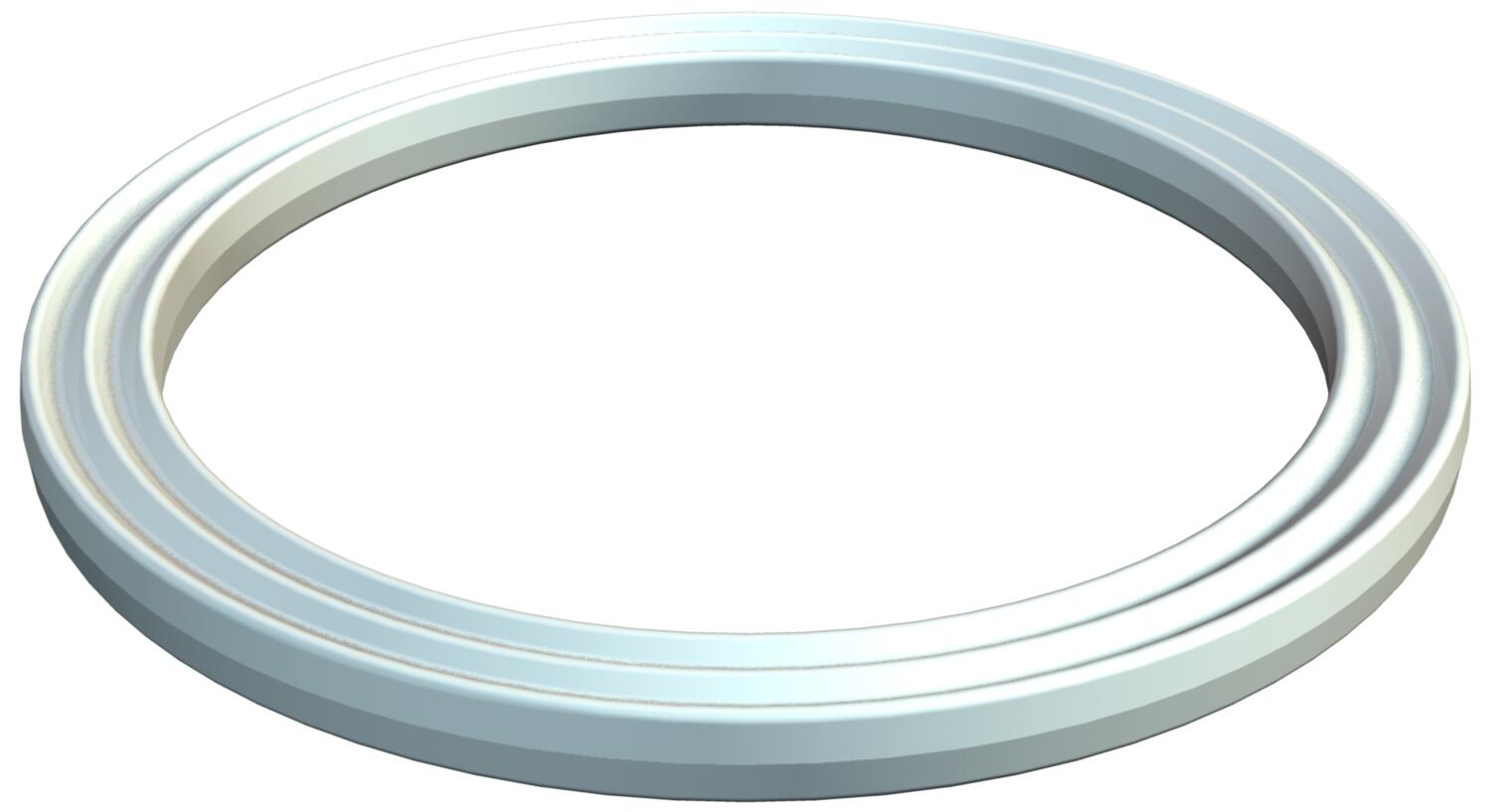

Connection thread sealing ring, PG

Item no. 2030071 | EAN 4012195168195

Product description

Product description

Connection thread sealing ring, in accordance with Part 9 to DIN 46320, however, dimensions may, according to material or function, deviate, suitable for all plastic cable glands with PG connection thread to DIN EN 40430, the internal diameter of the sealing rings are designed so that they can be captively pre-mounted.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

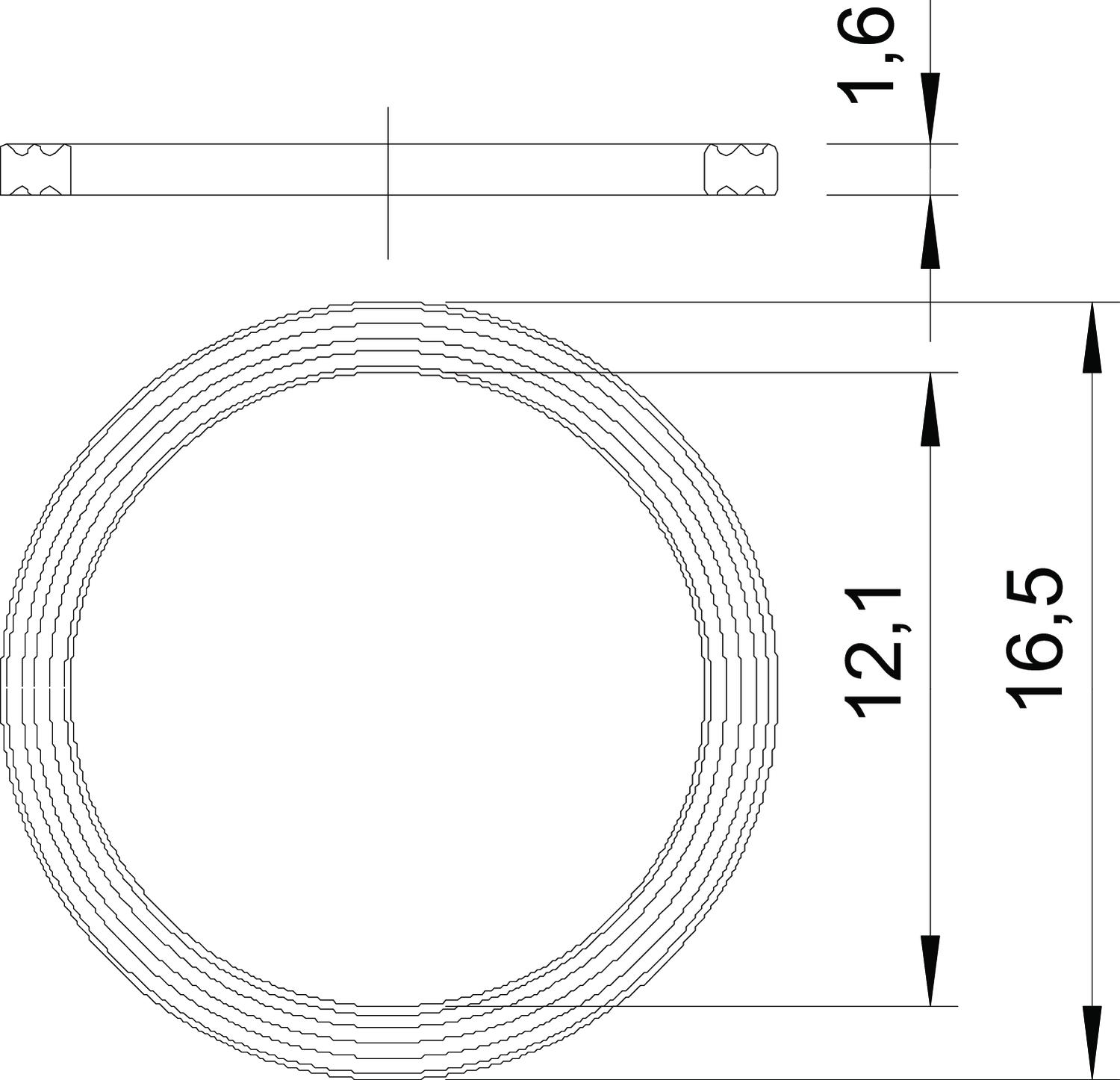

Dimension PG7
Dimension D1 16,5 mm
Dimension D2 12,1 mm
Dimension t 1,6 mm
External diameter 16,5 mm
Halogen-free yes
Inner diameter 12,1 mm
Material Polyethylene
Screw for PG thread dimension 7
Thickness 1,6 mm
Version for Flat sealing ring
All types

All types

Types Dimension D1 Dimension D2 Dimension t Item no. Quantity SSU
107 F PG7 PE 16.5 mm 12.1 mm 1.6 mm 2030071
100 piece
107 F PG9 PE 19 mm 14.7 mm 1.6 mm 2030098
100 piece
107 F PG11 PE 23 mm 18 mm 1.8 mm 2030101
100 piece
107 F PG13.5 PE 25 mm 19.8 mm 1.8 mm 2030136
100 piece
107 F PG16 PE 27 mm 21.8 mm 1.8 mm 2030160
100 piece
107 F PG21 PE 34 mm 27.5 mm 2.2 mm 2030217
100 piece
107 F PG29 PE 44 mm 36.2 mm 2.2 mm 2030292
100 piece
107 F PG36 PE 55.5 mm 46.2 mm 2.7 mm 2030365
100 piece
107 F PG48 PE 69.5 mm 58.5 mm 3.2 mm 2030489
100 piece
