- Product description
-
Product description

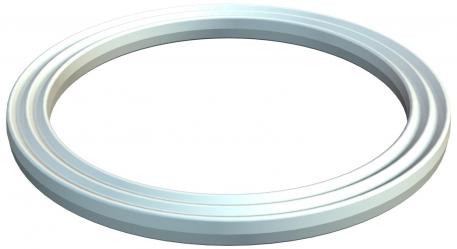

Connection thread sealing ring, in accordance with Part 9 to DIN 46320, however, dimensions may, according to material or function, deviate, suitable for all plastic cable glands with PG connection thread to DIN EN 40430, the internal diameter of the sealing rings are designed so that they can be captively pre-mounted.
- Technical data
-
Technical data

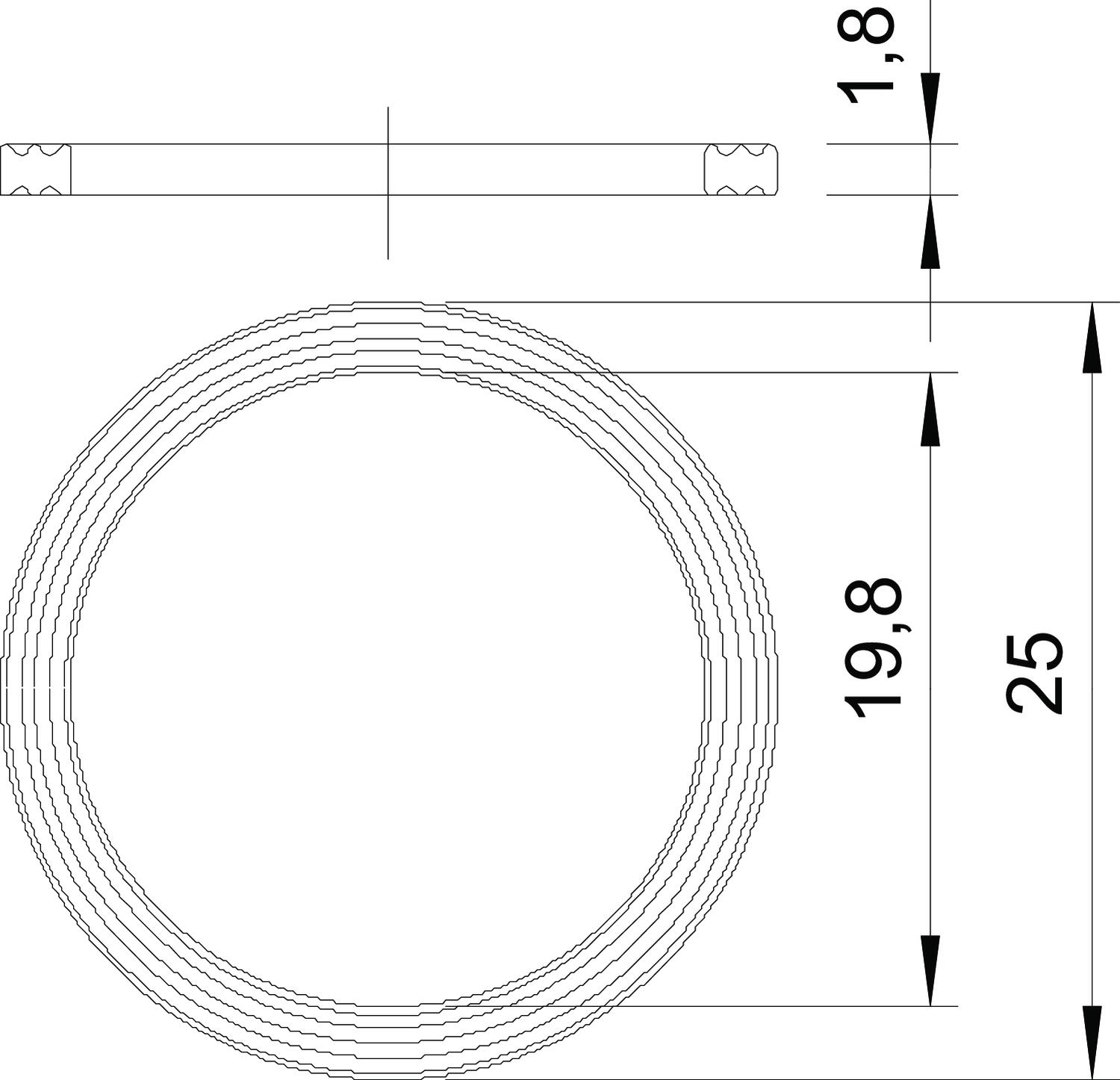

Dimension PG13,5 Dimension D1 25 mm Dimension D2 19,8 mm Dimension t 1,8 mm External diameter 25 mm Halogen-free yes Inner diameter 19,8 mm Material Polyethylene Screw for PG thread dimension 13,5 Thickness 1,8 mm Version for Flat sealing ring - All types
-
All types
- Downloads
-
Data sheet 107 F PG13.5 PE / 2030136 , 0.15MB , pdfREACH Declaration of conformity 107 F PG13.5 PE / 2030136 , 0.12MB , pdfRoHS Declaration of conformity 107 F PG13.5 PE / 2030136 , 0.12MB , pdf
