- Product description
-
Product description

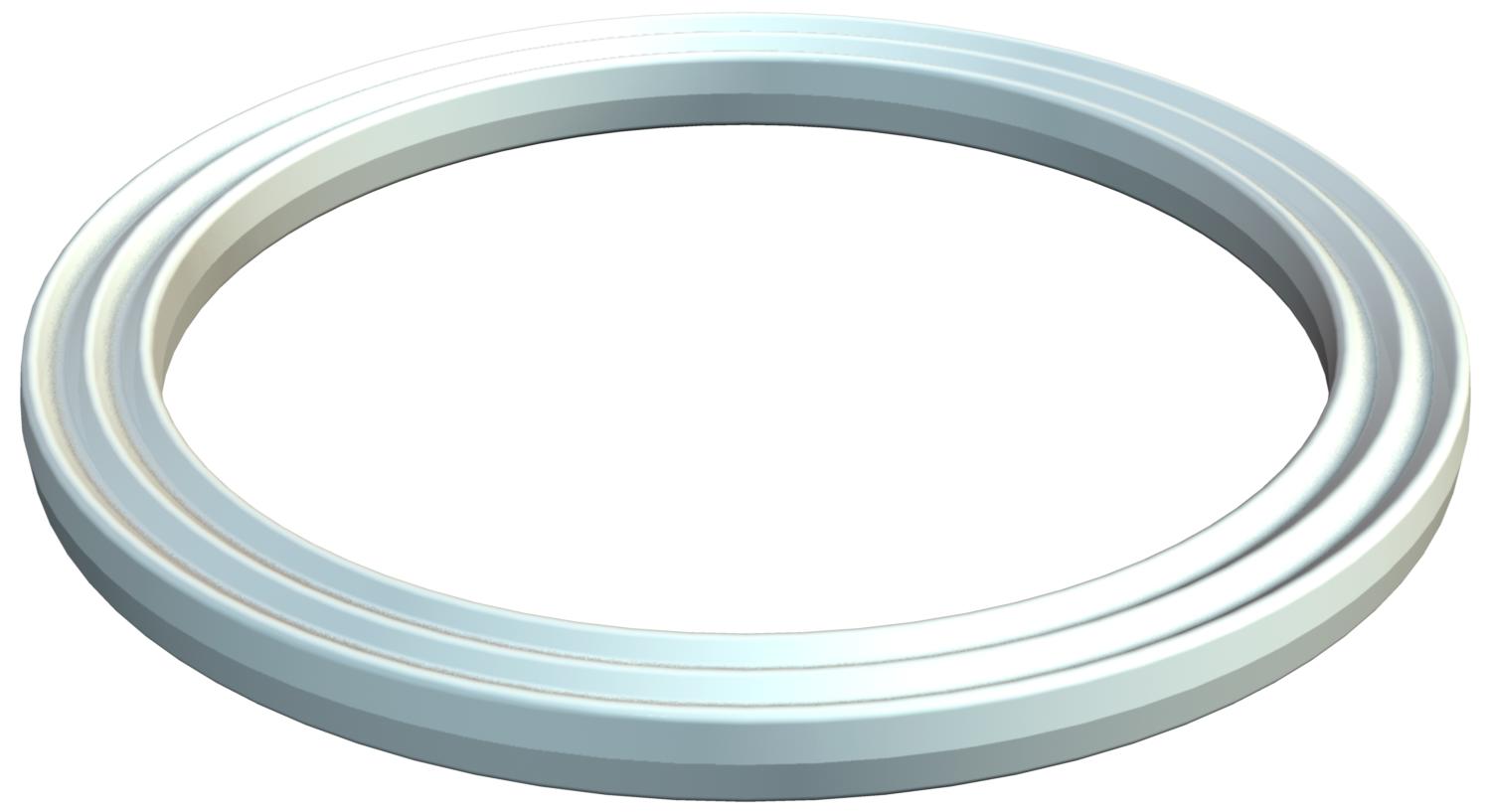

Connection thread sealing ring, in accordance with Part 9 to DIN 46320, however, dimensions may, according to material or function, deviate, suitable for all plastic cable glands with PG connection thread to DIN EN 40430, the internal diameter of the sealing rings are designed so that they can be captively pre-mounted.
- Technical data
-
Technical data

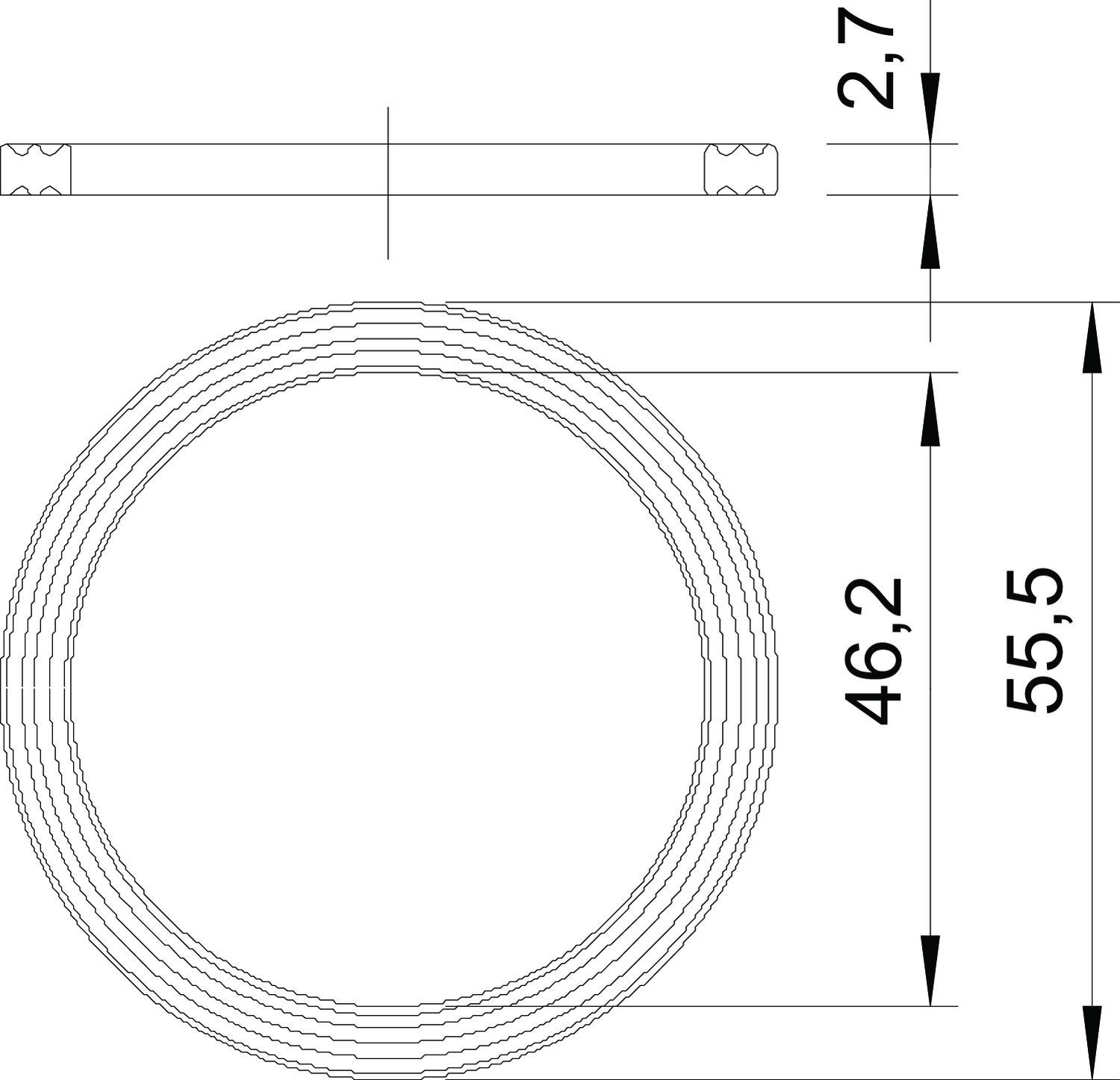

Dimension PG36 Dimension D1 55,5 mm Dimension D2 46,2 mm Dimension t 2,7 mm External diameter 55,5 mm Halogen-free yes Inner diameter 46,2 mm Material Polyethylene Screw for PG thread dimension 36 Thickness 2,7 mm Version for Flat sealing ring - All types
-
All types
- Downloads
-
Data sheet 107 F PG36 PE / 2030365 , 0.15MB , pdfREACH Declaration of conformity 107 F PG36 PE / 2030365 , 0.12MB , pdfRoHS Declaration of conformity 107 F PG36 PE / 2030365 , 0.12MB , pdf
