- Product description
-
Product description

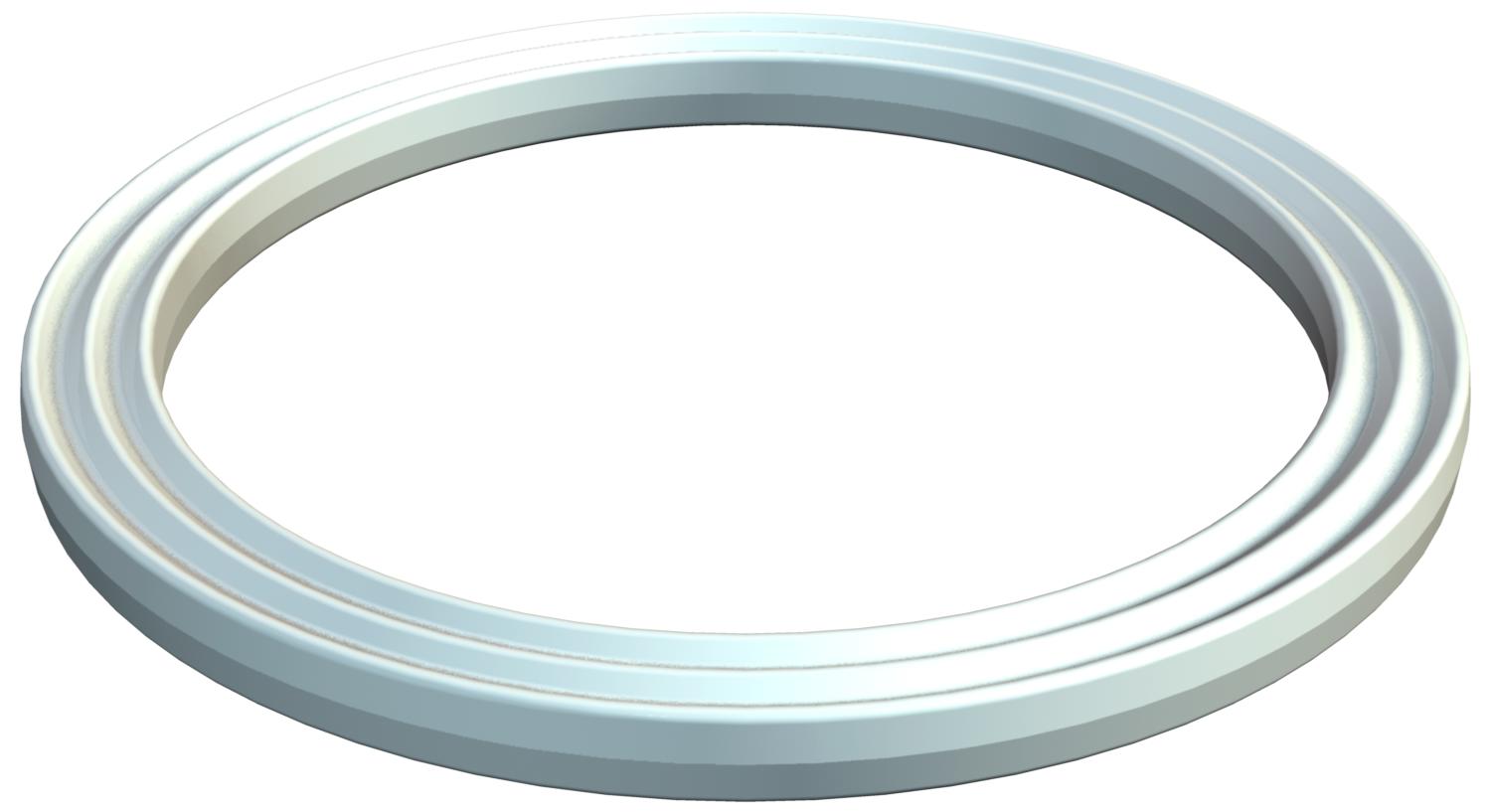

Connection thread sealing ring, in accordance with Part 9 to DIN 46320, however, dimensions may, according to material or function, deviate, suitable for all plastic cable glands with PG connection thread to DIN EN 40430, the internal diameter of the sealing rings are designed so that they can be captively pre-mounted.
- Technical data
-
Technical data

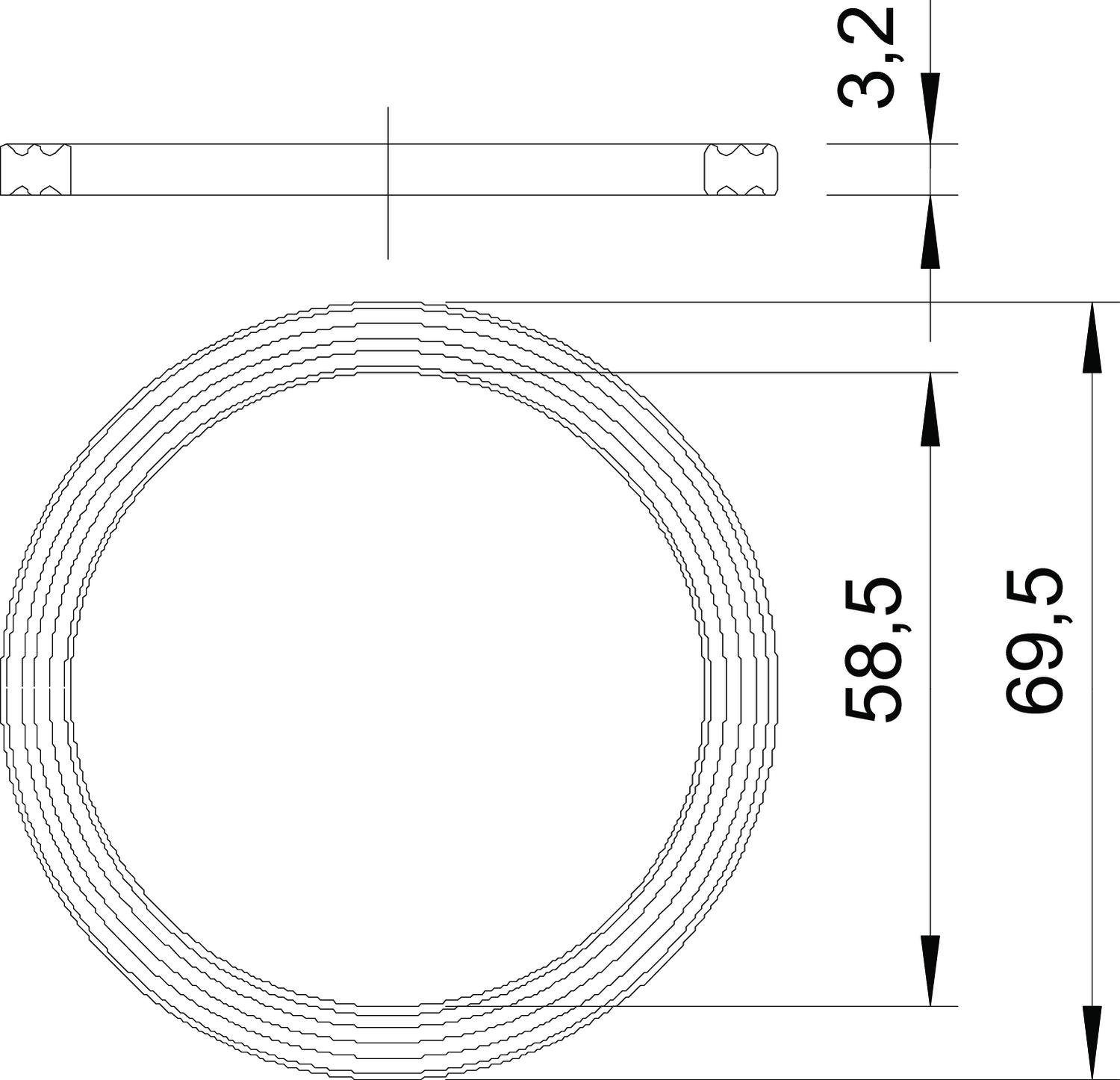

Dimension PG48 Dimension D1 69,5 mm Dimension D2 58,5 mm Dimension t 3,2 mm External diameter 69,5 mm Halogen-free yes Inner diameter 58,5 mm Material Polyethylene Screw for PG thread dimension 48 Thickness 3,2 mm Version for Flat sealing ring - All types
-
All types
- Downloads
-
Data sheet 107 F PG48 PE / 2030489 , 0.18MB , pdfREACH Declaration of conformity 107 F PG48 PE / 2030489 , 0.12MB , pdfRoHS Declaration of conformity 107 F PG48 PE / 2030489 , 0.12MB , pdf
